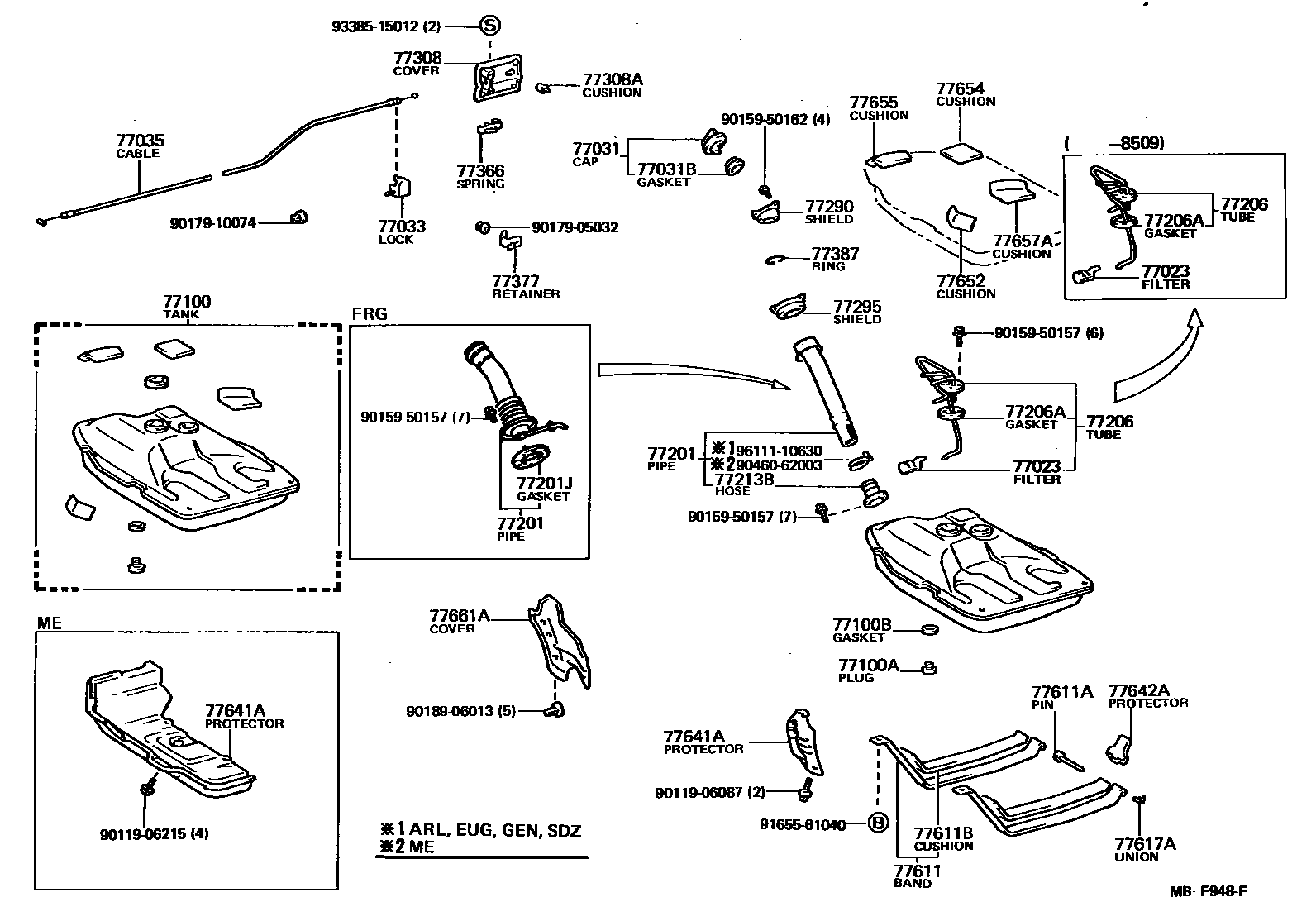

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAE86..SR¥920198305-198704

77031CAP ASSY, FUEL TANK

main77310-12100iAE86..SR;AE86..GT..(GEN,ME);AE86..GT..(EUG,SDZ)¥2,320198305-198707

main77310-16010iAE86..FRG¥2,820198505-198704

sub77310-16011¥2,790

main77310-16010iAE86..SDZ;AE86..2D..EUG¥2,820198504-198505

FRG SPEC

sub77310-16011¥2,790

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAE86..SR;AE86..GT..(GEN,ME);AE86..GT..(EUG,SDZ)¥310198305-198707

main77316-16010iAE86..SDZ;AE86..2D..EUG¥660198504-198505

FRG SPEC

main77316-16010iAE86..FRG¥660198505-198704

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iAE86..ARL,GEN,ME¥1,350198305-198707

sub77037-90K00¥1,610

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12090iAE86..RHD..(ARL,GEN)¥2,000198305-198704

sub77035-22090¥1,870

main77035-12110iAE86..LHD..(GEN,ME)¥2,260198305-198707

sub64607-14170¥2,160

77100TANK ASSY, FUEL

main77001-19295iAE86..GT..GEN¥38,100198308-198408

main77001-19305iAE86..SR..(ARL,GEN)¥38,100198305-198704

main77001-19335iAE86..GT..(GEN,ME);AE86..GT..(EUG,SDZ)¥38,100198308-198707

main77001-19355iAE86..SR..(EUR,GEN)¥37,600198308-198510

main77001-19395iAE86..FRG¥38,100198505-198704

main77001-19395iAE86..SDZ;AE86..2D..EUG¥38,100198504-198505

FRG SPEC

77100APLUG(FOR FUEL TANK)

main90341-20004iAE86¥360198305-198707

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE86¥220198305-198707

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12290iAE86..ME¥10,600198308-198707

main77201-12310iAE86..FRG¥21,600198505-198704

main77201-12310iAE86..SDZ;AE86..2D..EUG¥21,600198504-198505

FRG SPEC

main77201-16060iAE86..SR;AE86..GT..GEN;AE86..GT..(EUG,SDZ)¥10,500198305-198704

sub77201-12290¥10,600

77201JGASKET(FOR FUEL TANK INLET PIPE)

main77169-14010iAE86..FRG¥230198505-198704

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-12210iAE86..SR¥6,600198305-198408

sub77017-12240¥6,600

main77017-12240iAE86..SR..(EUR,GEN)¥6,600198408-198509

sub77017-16080¥6,200

main77017-12260iAE86..SR¥7,900198509-198610

sub77017-12380¥7,900

main77017-12380iAE86..SR¥7,900198610-198704

main77017-16040iAE86..ARL198408-198505

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77178-10010iAE86..SR¥640198305-198704

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-14090iAE86..SR;AE86..GT..(GEN,ME);AE86..GT..(EUG,SDZ)¥11,000198305-198704

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-12010iAE86¥1,490198305-198707

main77290-12030iAE86..FRG¥1,630198505-198704

77295SHIELD, FUEL FILLER PIPE

main77293-12020iAE86¥1,260198305-198707

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-12050iAE86..GT..EUR;AE86..SR..(EUR,GEN)¥5,500198305-198704

W/O OPENER

main77350-12100iAE86..ARL,GEN,ME¥6,300198305-198707

W/OPENER

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08009iAE86¥190198305-198707

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAE86¥260198305-198707

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iAE86..ARL,GEN,ME¥930198305-198707

77387RING, FUEL INLET BOX

main77391-16010iAE86¥310198305-198707

77611BAND, FUEL TANK

main77601-12030iAE86..GEN¥2,760198305-198704

RH

sub77601-16040¥2,740

main77601-12070iAE86..ARL,EUR¥2,620198305-198704

RH

main77601-16050iAE86..ME¥2,740198308-198707

RH

main77602-12030iAE86..ARL,EUR,ME¥2,710198305-198312

LH

sub77602-16040¥2,740

main77602-12040iAE86..GEN¥2,710198305-198704

LH

sub77602-16040¥2,740

main77602-16040iAE86..ARL,EUR¥2,740198312-198707

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020iAE86¥250198305-198707

77611BCUSHION, FUEL TANK, NO.4

main77654-12021iAE86¥750198305-198707

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iAE86¥110198305-198707

77641APROTECTOR, FUEL TANK, NO.1

main77641-12130iAE86..ARL,EUR¥2,050198305-198704

main77641-16030iAE86..ME¥7,200198308-198707

77642APROTECTOR, FUEL TANK, NO.2

main77642-12010iAE86¥520198305-198707

77652CUSHION, FUEL TANK, NO.1

main77651-16050iAE86¥1,180198305-198406

main77655-12021iAE86¥1,480198406-198707

77654CUSHION, FUEL TANK, NO.2

main77652-12041iAE86¥1,840198305-198707

77655CUSHION, FUEL TANK, NO.3

main77653-12031iAE86¥790198305-198707

77657ACUSHION, FUEL TANK, NO.5

main77655-12021iAE86¥1,480198305-198707

77661ACOVER, FUEL TANK FILLER HOSE

main77661-12030iAE86..ME¥2,370198305-198707

main77661-12040iAE86..EUR,GEN¥2,390198505-198704

9011906087

main90119-06087¥180

9011906215

main90119-06215¥120

9015950157

main90159-50157¥120

9015950162

main90159-50162¥120

9017905032

main90179-05032¥120

9017910074

main90179-10074¥110

9018906013

main90189-06013¥70

9046062003

main90460-62003¥410

9165561040

main91655-61040¥210

9338515012

main93385-15012¥160

9611110630

main96111-10630¥230

42 parts on this diagram · 4 diagrams in section
