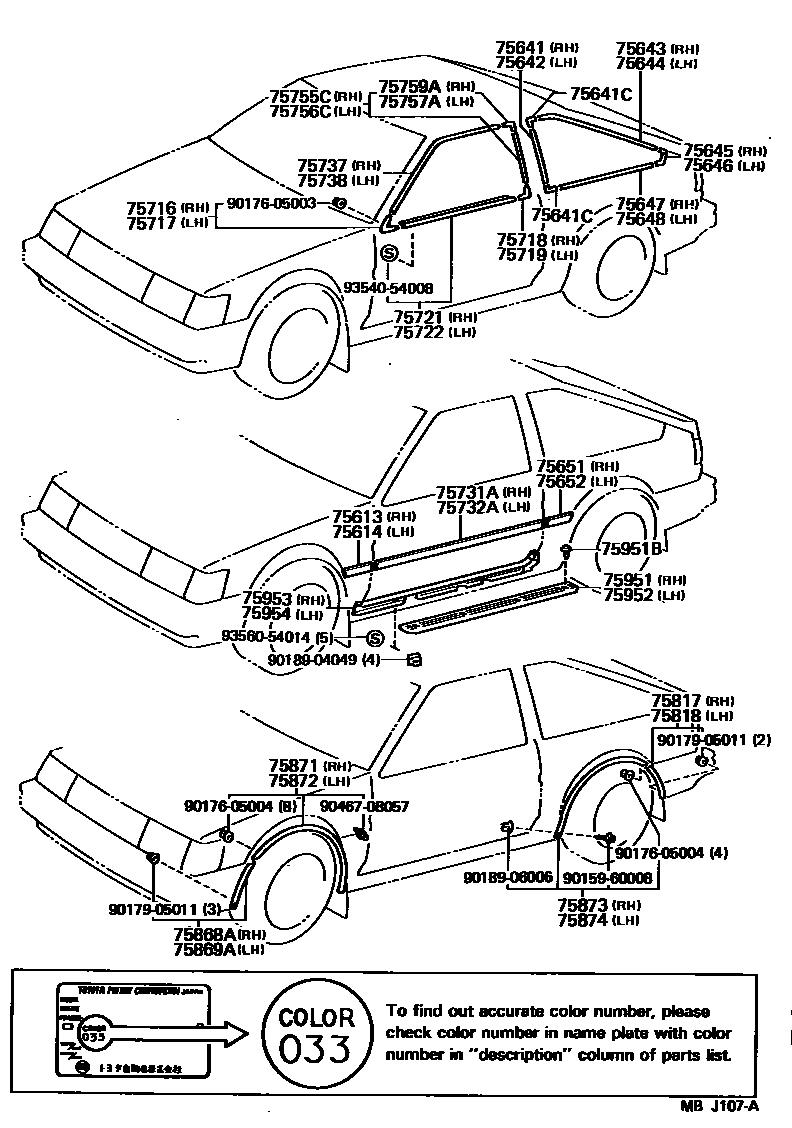

SIDE MOULDING
75613MOULDING, FRONT FENDER, OUTSIDE RH
BLACK,BLACK,041 ,3E6 ,148 ,159 ,204 ,3C7
BLACK,BLACK,164 ,202 ,3G9 ,8D7
BLACK,BLACK,8C7 ,2T6 ,8D8
SILVER-M,SILVER METALLIC,2W9 ,23D
BLUE-M,BLUE METALLIC,2X5
75614MOULDING, FRONT FENDER, OUTSIDE LH
BLACK,BLACK,041 ,3E6 ,148 ,159 ,204 ,3C7
BLACK,BLACK,8C7 ,2T6 ,8D8
BLACK,BLACK,164 ,202 ,3G9 ,8D7
SILVER-M,SILVER METALLIC,2W9 ,23D
BLUE-M,BLUE METALLIC,2X5
75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH
75641CJOINT, QUARTER WINDOW MOULDING
RH,UPPER
RH,UPPER
LH,UPPER
LH,UPPER
RH,LOWER
RH,LOWER
LH,LOWER
LH,LOWER
75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH
75643MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH
75644MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH
75645MOULDING, QUARTER WINDOW, OUTSIDE REAR RH
75646MOULDING, QUARTER WINDOW, OUTSIDE REAR LH
75647MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH
75648MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH
75651MOULDING, QUARTER, OUTSIDE RH
BLACK,BLACK,041 ,3E6 ,148 ,159 ,204 ,3C7
BLACK,BLACK,8C7 ,2T6 ,8D8
BLACK,BLACK,164 ,202 ,3G9 ,8D7
RED,RED,2T6
SILVER-M,GRAY,2M8 ,2P2
SILVER-M,SILVER METALLIC,2W9 ,23D
BLUE-M,BLUE METALLIC,2X5
75652MOULDING, QUARTER, OUTSIDE LH
BLACK,BLACK,041 ,3E6 ,148 ,159 ,204 ,3C7
BLACK,BLACK,164 ,202 ,3G9 ,8D7
BLACK,BLACK,8C7 ,2T6 ,8D8
RED,RED,2T6
SILVER-M,GRAY,2M8 ,2P2
SILVER-M,SILVER METALLIC,2W9 ,23D
BLUE-M,BLUE METALLIC,2X5
75716COVER, FRONT DOOR BELT MOULDING END, FRONT RH
75717COVER, FRONT DOOR BELT MOULDING END, FRONT LH
75718COVER, FRONT DOOR BELT MOULDING END, REAR RH
75719COVER, FRONT DOOR BELT MOULDING END, REAR LH
75721MOULDING, FRONT DOOR BELT, RH
75722MOULDING, FRONT DOOR BELT, LH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
BLACK,BLACK,8C7 ,2T6 ,8D8
BLACK,BLACK,041 ,3E6 ,148 ,159 ,204 ,3C7
BLACK,BLACK,164 ,202 ,3G9 ,8D7
SILVER-M,SILVER METALLIC,2W9 ,23D
BLUE-M,BLUE METALLIC,2X5
75732AMOULDING, FRONT DOOR, OUTSIDE LH
BLACK,BLACK,164 ,202 ,3G9 ,8D7
BLACK,BLACK,041 ,3E6 ,148 ,159 ,204 ,3C7
BLACK,BLACK,8C7 ,2T6 ,8D8
SILVER-M,SILVER METALLIC,2W9 ,23D
BLUE-M,BLUE METALLIC,2X5
75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75757ACOVER, FRONT DOOR WINDOW FRAME MOULDING JOINT, REAR LH
75759ACOVER, FRONT DOOR WINDOW FRAME MOULDING JOINT, REAR RH
75817MOULDING, QUARTER WHEEL OPENING, NO.2 RH
75818MOULDING, QUARTER WHEEL OPENING, NO.2 LH
75868AMOULDING, FRONT FENDER WHEEL OPENING, NO.2 RH
75869AMOULDING, FRONT FENDER WHEEL OPENING, NO.2 LH
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
W/SIDE MUDGUARD
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
W/SIDE MUDGUARD
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
75951BCLIP (FOR DOOR SCUFF PLATE)
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
75953PLATE, FRONT DOOR SCUFF, INSIDE RH
75954PLATE, FRONT DOOR SCUFF, INSIDE LH
9015960008
main90159-60008
9017605003
main90176-05003
9017605004
main90176-05004
9017905011
main90179-05011
9018904049
main90189-04049
9018906006
main90189-06006
9046708057
main90467-08057
9354054008
main93540-54008
9356054014
main93560-54014
49 parts on this diagram · 2 diagrams in section
