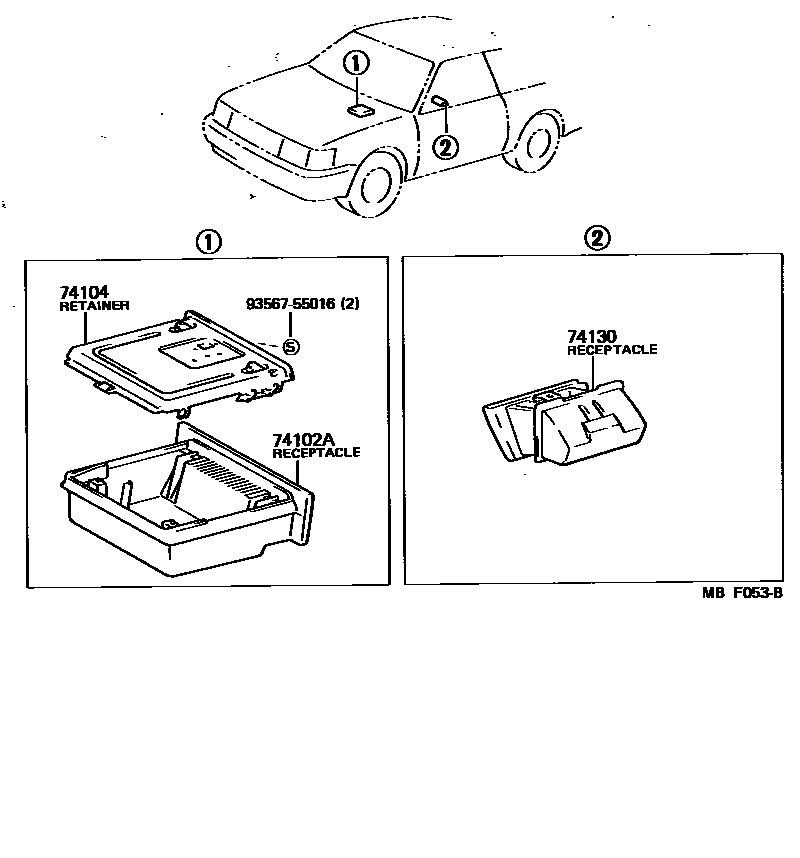

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-12180iAE86198305-198505

sub74102-12181

main74102-12181iAE86198505-198707

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-12160iAE86198305-198707

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-01iAE86198505-198707

BLACK,BLACK,TRIM2#

sub74109-20080

sub74130-12040

main74130-12040-14iAE86198305-198707

BLUE,BLUE,TRIM8#

sub74109-20080

sub74130-12040

main74130-12040-22iAE86198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub74109-20080

sub74130-12040

9356755016

main93567-55016

4 parts on this diagram · 1 diagram in section
