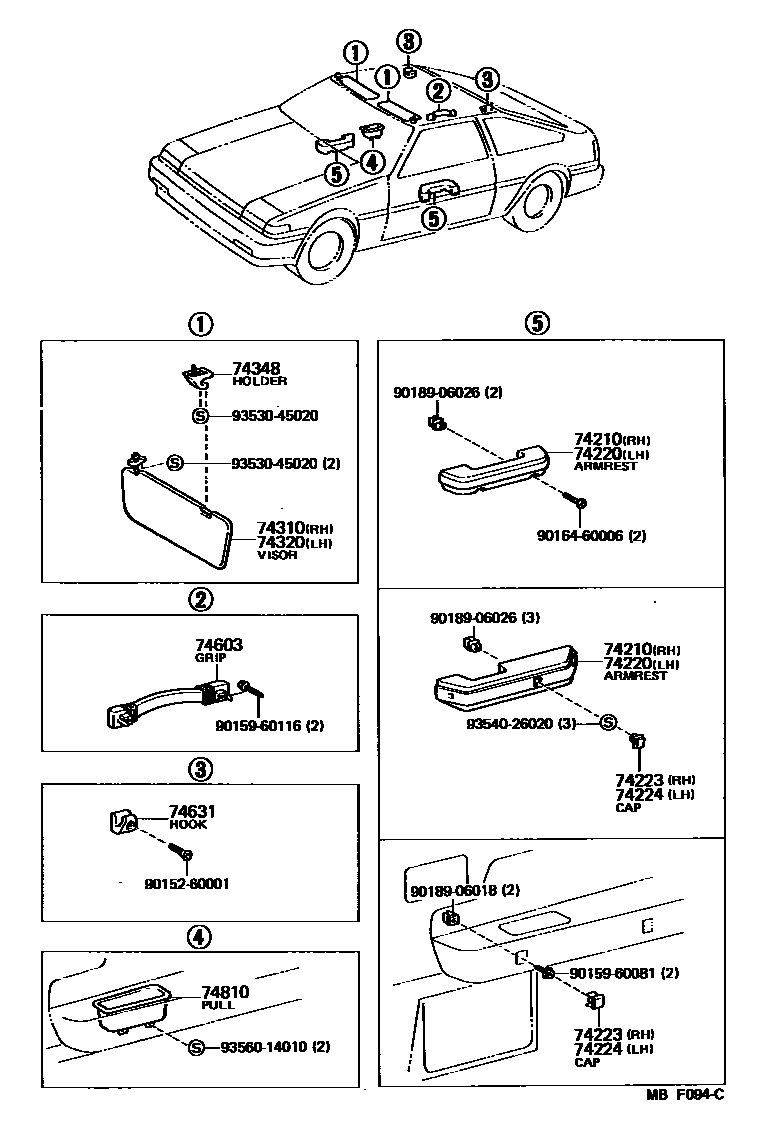

ARMREST & VISOR

0001 1 0002 1

74210ARMREST ASSY, FRONT, RH

main74210-12070-01iAE86..SR198505-198704

BLACK,BLACK,TRIM2#

main74210-12070-02iAE86..ARL,EUR198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74210-12070-04iAE86..ARL,EUR198305-198704

BLUE,BLUE,TRIM8#

main74210-12120-01iAE86..GT198505-198707

BLACK,BLACK,TRIM2#

main74210-12120-04iAE86..GT198505-198707

BLUE,BLUE,TRIM8#

main74250-14030-02iAE86..SR..GEN198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub74210-12110

sub74250-14030

main74250-14030-04iAE86..SR..GEN198305-198505

BLUE,BLUE,TRIM8#

sub74210-12110

sub74250-14030

74220ARMREST ASSY, FRONT, LH

main74220-12030-01iAE86..SR198505-198704

BLACK,BLACK,TRIM2#

main74220-12030-02iAE86..ARL,EUR198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74220-12030-04iAE86..ARL,EUR198305-198704

BLUE,BLUE,TRIM8#

main74220-12060-01iAE86..GT198505-198707

BLACK,BLACK,TRIM2#

main74220-12060-04iAE86..GT198505-198707

BLUE,BLUE,TRIM8#

main74250-14030-02iAE86..SR..GEN198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub74210-12110

sub74250-14030

main74250-14030-04iAE86..SR..GEN198305-198505

BLUE,BLUE,TRIM8#

sub74210-12110

sub74250-14030

74223CAP, DOOR ARMREST, RH

main74223-12040-02iAE86..GT198308-198505

W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3#

sub74223-12040

main74223-12040-04iAE86..GT198308-198505

W/MOULDING TRIM,BLUE,BLUE,TRIM8#

sub74223-12040

main74223-12050-01iAE86..SR198505-198704

BLACK,BLACK,TRIM2#

sub74223-12050

main74223-12050-02iAE86..ARL,EUR198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub74223-12050

main74223-12050-04iAE86..ARL,EUR198305-198704

BLUE,BLUE,TRIM8#

sub74223-12050

main74223-12060-01iAE86..GT198505-198707

BLACK,BLACK,TRIM2#

main74223-12060-04iAE86..GT198505-198707

BLUE,BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74223-12040-02iAE86..GT198308-198505

W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3#

sub74223-12040

main74223-12040-04iAE86..GT198308-198505

W/MOUDING TRIM,BLUE,BLUE,TRIM8#

sub74223-12040

main74223-12050-01iAE86..SR198505-198704

BLACK,BLACK,TRIM2#

sub74223-12050

main74223-12050-02iAE86..ARL,EUR198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub74223-12050

main74223-12050-04iAE86..ARL,EUR198305-198704

BLUE,BLUE,TRIM8#

sub74223-12050

main74223-12060-01iAE86..GT198505-198707

BLACK,BLACK,TRIM2#

main74223-12060-04iAE86..GT198505-198707

BLUE,BLUE,TRIM8#

74310VISOR ASSY, RH

main74310-12310iAE86..RHD..GEN198305-198505

IVORY

sub74310-12320

main74310-12330iAE86..LHD..SR;AE86..GT..SDZ;AE86..LHD..GT..(GEN,ME)198305-198505

IVORY

sub74310-12350

main74310-12340iAE86..ARL198305-198505

IVORY

main74310-12350iAE86..LHD..EUG198308-198505

IVORY

main74310-12360iAE86..RHD..EUG198308-198505

IVORY

sub74310-12350

main74310-12540-08iAE86..RHD..GEN198505

IVORY,IVORY

sub74310-12540

main74310-12550-08iAE86..FRG198505-198704

SWITZERLAND SPEC,IVORY,IVORY

sub74310-12590

main74310-12550-08iAE86..SDZ;AE86..LHD..(GEN,ME)198505-198707

IVORY,IVORY

sub74310-12590

main74310-12560-08iAE86..LHD..(EUG,FRG)198505-198704

IVORY,IVORY

main74310-12580-08iAE86..RHD..EUG198505-198704

IVORY,IVORY

sub74310-12560

74320VISOR ASSY, LH

main74320-12260iAE86..LHD..SR;AE86..GT..SDZ;AE86..LHD..GT..(GEN,ME)198305-198505

IVORY

sub74320-12300

main74320-12290iAE86..ARL198305-198505

IVORY

main74320-12300iAE86..LHD..EUG198308-198505

IVORY

sub74320-12310

main74320-12310iAE86..RHD..EUG198305-198505

IVORY

main74320-12320iAE86..RHD..GEN198305-198505

IVORY

sub74320-12310

main74320-12420-08iAE86..FRG198505-198704

SWITZERLAND SPEC,IVORY,IVORY

sub74320-12430

main74320-12420-08iAE86..SDZ;AE86..LHD..(GEN,ME)198505-198707

IVORY,IVORY

sub74320-12430

main74320-12430-08iAE86..RHD..GEN198505-198704

IVORY,IVORY

sub74320-12430

main74320-12440-08iAE86..LHD..(EUG,FRG)198505-198704

IVORY,IVORY

sub74320-12450

main74320-12450-08iAE86..RHD..EUG198505-198704

IVORY,IVORY

74348HOLDER, VISOR

main74348-32010-01iAE86198305-198707

BLACK,BLACK,TRIM2#

sub74348-17010

sub74348-12020

sub74348-32010

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-14030-01iAE86198505-198707

BLACK,BLACK,TRIM2#

sub74610-14030

sub74610-12050

main74610-14030-02iAE86198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub74610-14030

sub74610-12050

main74610-14030-14iAE86198305-198707

BLUE,BLUE,TRIM8#

sub74610-14030

sub74610-12050

74631HOOK, COAT, A

main74631-12070-01iAE86198505-198707

BLACK,BLACK,TRIM2#

sub74631-12070

main74631-12070-02iAE86198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub74631-12070

main74631-12070-04iAE86198305-198707

BLUE,BLUE,TRIM8#

sub74631-12070

74810PULL ASSY, DOOR, INSIDE

main74266-12010-04iAE86..3D..GT198308-198505

RH,BLUE,BLUE,TRIM8#

main74266-12010-05iAE86..3D..GT198308-198505

RH,BEIGE,BEIGE,TRIM3#

main74267-12010-04iAE86..3D..GT198308-198505

LH,BLUE,BLUE,TRIM8#

main74267-12010-05iAE86..3D..GT198308-198505

LH,BEIGE,BEIGE,TRIM3#

9015260001

main90152-60001

9015960081

main90159-60081

9015960116

main90159-60116

9016460006

main90164-60006

9018906018

main90189-06018

9018906026

main90189-06026

9353045020

main93530-45020

9354026020

main93540-26020

9356014010

main93560-14010

19 parts on this diagram · 2 diagrams in section
