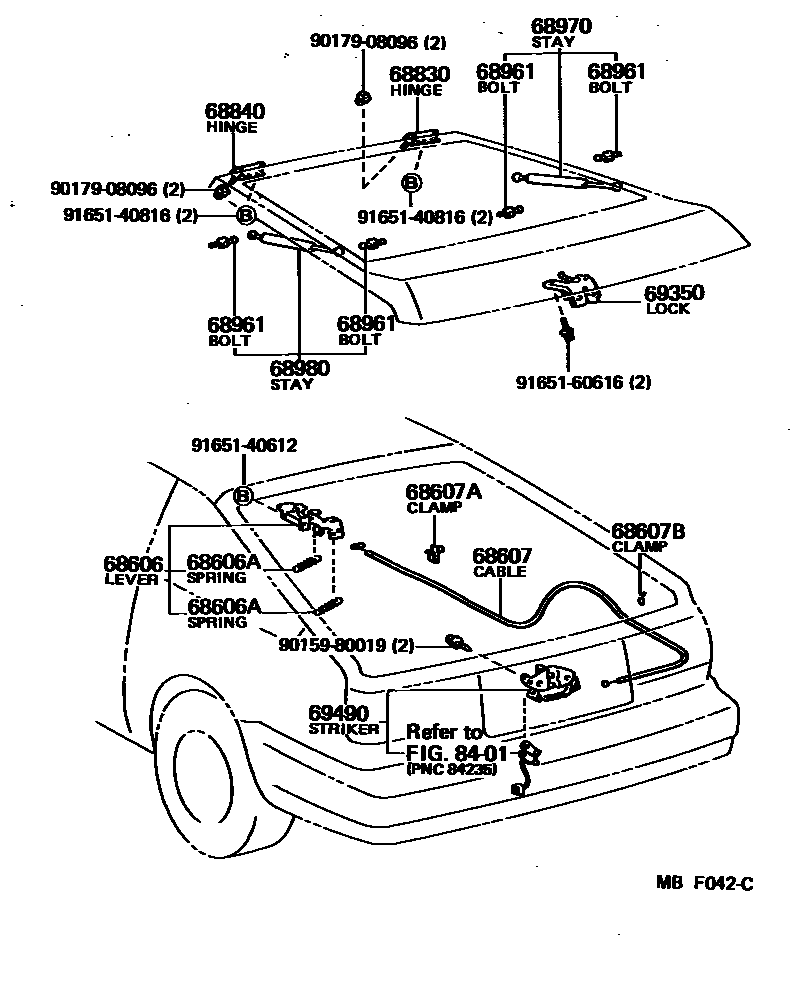

BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-12070iAE86..3D..LHD..(GEN,ME)¥4,550198305-198707

main64606-16030iAE86..3D..RHD..(ARL,GEN)¥4,590198305-198704

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004iAE86..3D..(GEN,ME)¥200198305-198707

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-12210iAE86..3D..RHD..(ARL,GEN)¥2,330198305-198704

main64607-12240iAE86..3D..LHD..(GEN,ME)¥2,600198305-198707

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main90467-12009iAE86..3D¥470198305-198707

68607BCLAMP, NO.2(FOR BACK DOOR LOCK CONTROL CABLE)

main90463-10338iAE86..3D..LHD..(GEN,ME)¥300198305-198707

main90464-00156iAE86..3D..RHD..(ARL,GEN)¥130198305-198704

68830HINGE ASSY, BACK DOOR, RH

main68801-20020iAE86..3D¥1,840198305-198707

sub68801-20021¥1,870

68840HINGE ASSY, BACK DOOR, LH

main68801-20020iAE86..3D¥1,840198305-198707

sub68801-20021¥1,870

68961BOLT, BACK DOOR STAY

main68961-14020iAE86..3D¥660198305-198409

sub68961-16010¥660

main68961-16010iAE86..3D¥660198409-198603

main68961-20051iAE86..3D¥430198603-198707

68970STAY ASSY, BACK DOOR, RH

main68950-19435iAE86..3D¥9,300198305-198707

main68950-19445iAE86..3D¥8,600198305-198707

W/RR WIPER

main68950-19455iAE86..GT..GEN;AE86..3D..(EUR,ME)¥9,300198308-198707

W/SPOILER

main68950-19465iAE86..GT..GEN;AE86..3D..(EUR,ME)¥9,400198308-198707

W/RR WIPER & SPOILER

68980STAY ASSY, BACK DOOR

main68950-19435iAE86..3D¥9,300198305-198707

main68950-19445iAE86..3D¥8,600198305-198707

W/RR WIPER

main68950-19455iAE86..GT..GEN;AE86..3D..(EUR,ME)¥9,300198308-198707

W/SPOILER

main68950-19465iAE86..GT..GEN;AE86..3D..(EUR,ME)¥9,400198308-198707

W/RR WIPER & SPOILER

69350LOCK ASSY, BACK DOOR

main69350-12040iAE86..3D¥6,300198305-198707

69490STRIKER ASSY, BACK DOOR LOCK

main69430-12090iAE86..3D..SR;AE86..3D..GT..EUR¥2,260198305-198704

W/O TRUNK OPENER

sub69430-12180¥2,960

main69430-12200iAE86..3D..(ARL,GEN,ME)¥3,000198305-198707

W/TRUNK OPENER

sub69430-12180¥2,960

8401

9015980019

main90159-80019¥100

9017908096

main90179-08096¥110

9165140612

main91651-40612¥70

9165140816

main91651-40816¥80

9165160616

main91651-60616¥100

18 parts on this diagram · 1 diagram in section
