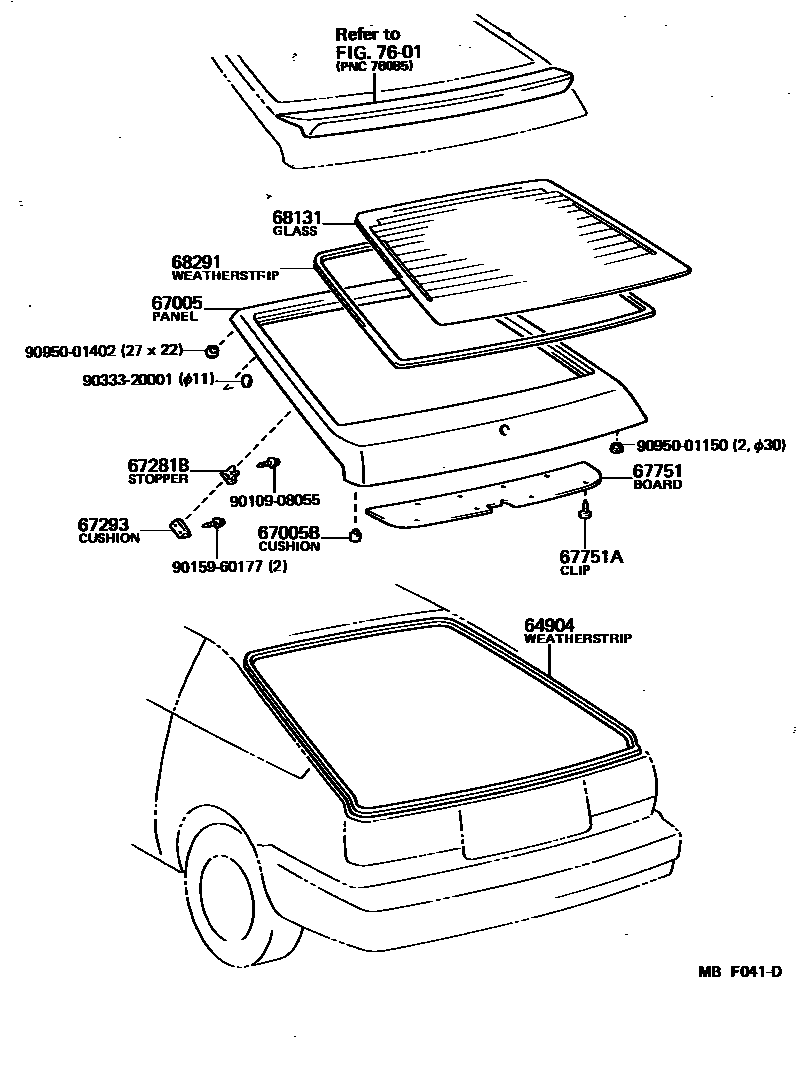

BACK DOOR PANEL & GLASS

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-12070iAE86..3D198305-198707

main67881-12150iAE86..3D198506-198508

sub67881-12070

67005PANEL SUB-ASSY, BACK DOOR

main67005-12330iAE86..3D198305-198605

W/RR WIPER

sub67005-12331

sub90950-01150

main67005-12331iAE86..3D..(GEN,ME)198605-198707

W/RR WIPER

sub67005-1A131

main67005-12340iAE86..3D..(EUR,GEN,ME)198305-198502

sub67005-12360

main67005-12350iAE86..3D..EUR198408-198605

W/RR WIPER

sub67005-12351

sub90950-01150

main67005-12351iAE86..3D..EUR198605-198707

W/RR WIPER

sub67005-1A131

main67005-12360iAE86..3D..EUR198408-198605

sub67005-12361

sub90950-01150

main67005-12361iAE86..3D198605-198707

sub67005-1A141

main67005-12600iAE86..GT..(GEN,ME)198308-198605

W/RR SPOILER & WIPER

sub67005-12601

sub90950-01150

main67005-12601iAE86..GT..(GEN,ME)198605-198707

W/RR SPOILER & WIPER

sub67005-12771

main67005-12610iAE86..GT..(GEN,ME)198308-198502

W/RR SPOILER

sub67005-12780

main67005-12770iAE86..3D..EUR198408-198605

W/RR SPOILER & WIPER

sub67005-12771

sub90950-01150

main67005-12771iAE86..3D..EUR198605-198707

W/RR SPOILER & WIPER

main67005-12780iAE86..3D..EUR198408-198605

W/RR SPOILER

sub67005-12781

sub90950-01150

main67005-12781iAE86..3D..GT198605-198707

W/RR SPOILER

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09032iAE86..3D198305-198707

67281BSTOPPER, BACK DOOR, LOWER

main67281-12010iAE86..3D198305-198707

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-12010iAE86..3D198305-198707

67751BOARD, BACK DOOR TRIM

main64781-12050-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub64781-12050

main64781-12050-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub64781-12050

main64781-12050-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub64781-12050

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07041-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

sub90467-07041

main90467-07041-02iAE86..3D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-07041

main90467-07041-04iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

sub90467-07041

68131GLASS, BACK DOOR

main68131-12140iAE86..3D198305-198707

*EHTT,T=4.0

main68131-12150iAE86..3D..LHD..(EUG,FRG)198308-198704

*EHTT,T=4.0,HEAVY-TYPE

main68131-12180iAE86..3D..(GEN,ME)198305-198408

*TT,T=4.0

sub68131-12140

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-12070iAE86..3D198305-198707

7601

9010908055

main90109-08055

9015960177

main90159-60177

9033320001

main90333-20001

9095001150

main90950-01150

9095001402

main90950-01402

15 parts on this diagram · 1 diagram in section
