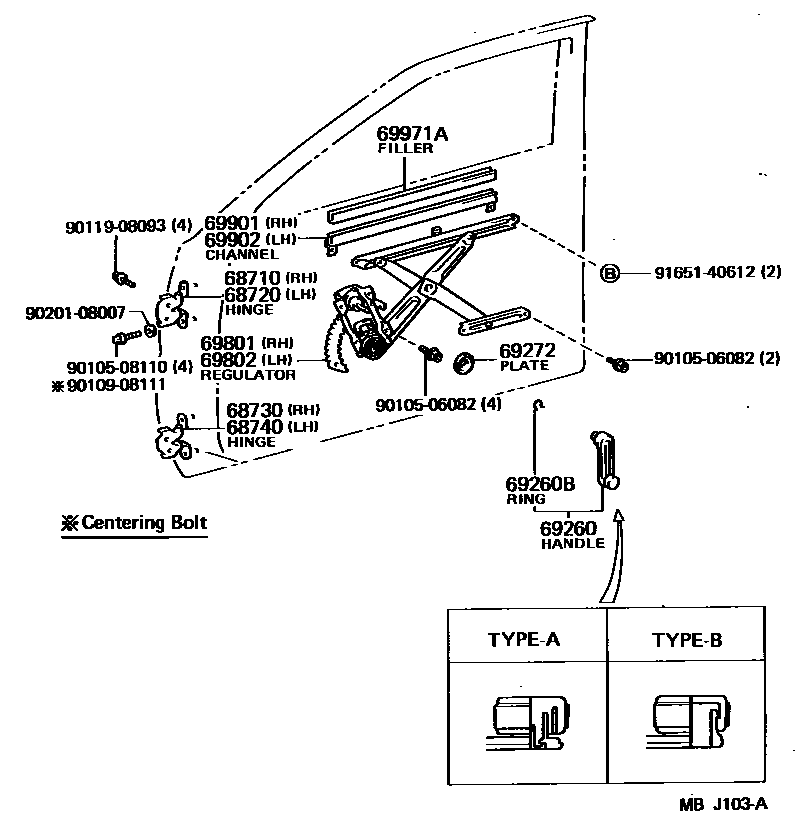

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-32010iAE86198305-198707

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-32010iAE86198305-198707

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32010iAE86198305-198707

sub68730-30090

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-32010iAE86198305-198707

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01iAE86..FRG198505-198704

SWITZERLAND SPEC,BLACK,BLACK,TRIM2#

sub69260-10040

sub69260-16010

main69260-10040-01iAE86..SDZ;AE86..GEN,ME198505-198707

BLACK,BLACK,TRIM2#

sub69260-10040

sub69260-16010

main69260-10040-44iAE86..SDZ;AE86..GEN,ME198505-198707

BLUE,BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-10040-44iAE86..FRG198505-198704

SWITZERLAND SPEC,BLUE,BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-12060-02iAE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME)198305-198505

TYPE B,DEEP MAROON,RED/MAROON,TRIM3#

sub69260-14020

main69260-12060-24iAE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME)198305-198505

TYPE B,BLUE,BLUE,TRIM8#

sub69260-14020

main69260-12070-02iAE86..EUG198308-198505

TYPE B,DEEP MAROON,RED/MAROON,TRIM3#

sub69260-14030

main69260-12070-24iAE86..EUG198308-198505

TYPE B,BLUE,BLUE,TRIM8#

sub69260-14030

main69260-14020-04iAE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME)198305-198505

TYPE A,BLUE,BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-12iAE86..SR;AE86..GT..SDZ;AE86..GT..(GEN,ME)198305-198505

TYPE A,DEEP MAROON,RED/MAROON,TRIM3#

sub69260-14020

sub69260-22030

main69260-14030-01iAE86..EUG,FRG198505-198704

BLACK,BLACK,TRIM2#

sub69260-14030

main69260-14030-04iAE86..EUG198308-198505

TYPE A,BLUE,BLUE,TRIM8#

sub69260-14030

main69260-14030-04iAE86..EUG,FRG198505-198704

BLUE,BLUE,TRIM8#

sub69260-14030

main69260-14030-12iAE86..EUG198308-198505

TYPE A,DEEP MAROON,RED/MAROON,TRIM3#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAE86198305-198707

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010iAE86198305-198707

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-12170iAE86198305-198707

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-12160iAE86198305-198707

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12120iAE86198305-198707

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12120iAE86198305-198707

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-22010iAE86198305-198707

sub69971-95110

9010506082

main90105-06082

9010508110

main90105-08110

9010908111

main90109-08111

9011908093

main90119-08093

9020108007

main90201-08007

9165140612

main91651-40612

18 parts on this diagram · 1 diagram in section
