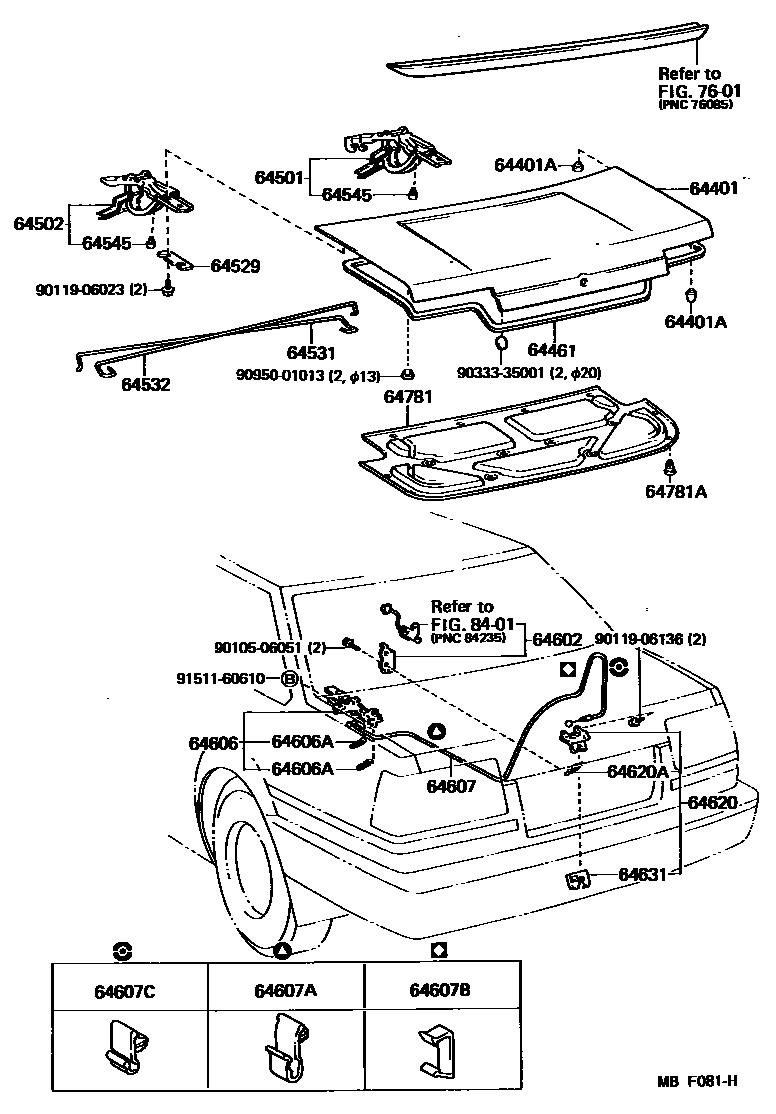

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
W/RR SPOILER
W/RR SPOILER
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
RR
64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
W/RR SPOILER
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
W/RR SPOILER
64545CUSHION, LUGGAGE DOOR HINGE
64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
sub64621-12070
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64607CCLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64631PROTECTOR, LUGGAGE DOOR LOCK
64781BOARD, BACK DOOR TRIM
64781ACLIP, BACK DOOR TRIM BOARD
7601
8401
9010506051
main90105-06051
9011906023
main90119-06023
9011906136
main90119-06136
9033335001
main90333-35001
9095001013
main90950-01013
9151160610
main91511-60610
29 parts on this diagram · 1 diagram in section
