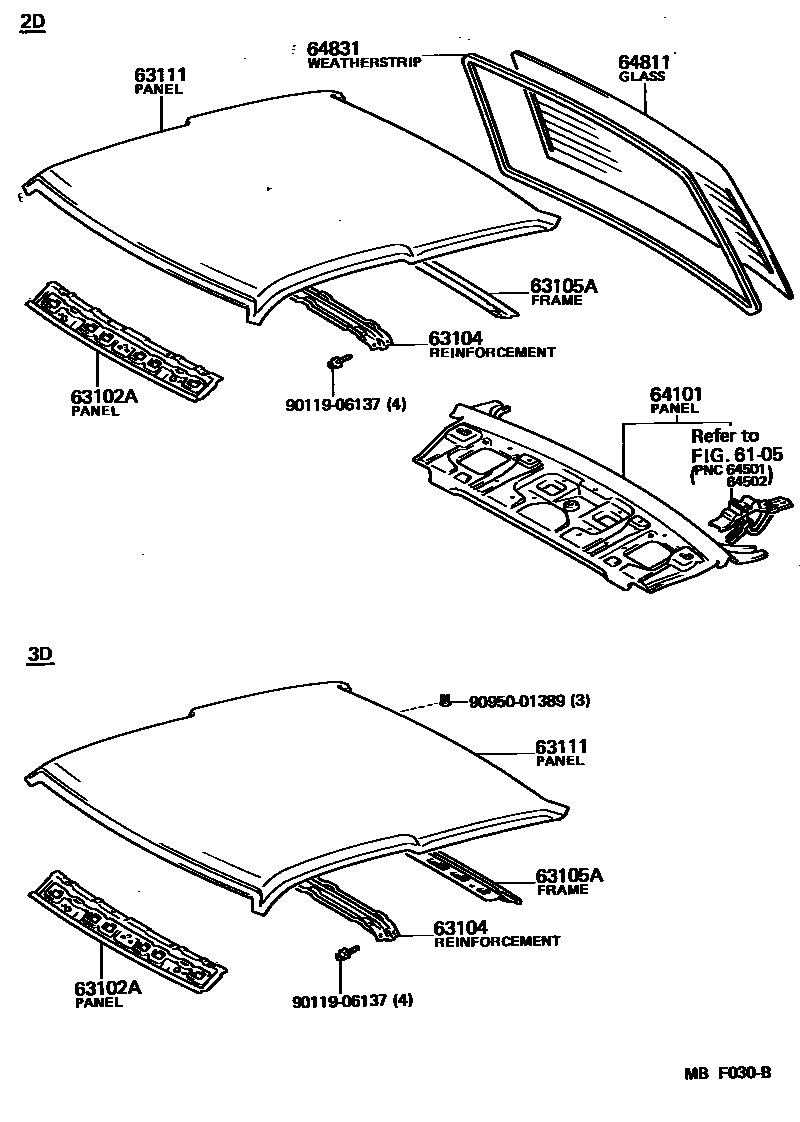

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

6105

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12010iAE86198305-198707

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-12090iAE86198305-198707

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12090iAE86..3D198305-198505

sub63105-12100

main63105-12100iAE86..3D198505-198509

sub63105-12170

main63105-12160iAE86..3D198509-198707

main63133-12130iAE86..2D198305-198704

63111PANEL, ROOF

main63111-12190iAE86..3D198305-198707

W/O SUN ROOF

main63111-12200iAE86..3D198305-198707

W/SUN ROOF

main63111-12210iAE86..2D198305-198704

W/O SUN ROOF

main63111-12220iAE86..2D198305-198704

W/SUN ROOF

64101PANEL SUB-ASSY, UPPER BACK

main64101-12230iAE86..2D198305-198608

sub64101-12240

main64101-12240iAE86..2D198608-198704

64811GLASS, BACK WINDOW

main64801-12310iAE86..2D198305-198704

*EHTT,T=4.0

main64801-12320iAE86..2D..EUR198308-198704

*EHTT,T=4.0,HEAVY TYPE

main64811-12610iAE86..2D..GEN198305-198408

*TT,T=4.0

sub64801-12310

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-12270iAE86..2D198305-198704

9011906137

main90119-06137

9095001389

main90950-01389

10 parts on this diagram · 2 diagrams in section
