MAT & CARPET

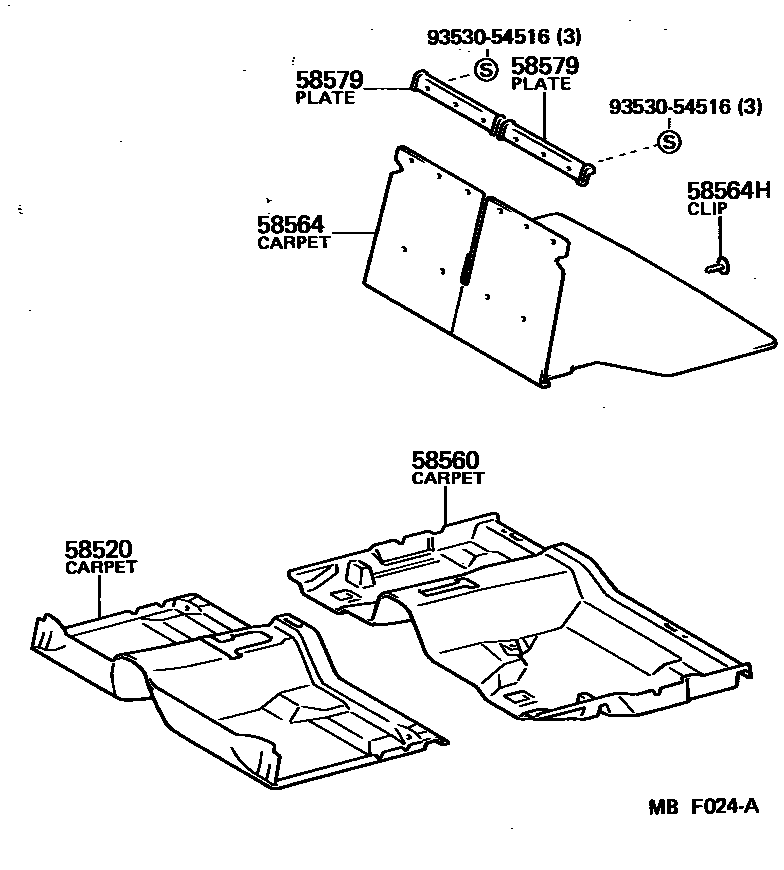

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-12620-01i198505-198704
BLACK,BLACK,TRIM2#
sub58510-12670
main58510-12620-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub58510-12670
main58510-12620-04i198305-198505
BLUE,BLUE,TRIM8#
sub58510-12670
main58510-12620-14i198505-198704
BLUE,BLUE,TRIM8#
sub58510-12670
main58510-12650-01i198505-198704
BLACK,BLACK,TRIM2#
main58510-12650-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main58510-12650-04i198305-198505
BLUE,BLUE,TRIM8#
main58510-12650-14i198505-198704
BLUE,BLUE,TRIM8#
main58510-12660-02i198308-198505
DEEP MAROON,RED/MAROON,TRIM3#
main58510-12660-04i198308-198505
BLUE,BLUE,TRIM8#
main58510-12690-01i198505-198704
COLD SPEC,BLACK,BLACK,TRIM2#
main58510-12690-02i198308-198505
COLD SPEC,DEEP MAROON,RED/MAROON,TRIM3#
main58510-12690-04i198308-198505
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-12690-14i198505-198704
COLD SPEC,BLUE,BLUE,TRIM8#
main58510-12870-01i198505-198704
BLACK,BLACK,TRIM2#
main58510-12870-02i198312-198505
DEEP MAROON,RED/MAROON,TRIM3#
main58510-12870-04i198312-198505
BLUE,BLUE,TRIM8#
main58510-12870-14i198505-198704
BLUE,BLUE,TRIM8#
main58510-1A120-01i198505-198707
BLACK,BLACK,TRIM2#
sub58510-1A120
main58510-1A120-04i198505-198707
BLUE,BLUE,TRIM8#
sub58510-1A120
58560CARPET ASSY, FLOOR, REAR
main58540-12450-02i198305-198505
W/*ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub58540-12460
sub58540-12530
main58540-12450-04i198305-198505
W/*ELR,BLUE,BLUE,TRIM8#
sub58540-12460
sub58540-12530
main58540-12470-02i198308-198505
W/*SSSB,DEEP MAROON,RED/MAROON,TRIM3#
sub58540-12530
main58540-12470-04i198308-198505
W/*SSSB,BLUE,BLUE,TRIM8#
sub58540-12530
main58540-12510-02i198308-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub58540-12530
main58540-12510-04i198308-198505
BLUE,BLUE,TRIM8#
sub58540-12530
main58540-12530-01i198505-198704
BLACK,BLACK,TRIM2#
sub58540-12530
main58540-12530-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub58540-12530
main58540-12530-04i198305-198505
BLUE,BLUE,TRIM8#
sub58540-12530
main58540-12530-14i198505-198704
BLUE,BLUE,TRIM8#
sub58540-12530
main58540-12700-01i198505-198707
BLACK,BLACK,TRIM2#
sub58540-12700
main58540-12700-04i198505-198707
BLUE,BLUE,TRIM8#
sub58540-12700
58564CARPET, REAR FLOOR
main58570-12130-01i198505-198707
BLACK,BLACK,TRIM2#
main58570-12130-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main58570-12130-04i198305-198505
BLUE,BLUE,TRIM8#
main58570-12130-14i198505-198707
BLUE,BLUE,TRIM8#
main58570-12170-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main58570-12170-04i198305-198505
BLUE,BLUE,TRIM8#
58564HCLIP(FOR REAR FLOOR CARPET)
main90467-06016-01i198505-198707
BLACK,BLACK,TRIM2#
sub90467-06016
sub90467-07049
main90467-06016-04i198305-198707
BLUE,BLUE,TRIM8#
sub90467-06016
sub90467-07049
main90467-06016-22i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
sub90467-06016
sub90467-07049
58579SET PLATE, REAR FLOOR CARPET, NO.1
main58573-12030-01i198505-198707
BLACK,BLACK,TRIM2#
main58573-12030-02i198305-198505
DEEP MAROON,RED/MAROON,TRIM3#
main58573-12030-04i198305-198707
BLUE,BLUE,TRIM8#
9353054516
main93530-54516

6 parts on this diagram · 1 diagram in section
