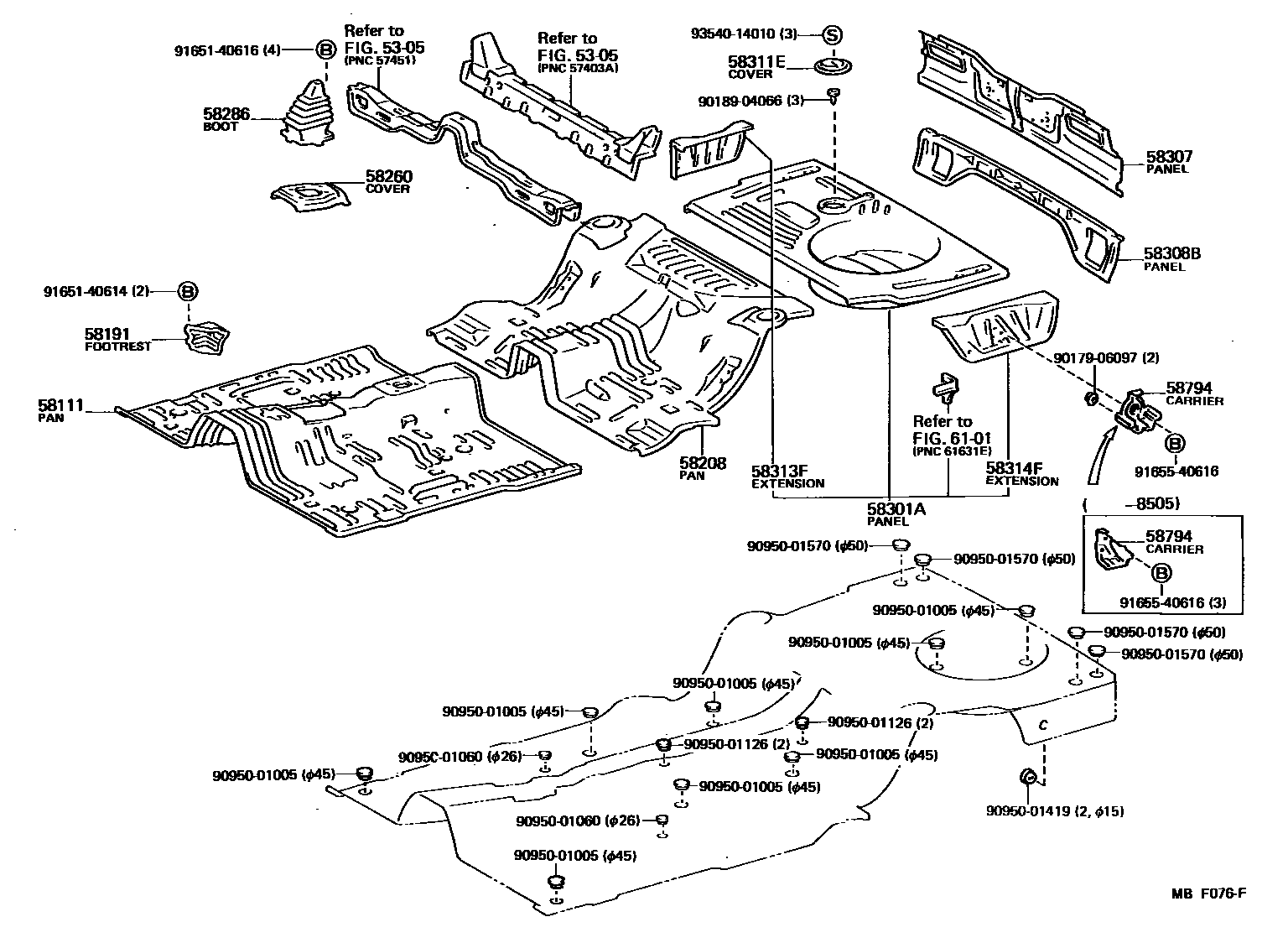

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

58111PAN, FRONT FLOOR

main58111-12160iAE86198305-198707

58191FOOTREST, FRONT FLOOR

main58191-12050iAE86..RHD198305-198704

58208PAN, CENTER FLOOR

main58211-12150iAE86..ARL,EUR,GEN198305-198704

main58211-12160iAE86..ME198308-198707

sub58211-12150

58260COVER ASSY, TRANSMISSION, FRONT

main58281-12030iAE86..5F198305-198707

main58281-12040iAE86..4FC198305-198704

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-12110iAE86..5F..SR198305-198704

main58280-12120iAE86..GT198308-198707

58301APANEL SUB-ASSY, REAR FLOOR

main58301-12170iAE86..3D198305-198707

main58301-12190iAE86..2D..GEN198305-198503

sub58301-12210

main58301-12210iAE86..2D198308-198505

main58301-12211iAE86..2D198505-198704

sub58301-12210

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12740iAE86..ME198308-198505

main58307-12741iAE86..ME198505-198707

main58307-12750iAE86..3D..EUR198308-198704

main58307-12770iAE86..3D..(ARL,GEN)198305-198704

main58307-12800iAE86..2D..EUR198308-198704

main58307-12810iAE86..2D..GEN198305-198704

58308BPANEL SUB-ASSY, REAR VALANCE

main58308-12110iAE86198305-198707

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-16030iAE86198305-198707

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12140iAE86..3D198305-198707

main58313-12150iAE86..2D..GEN198305-198505

main58313-12160iAE86..2D..EUG198308-198704

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58303-12050iAE86..2D..GEN198305-198412

sub58303-12060

main58303-12060iAE86..2D..EUG198308-198505

main58303-12061iAE86..2D198505-198704

main58314-12140iAE86..3D198305-198707

58794CARRIER, JACK

main58791-12080iAE86..2D198305-198505

main58791-12081iAE86..2D198505-198704

6101

9017906097

main90179-06097

9018904066

main90189-04066

9095001005

main90950-01005

9095001060

main90950-01060

9095001126

main90950-01126

9095001419

main90950-01419

9095001570

main90950-01570

9165140614

main91651-40614

9165140616

main91651-40616

9165540616

main91655-40616

9354014010

main93540-14010

25 parts on this diagram · 2 diagrams in section
