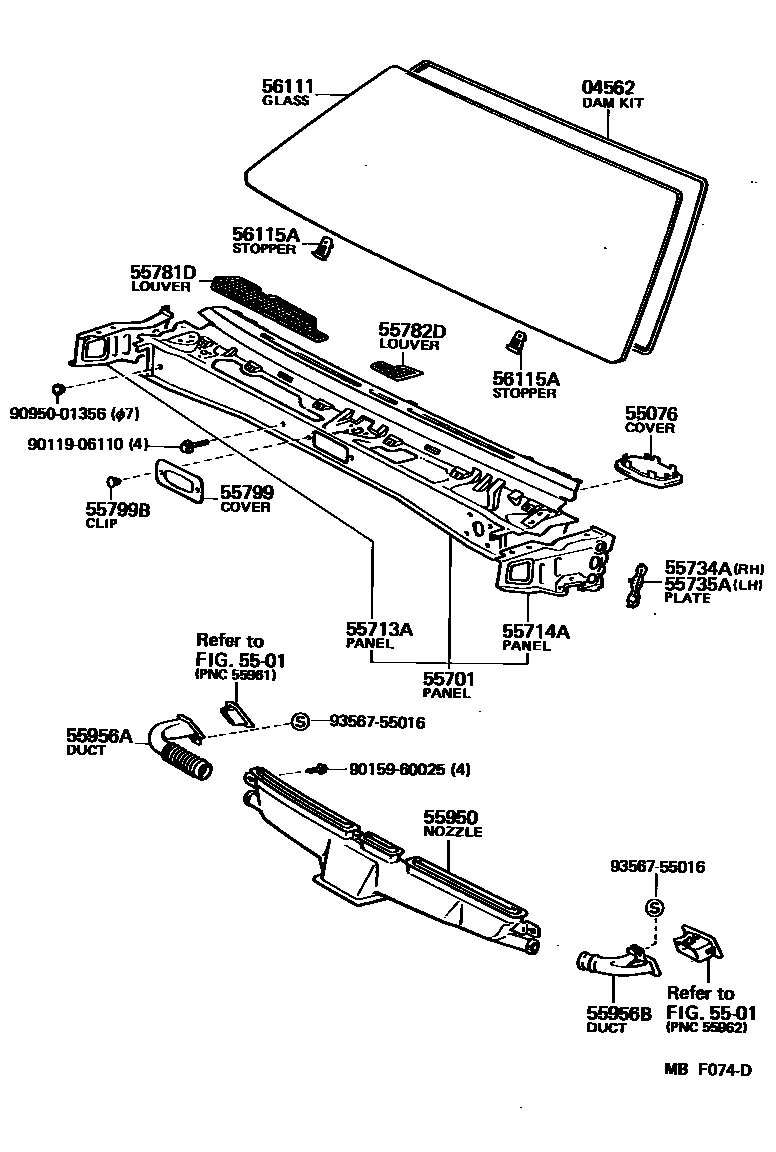

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-30030iAE86¥2,680198305-198308

sub04562-30040¥2,390

main04562-30040iAE86¥2,390198308-198707

5501

55076COVER, HEATER AIR DUCT HOLE

main55077-12040iAE86..RHD..GEN¥2,090198305-198704

main55077-12050iAE86..LHD..GEN;AE86..LHD..(EUG,FRG)¥2,090198305-198704

55701PANEL SUB-ASSY, COWL

main55700-12230iAE86..RHD..GEN¥38,500198305-198508

sub55700-12410¥38,600

main55700-12240iAE86..LHD..5F..SR..GEN¥38,500198305-198508

sub55700-12420

main55700-12250iAE86..4FC¥38,500198305-198506

sub55700-12240¥38,500

main55700-12260iAE86..LHD..GT..(GEN,ME)¥38,500198308-198508

sub55700-12440

main55700-12410iAE86..RHD..EUG¥38,600198506-198704

main55700-12420iAE86..LHD..SR198508-198704

main55700-12440iAE86..LHD..EUR198506-198707

55713APANEL, COWL TOP SIDE, RH

main55713-12050iAE86¥1,780198305-198707

55714APANEL, COWL TOP SIDE, LH

main55714-12050iAE86¥1,780198305-198707

55734APLATE, WATER GUARD, RH

main55734-12060iAE86¥600198305-198707

55735APLATE, WATER GUARD, LH

main55735-12060iAE86¥750198305-198707

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-12120iAE86..RHD¥850198305-198704

main55783-12150iAE86..LHD¥970198305-198707

sub55783-12180¥750

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-12010iAE86..LHD¥630198305-198707

sub55782-12040¥610

main55782-12040iAE86..LHD..(EUG,FRG)¥610198605-198704

COLD SPEC

main55784-12010iAE86..RHD¥980198305-198704

55799COVER, WIPER MOTOR

main55793-24010iAE86¥750198305-198707

55799BCLIP, WIPER MOTOR COVER, OUTER

main90467-08023iAE86¥130198305-198707

55950NOZZLE ASSY, DEFROSTER

main55950-12080iAE86..RHD¥6,600198305-198704

main55950-12090iAE86..LHD¥6,600198305-198707

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-12050iAE86..RHD¥1,740198305-198704

main55970-12060iAE86..LHD¥1,740198305-198707

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-12040iAE86..RHD¥1,290198305-198704

main55980-12050iAE86..LHD¥1,290198305-198707

56111GLASS, WINDSHIELD

main56111-12480iAE86..GEN;AE86..EUG¥59,800198305-198704

*TZT,T=5.0

sub56111-12760¥107,000

main56111-12490iAE86..EUR,GEN¥97,600198305-198704

*TL,T=5.3

sub56111-12500¥106,000

main56111-12500iAE86..LHD..(GEN,ME)¥106,000198305-198707

*TL,T=5.3,W/SUN SHADE

main56111-12520iAE86..ARL¥93,600198305-198505

*LAM,T=5.3,W/SUN SHADE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12010iAE86..GEN;AE86..EUG¥600198305-198704

*TZT

main56115-12020iAE86¥850198305-198707

*TL,*LAM

9011906110

main90119-06110¥110

9015960025

main90159-60025¥200

9095001356

main90950-01356¥120

9356755016

main93567-55016¥110

21 parts on this diagram · 2 diagrams in section
