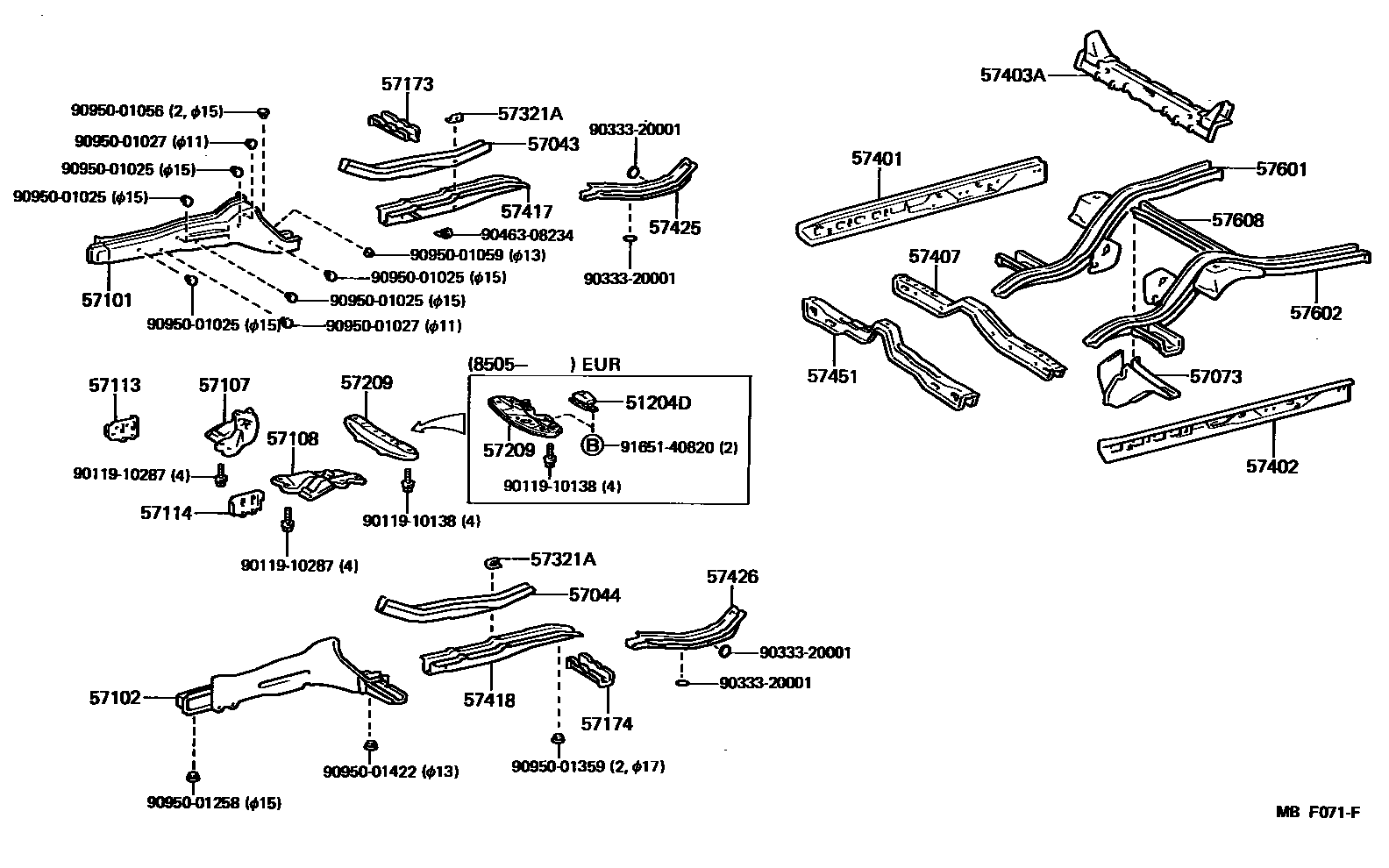

FLOOR SIDE MEMBER

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-12040iAE86..EUR198505-198704

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57016-12010iAE86..ME¥9,400198308-198707

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57017-12010iAE86..ME198308-198707

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-12030iAE86¥8,800198305-198707

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12180iAE86..ARL,EUR,GEN¥28,100198305-198704

sub57101-12190¥28,300

main57101-12190iAE86..ME¥28,300198308-198707

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12180iAE86..ARL,EUR,GEN¥28,100198305-198704

sub57102-12190¥28,300

main57102-12190iAE86..ME¥28,300198308-198707

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-12040iAE86¥4,410198408-198707

main57107-12050iAE86¥5,000198305-198408

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-12040iAE86..SR;AE86..RHD..GT..GEN¥4,410198408-198704

main57108-12050iAE86..SR;AE86..GT..GEN¥5,800198305-198408

W/O OIL COOLER

sub57108-12070¥5,000

main57108-12070iAE86..LHD..GT;AE86..RHD..EUG¥5,000198308-198408

W/OIL COOLER

main57108-12080iAE86..GT¥4,410198408-198707

W/OIL COOLER

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12060iAE86¥1,870198305-198707

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12060iAE86¥1,870198305-198707

57173BOX, TORQUE, FRONT NO.2 RH

main57173-12010iAE86¥750198305-198707

57174BOX, TORQUE, FRONT NO.2 LH

main57174-12010iAE86¥750198305-198707

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-12280iAE86..5F198305-198507

main57209-12310iAE86..5F..(GEN,ME)¥5,200198507-198707

main57209-12340iAE86..4FC¥4,820198305-198704

main57209-12350iAE86..EUG,SDZ198508-198704

main57209-12360iAE86..FRG198508-198704

57321ARETAINER, CATALYTIC CONVERTER MOUNTING

main57321-12040iAE86..ARL,EUR,GEN198305-198704

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-12160iAE86..ARL,GEN,ME¥5,900198305-198505

sub57401-12170¥11,100

main57401-12170iAE86¥11,100198308-198707

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-12160iAE86..ARL,GEN,ME¥10,900198305-198505

sub57402-12170¥11,100

main57402-12170iAE86..EUR¥11,100198308-198707

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-12030iAE86..3D¥9,400198305-198707

main57403-12040iAE86..2D¥9,400198305-198704

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-12010iAE86¥5,600198305-198707

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12040iAE86..ARL,EUR,GEN¥6,100198305-198704

main57417-12050iAE86..ME¥6,600198305-198707

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-12040iAE86..ARL,EUR,GEN¥6,100198305-198704

main57417-12050iAE86..ME¥6,600198305-198707

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-12030iAE86¥1,740198305-198707

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-12030iAE86¥1,740198305-198707

57451MEMBER, FRONT FLOOR CROSS

main57408-12030iAE86¥13,200198305-198707

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12910iAE86..ARL,EUR,GEN198305-198408

main57601-12911iAE86..ME¥25,500198308-198707

main57601-12913iAE86..ARL,EUR,GEN¥29,500198408-198704

sub57601-12915¥29,800

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12910iAE86..ARL,EUR,GEN¥25,500198305-198408

main57602-12911iAE86..ME¥25,500198308-198707

main57602-12913iAE86..ARL,EUR,GEN¥33,500198408-198704

sub57602-12915¥34,000

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57405-12040iAE86¥10,000198305-198707

9011910138

main90119-10138¥260

9011910287

main90119-10287¥230

9033320001

main90333-20001¥70

9046308234

main90463-08234¥280

9095001025

main90950-01025¥240

9095001027

main90950-01027¥160

9095001056

main90950-01056¥230

9095001059

main90950-01059¥230

9095001258

main90950-01258¥170

9095001359

main90950-01359¥200

9095001422

main90950-01422¥240

9165140820

main91651-40820¥90

38 parts on this diagram · 1 diagram in section
