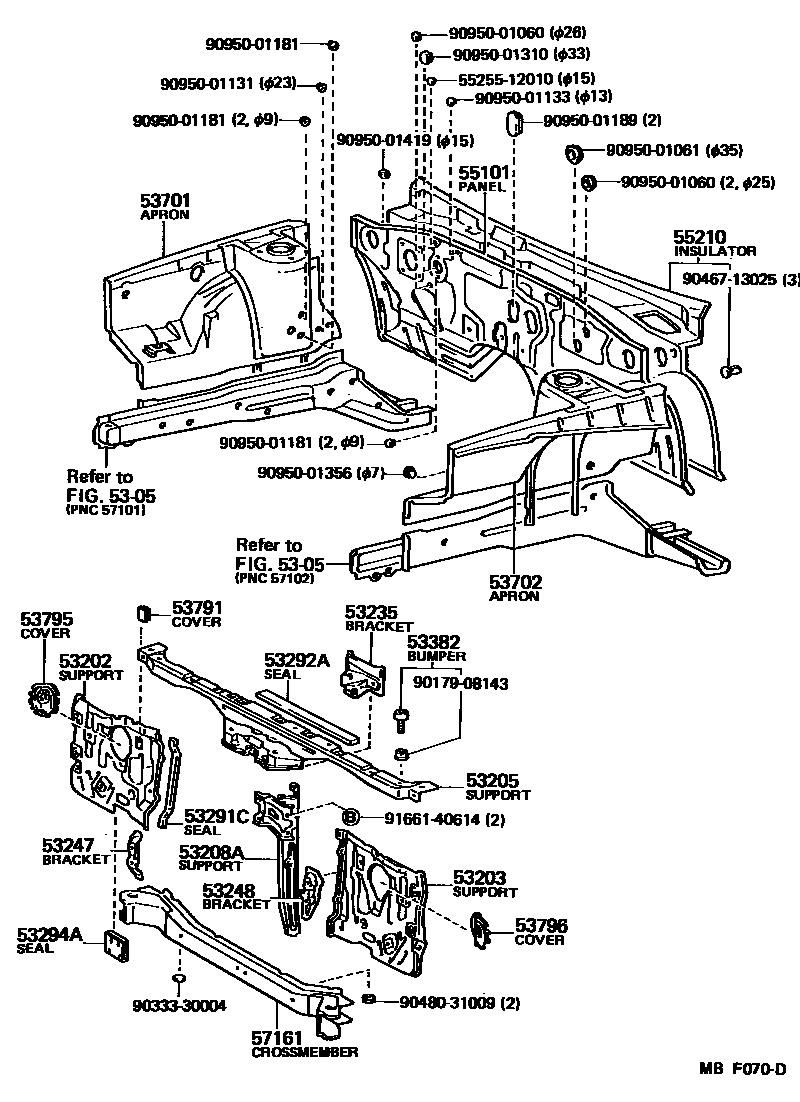

FRONT FENDER APRON & DASH PANEL

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-12210iAE86198305-198308

sub53211-12220

main53211-12220iAE86198308-198707

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53212-12190iAE86198305-198308

sub53212-12200

main53212-12200iAE86198308-198707

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-12903iAE86198305-198308

sub53216-12904

main53216-12904iAE86198308-198505

sub53216-12927

main53216-12927iAE86198505-198707

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-12220iAE86..ARL,GEN198305-198505

sub53208-12290

main53208-12221iAE86..GEN198505-198508

sub53208-12291

main53208-12230iAE86..ME198308-198505

sub53208-12240

main53208-12241iAE86..ME198505-198707

main53208-12290iAE86..EUR198308-198505

main53208-12291iAE86..EUR198505-198704

53235BRACKET, HORN MOUNTING

main53235-12010iAE86198505-198707

53247BRACKET, HEADLAMP MOUNTING, INNER RH

main53271-12030iAE86..ARL,EUR,GEN198305-198704

53248BRACKET, HEADLAMP MOUNTING, INNER LH

main53272-12020iAE86..ARL,EUR,GEN198305-198704

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-12090iAE86..ARL,GEN,ME;AE86..LHD..GT..EUR198305-198707

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-12010iAE86..ARL,GEN,ME;AE86..LHD..GT..EUR198305-198707

53294ASEAL, COOL AIR INTAKE PIPE

main53294-12030iAE86..LHD..(EUG,FRG)198308-198704

main53294-12040iAE86..ARL,GEN,ME198305-198707

53382BUMPER, HOOD, FRONT

main53382-12050iAE86198305-198707

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-12913iAE86..FRG198505-198704

main53701-12915iAE86..ME198308-198707

sub53701-12916

main53701-12916iAE86..EUG,SDZ198305-198704

sub53701-12913

main53701-12916iAE86..GEN198305-198704

W/PRE AIR CLEANER

sub53701-12913

main53701-12917iAE86..SR198305-198704

sub53701-12913

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12921iAE86..ME198308-198505

sub53702-12923

main53702-12922iAE86..GT..(EUR,GEN)198308-198505

sub53702-12923

main53702-12923iAE86..SR198305-198707

53791COVER, COOL AIR INTAKE HOLE

main53791-12040iAE86..ARL,GEN,ME;AE86..LHD..GT..EUR198305-198707

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-12020iAE86..ARL,GEN,ME;AE86..LHD..GT..EUR198305-198707

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53796-12010iAE86..ARL,GEN,ME;AE86..LHD..GT..EUR198305-198707

55101PANEL SUB-ASSY, DASH

main55101-12908iAE86..RHD198305-198704

main55101-12909iAE86..LHD198305-198704

main55101-12910iAE86..SDZ;AE86..2D..EUG198504-198505

FRG SPEC

main55101-12910iAE86..FRG198505-198704

main55101-12911iAE86..ME198401-198707

55210INSULATOR ASSY, DASH PANEL

main55210-12200iAE86..RHD198305-198704

main55210-12230iAE86..LHD198305-198707

57161CROSSMEMBER, FRONT

main57161-12904iAE86198305-198308

sub57161-12905

main57161-12905iAE86198308-198707

5525512010COVER, CLUTCH MASTER CYLINDER HOLE

main55255-12010

9017908143

main90179-08143

9033330004

main90333-30004

9046713025

main90467-13025

9048031009

main90480-31009

9095001060

main90950-01060

9095001061

main90950-01061

9095001131

main90950-01131

9095001133

main90950-01133

9095001181

main90950-01181

9095001189

main90950-01189

9095001310

main90950-01310

9095001356

main90950-01356

9095001419

main90950-01419

9166140614

main91661-40614

35 parts on this diagram · 1 diagram in section
