REAR BUMPER & BUMPER STAY

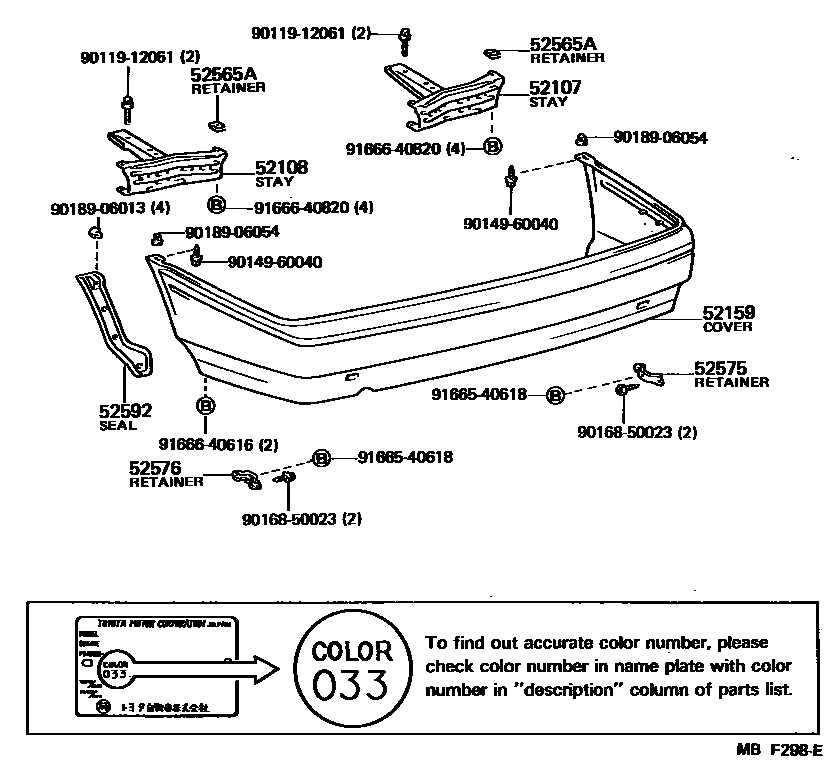

Parts diagram

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-12110i198305-198505

main52015-12111i198505-198704

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-12110i198305-198505

main52016-12111i198505-198704

52159COVER, REAR BUMPER

main52159-12080i198305-198401

DARK GRAY(038,147,3D6,3D7,4E1);DARK GRAY(8B1);DARK GRAY(558,6G5,8A8,8A9,3C3)

main52159-12081i198408-198505

BLACK(8A8,8A9);BLACK(041,147,3E6,4E1,561,148)

main52159-12081i198401-198408

BLACK(558,6G5,8A8,8A9,8B1,3C3);BLACK(038,147,3D6,3D7,4E1)

main52159-12100i198308-198707

main52159-12190-02i198305-198401

RED,RED/MAROON,2M9

main52159-12190-03i198305-198401

SILVER-M,GRAY,2M8

main52159-12191-02i198401-198408

RED,RED,2M9

main52159-12191-03i198401-198505

SILVER-M,SILVER METALLIC,2M8 ,2P2

main52159-12191-12i198408-198505

RED,RED,2T6

main52159-12550i198505-198704

BLACK

main52159-12610-03i198505-198704

BLACK & SILVER,MEDIUM GRAY METALLIC

main52159-12620-03i198505-198704

BLACK & SILVER,MEDIUM GRAY METALLIC

main52159-12900i198308-198707

TWO TONE COLOR

main52159-12905i198505-198508

TWO TONE COLOR

52565ARETAINER, REAR BUMPER, LOWER

main52565-12020i198308-198707

main52565-12040i198305-198704

52575RETAINER, REAR BUMPER SIDE, RH

main52575-12010i198305-198505

main52575-12011i198505-198704

main52575-12020i198308-198707

52576RETAINER, REAR BUMPER SIDE, LH

main52576-12010i198305-198505

main52576-12011i198505-198704

main52576-12020i198308-198707

52592SEAL, REAR BUMPER SIDE, LH

main52591-12010i198305-198707

main52592-12010i198505-198704

9011912061

main90119-12061

9014960040

main90149-60040

9016850023

main90168-50023

9018906013

main90189-06013

9018906054

main90189-06054

9166540618

main91665-40618

9166640616

main91666-40616

9166640820

main91666-40820

15 parts on this diagram · 3 diagrams in section
