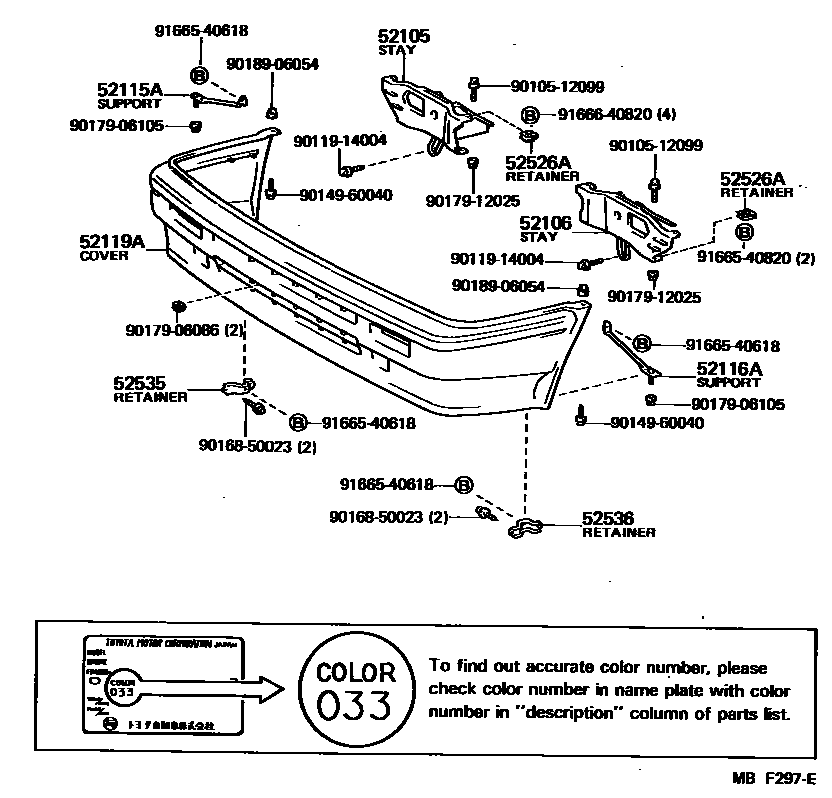

FRONT BUMPER & BUMPER STAY
52105STAY SUB-ASSY, FRONT BUMPER, RH
52106STAY SUB-ASSY, FRONT BUMPER, LH
52115ASUPPORT, FRONT BUMPER SIDE, RH
TWO TONE COLOR
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
D-GRAY,4E1 ,558 ,6G5 ,8A8 ,8A9
BLACK,8B1
W/*HC,D-GRAY,038 ,147 ,3C3 ,3D6
W/*HC,BLACK,8A8 ,8A9 ,8B1
RED,RED/MAROON,2M9
SILVER-M,GRAY,2M8
RED,RED,2M9
SILVER-M,SILVER METALLIC,2M8 ,2P2
RED,RED,2T6
BLACK
W/*HC,RED,RED/MAROON,2M9
W/*HC,SILVER-M,GRAY,2M8
W/*HC,RED,RED,2M9
W/*HC,SILVER-M,SILVER METALLIC,2M8 ,2P2
W/*HC,RED,RED,2T6
W/SPOILER,D-GRAY,3D7 ,4E1 ,558
W/SPOILER &*HC,D-GRAY,8A9 ,3C3
W/SPOILER,RED,RED/MAROON,2M9
W/SPOILER,SILVER-M,GRAY,2M8
W/SPOILER & *HC,RED,RED/MAROON,2M9
W/SPOILER & *HC,SILVER-M,GRAY,2M8
BLACK
TWO TONE COLOR
TWO TONE COLOR
BLACK & SILVER,MEDIUM GRAY METALLIC
52526ARETAINER, FRONT BUMPER, LOWER NO.1
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
9010512099
main90105-12099
9011914004
main90119-14004
9014960040
main90149-60040
9016850023
main90168-50023
9017906086
main90179-06086
9017906105
main90179-06105
9017912025
main90179-12025
9018906054
main90189-06054
9166540618
main91665-40618
9166540820
main91665-40820
9166640820
main91666-40820
19 parts on this diagram · 4 diagrams in section
