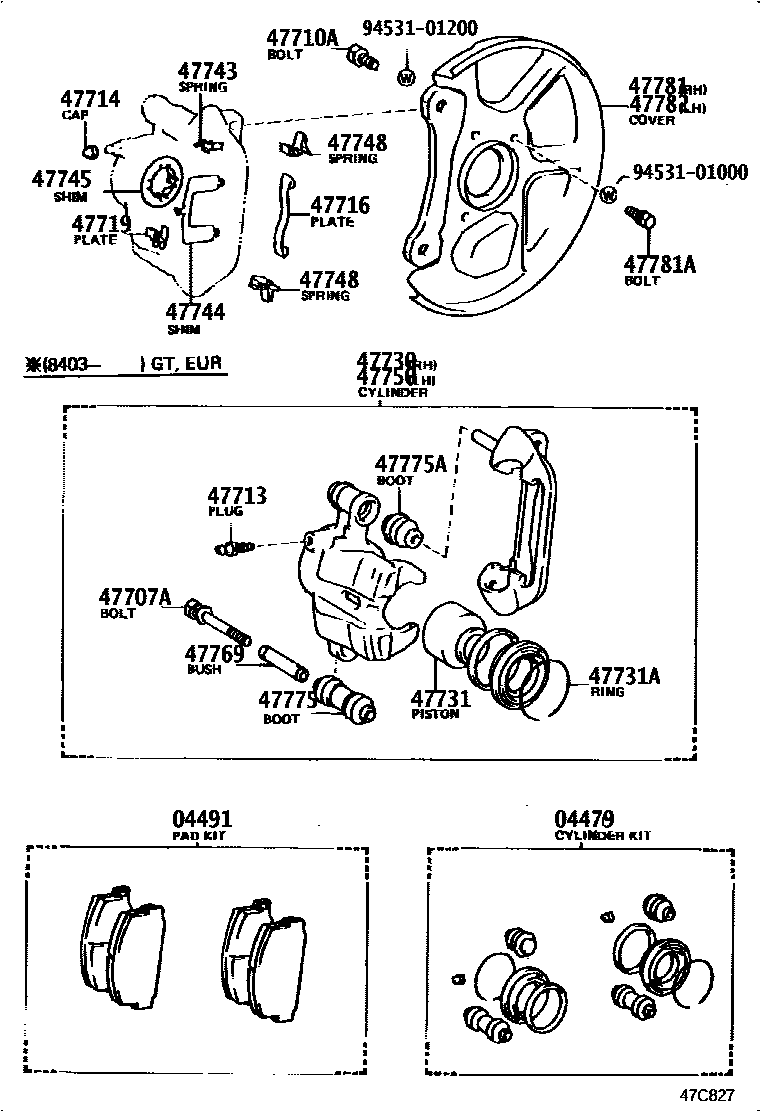

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14060iAE86198305-198707

04491PAD KIT, DISC BRAKE, FRONT

main04491-12190iAE86..EUR,ME;AE86..GT..GEN198308-198707

sub04465-12370

main04491-12260iAE86..EUR198505-198704

sub04465-12070

main04491-14150iAE86..SR..(ARL,GEN)198305-198704

sub04465-12370

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08431iAE86198305-198707

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12064iAE86198305-198707

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAE86198305-198707

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE86198305-198707

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14080iAE86198305-198707

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-12010iAE86198305-198701

main47736-12040iAE86198701-198707

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12180iAE86..EUR,ME;AE86..GT..GEN198308-198707

main47730-12250iAE86..SR..(ARL,GEN)198305-198704

47731PISTON, FRONT DISC BRAKE

main47731-14070iAE86198305-198707

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-60004iAE86198305-198707

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-12010iAE86198305-198701

LH

main47748-12050iAE86198305-198701

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14050iAE86198305-198707

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14020iAE86..EUR,ME;AE86..GT..GEN198403-198707

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-14040iAE86198305-198707

RH=UPR,LH=LWR

main47748-14050iAE86198305-198707

RH=LWR,LH=UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12180iAE86..EUR,ME;AE86..GT..GEN198308-198707

main47750-12250iAE86..SR..(ARL,GEN)198305-198704

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28010iAE86198305-198707

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010iAE86198305-198707

47775ABOOT, PIN

main47776-14010iAE86198305-198707

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-12110iAE86198305-198707

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main91111-71020iAE86198305-198707

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-12110iAE86198305-198707

9453101000

main94531-01000

9453101200

main94531-01200

24 parts on this diagram · 2 diagrams in section
