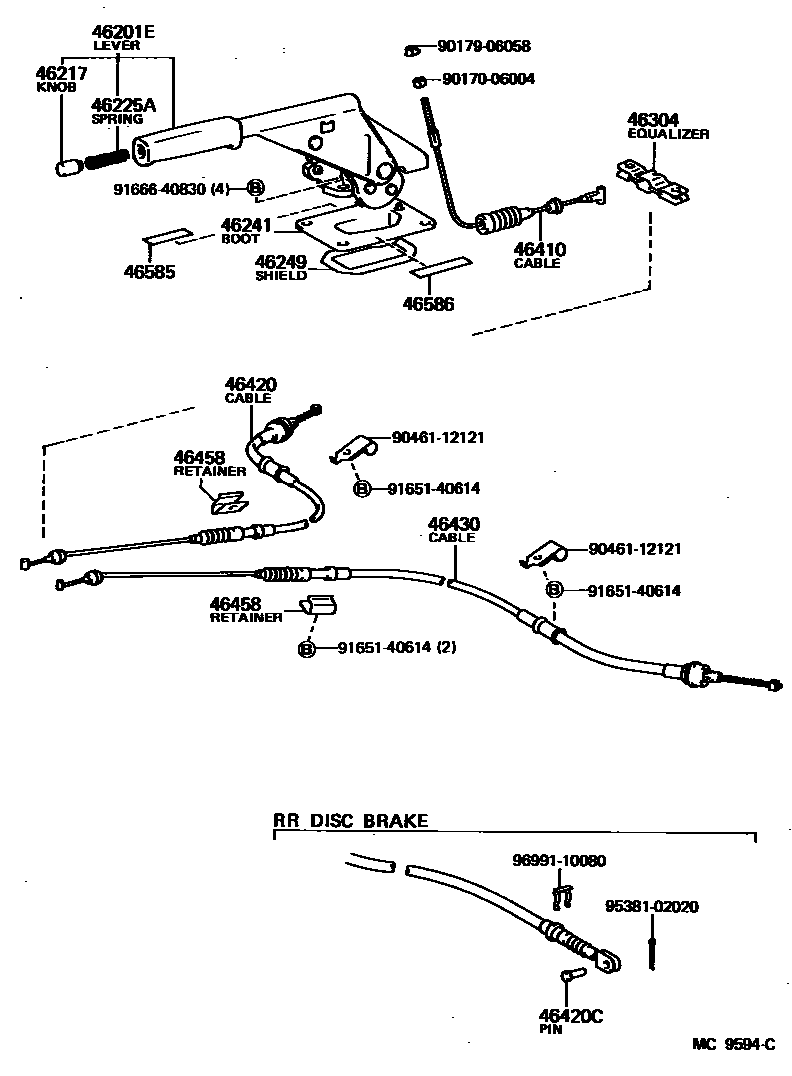

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12080iAE86..GT198308-198505

BLACK

sub46201-12081

main46201-12081iAE86..GT198505-198707

main46201-14110-01iAE86..SR198305-198704

BLACK,BLACK,TRIM2#

sub46201-14130

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iAE86198305-198707

BLACK,BLACK,TRIM2#

sub46217-10020

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iAE86198305-198707

46241BOOT, PARKING BRAKE LEVER

main46241-12070iAE86..GT198308-198707

main46241-24010iAE86..SR198305-198704

46249SHIELD, PARKING BRAKE HOLE

main46249-24010iAE86198305-198707

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-16020iAE86198305-198707

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12120iAE86..SR198305-198704

main46410-12140iAE86..GT198305-198707

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12260iAE86..SR..GEN198305-198411

main46420-12280iAE86..SR..(ARL,EUR)198305-198704

main46420-12300iAE86..GT198308-198707

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040iAE86..GT198308-198707

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12160iAE86..SR..GEN198305-198411

main46430-12180iAE86..SR..(ARL,EUR)198305-198704

main46430-12200iAE86..GT198308-198707

46458RETAINER, CABLE

main46458-20020iAE86198305-198707

sub46458-50010

46585PLATE, PARKING BRAKE CAUTION

main46585-12030iAE86..GT198409-198707

46586PLATE, PARKING BRAKE CAUTION, NO.2

main46586-12030iAE86..GT198409-198707

9017006004

main90170-06004

9017906058

main90179-06058

9046112121

main90461-12121

9165140614

main91651-40614

9166640830

main91666-40830

9538102020

main95381-02020

9699110080

main96991-10080

20 parts on this diagram · 1 diagram in section
