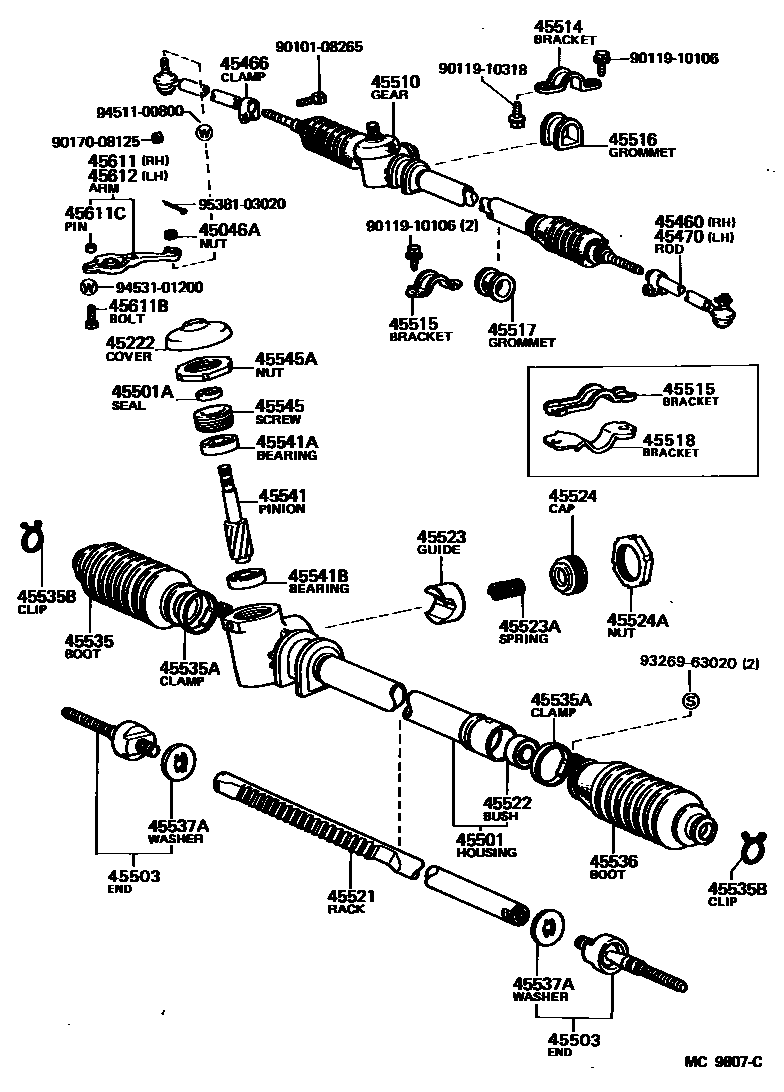

FRONT STEERING GEAR & LINK
45046ANUT, CASTLE(FOR TIE ROD END)
45222COVER, STEERING GEAR DUST
45460ROD ASSY, TIE, RH
45466CLAMP, TIE ROD END
45470ROD ASSY, TIE, LH
45501HOUSING SUB-ASSY, STEERING RACK
45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503END SUB-ASSY, STEERING RACK
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
45515BRACKET, STEERING RACK HOUSING, NO.2
W/POWER STEERING
45516GROMMET, STEERING RACK HOUSING, NO.1
45517GROMMET, STEERING RACK HOUSING, NO.2
W/POWER STEERING
45518BRACKET, STEERING RACK HOUSING, NO.3
45521RACK, STEERING
45522BUSH, STEERING RACK
45523GUIDE, RACK(FOR STEERING GEAR)
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535ACLAMP(FOR STEERING RACK BOOT)
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537AWASHER, CLAW(FOR STEERING RACK END LOCK)
45541PINION, STEERING
45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545SCREW, PINION BEARING ADJUSTING
45545ANUT(FOR PINION BEARING ADJUSTING SCREW)
45611ARM, STEERING KNUCKLE, RH
W/POWER STEERING
45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
45612ARM, STEERING KNUCKLE, LH
W/POWER STEERING
9010108265
9011910106
9011910318
9017008125
9326963020
9451100800
9453101200
9538103020
42 parts on this diagram · 3 diagrams in section
