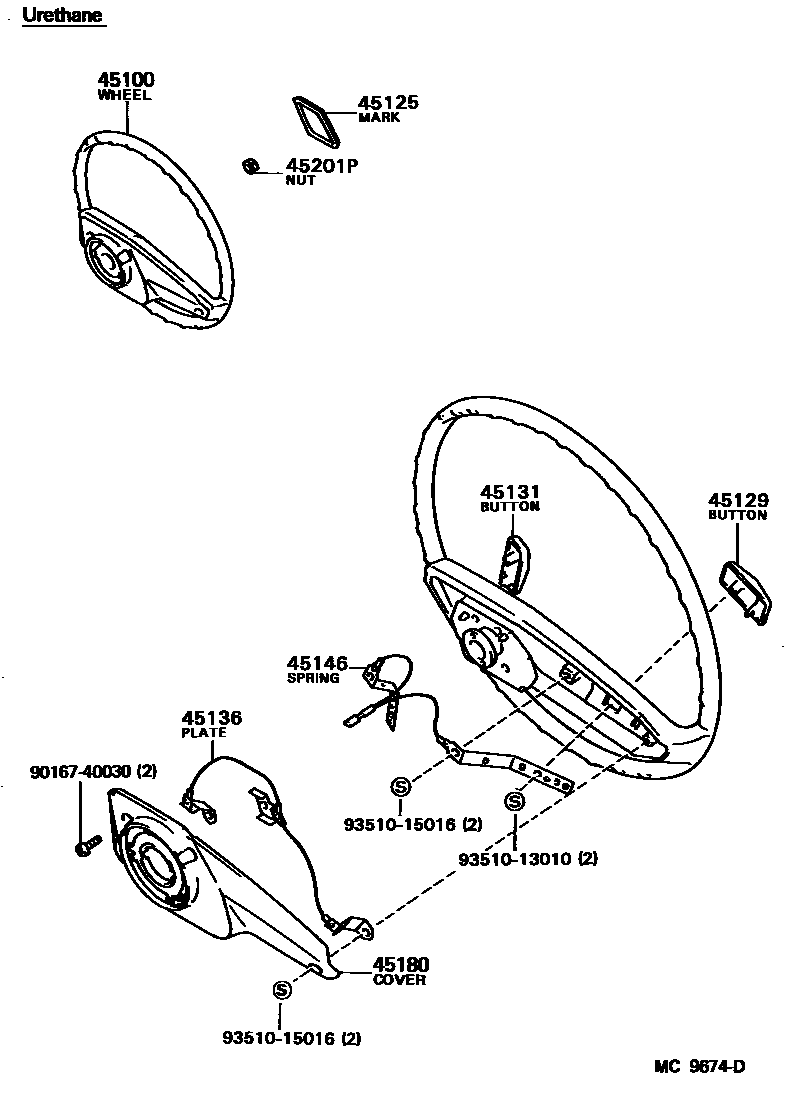

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-12300-01iAE86..GT198308-198707

BLACK,BLACK,TRIM2#

sub45100-12300

main45100-12400-01iAE86..SR198305-198704

BLACK,BLACK,TRIM2#

sub45100-12420

sub45100-12400

45125MARK, STEERING WHEEL PAD

main45125-12310-01iAE86..GT198308-198707

BLACK,BLACK,TRIM2#

sub45125-12310

main45125-12360iAE86..SR..(EUR,GEN)198305-198704

main45125-12370iAE86..ARL198305-198505

45129BUTTON, HORN, NO.2

main45129-12090-01iAE86..SR198305-198704

BLACK,BLACK,TRIM2#

sub45129-12090

45131BUTTON, HORN, NO.1

main45131-12190-01iAE86..SR198305-198704

BLACK,BLACK,TRIM2#

sub45131-12190

45136PLATE, HORN BUTTON CONTACT

main45136-12110iAE86..SR198305-198704

main45136-12120iAE86..GT198308-198707

45146SPRING, HORN BUTTON CONTACT

main45146-12090iAE86..SR198305-198704

45180COVER SUB-ASSY, STEERING WHEEL

main45180-12030-01iAE86..SR198305-198704

BLACK,BLACK,TRIM2#

sub45180-12030

45201PNUT, STEERING WHEEL SET

main90179-12086iAE86198305-198707

9016740030

main90167-40030

9351013010

main93510-13010

9351015016

main93510-15016

11 parts on this diagram · 2 diagrams in section
