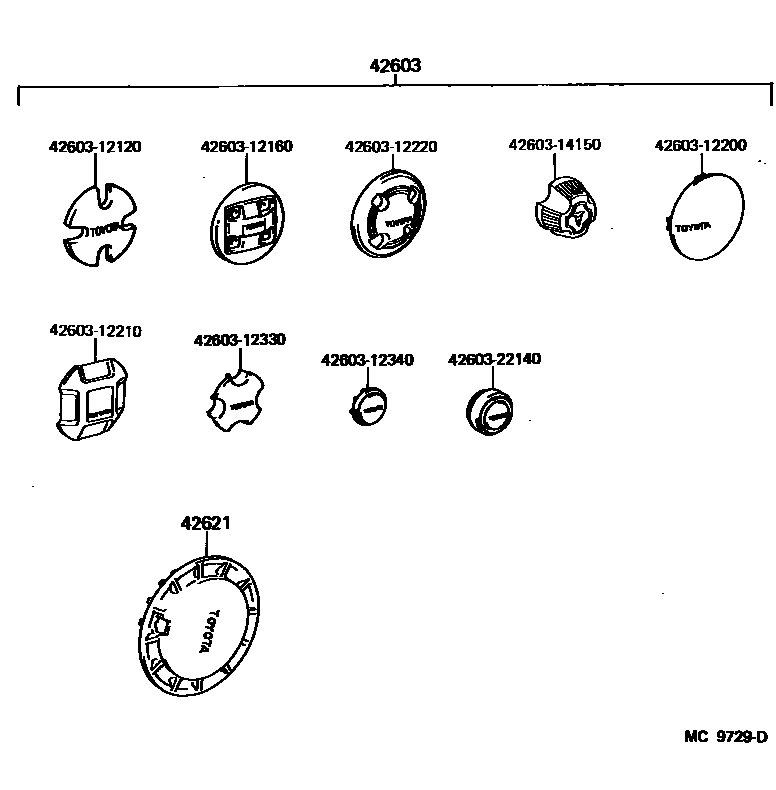

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12120×4iAE86198305-198408

ALUMI WHEEL

main42603-12160×4iAE86..ARL,GEN,ME198305-198408

main42603-12200×4iAE86..SR;AE86..EUG;AE86..GT..(GEN,ME)198408-198505

5J-13,ALUMI

main42603-12210-03×4iAE86..GT..EUR198410-198505

5.5J-14,SILVER,ALUMI,SILVER METALLIC

main42603-12210-05×4iAE86..GT..EUR198410-198505

5.5J-14,GOLD,ALUMI,BEIGE METALLIC

main42603-12220×4iAE86..ARL,GEN,ME198408-198707

main42603-12330×4iAE86..GEN,ME198505-198707

5J-13,ALUMI WHEEL

main42603-12340×4iAE86..EUR198505-198704

6JJ-14

main42603-14150×4iAE86..GT..EUR198410-198704

5.5J-14

main42603-22140×4iAE86..ME198505-198707

5.5J-14,ALUMI WHEEL

42621CAP, WHEEL

main42621-12250×4iAE86..EUG;AE86..SR..SDZ198308-198505

4260312120ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12120

4260312160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12160

4260312200ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12200

4260312210ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12210

4260312220ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12220

4260312330ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12330

4260312340ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12340

4260314150ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14150

4260322140ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22140

11 parts on this diagram · 2 diagrams in section
