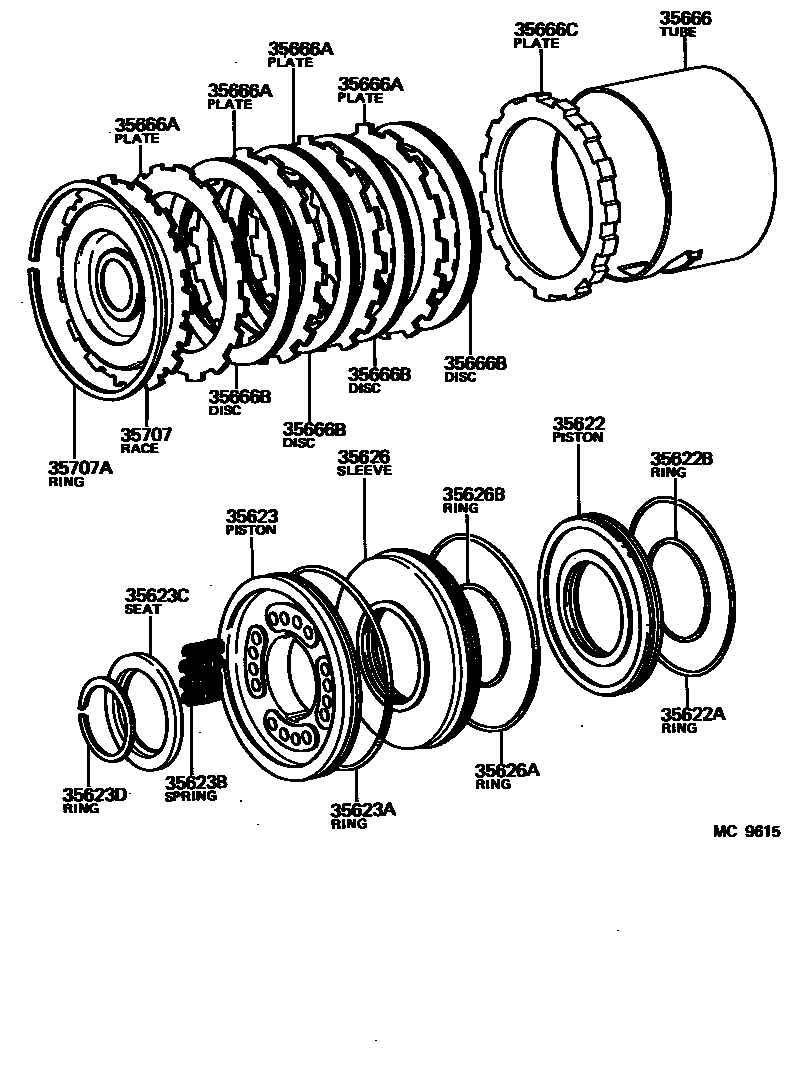

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35622PISTON, BRAKE, NO.2

main35622-22010iAE86..4FC¥1,850198305-198704

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iAE86..4FC¥800198305-198704

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iAE86..4FC¥630198305-198704

35623PISTON, BRAKE, NO.3

main35623-22010iAE86..4FC¥2,330198305-198704

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iAE86..4FC¥800198305-198704

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iAE86..4FC¥190198305-198704

35623CSEAT, BRAKE RETURN SPRING

main35627-22010iAE86..4FC¥530198305-198704

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iAE86..4FC¥240198305-198704

35626SLEEVE, BRAKE REACTION

main35626-22010iAE86..4FC¥2,100198305-198704

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iAE86..4FC¥800198305-198704

sub90301-99109¥190

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iAE86..4FC¥630198305-198704

sub90301-67005¥190

35666TUBE, BRAKE APPLY

main35666-26010iAE86..4FC¥2,470198305-198704

35666APLATE, CLUTCH (FOR BRAKE)

main35634-22080iAE86..4FC¥2,640198305-198703

main35637-22010iAE86..4FC198703-198704

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30030iAE86..4FC¥2,780198305-198704

sub35633-30050¥2,640

35666CPLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iAE86..4FC¥3,250198305-198704

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30010iAE86..4FC¥11,600198305-198508

sub35707-30020¥8,000

main35707-30020iAE86..4FC¥8,000198508-198704

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iAE86..4FC¥520198305-198704

17 parts on this diagram · 1 diagram in section
