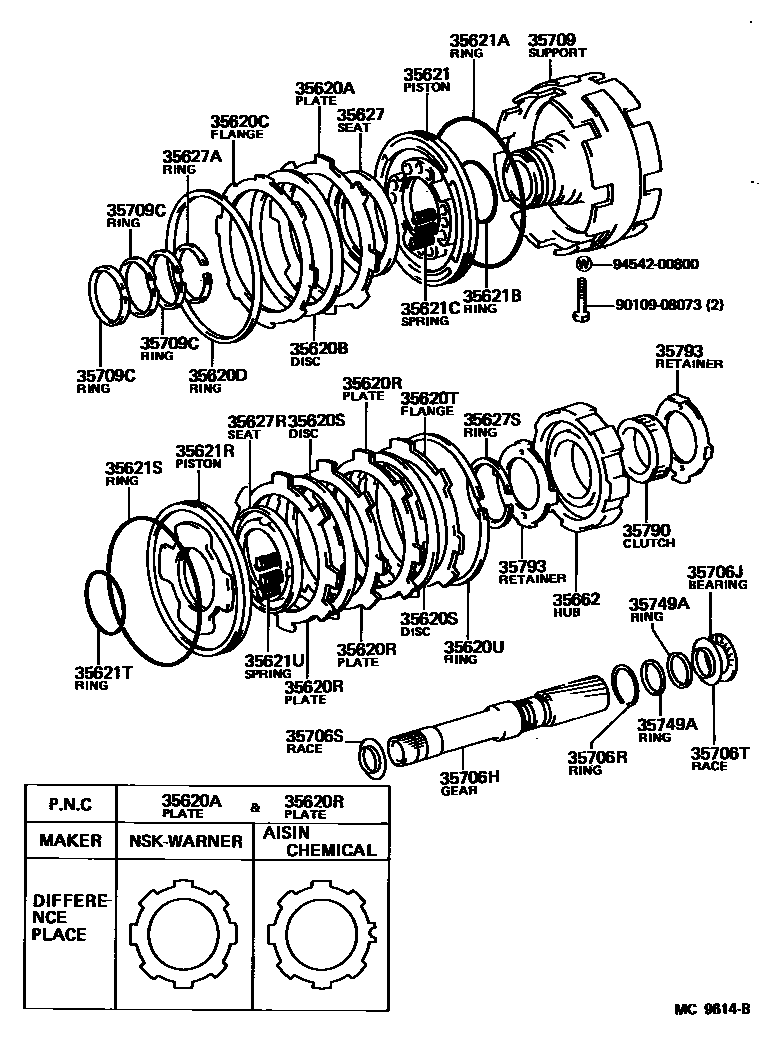

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35620APLATE, CLUTCH (FOR BRAKE)
NSK-WARNER
35620CFLANGE, CLUTCH (FOR BRAKE)
sub35675-22140
35620DRING (FOR BRAKE)
35620RPLATE, CLUTCH (FOR REAR BRAKE)
NSK-WARNER
35620TFLANGE, CLUTCH (FOR REAR BRAKE)
sub35675-22140
35620URING (FOR REAR BRAKE)
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621BRING, O (FOR BRAKE PISTON INNER)
35621CSPRING (FOR BRAKE PISTON RETURN)
35621RPISTON, BRAKE (FOR REAR BRAKE)
35621SRING (FOR REAR BRAKE PISTON OUTER)
sub90301-99107
35621TRING (FOR REAR BRAKE PISTON INNER)
35621USPRING (FOR REAR BRAKE PISTON RETURN)
35627SEAT, BRAKE RETURN SPRING
35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
35627RSEAT, BRAKE RETURN SPPING (FOR REAR BRAKE)
35627SRING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)
35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)
35709SUPPORT SUB-ASSY, CENTER
35709CRING, OIL SEAL (FOR CENTER SUPPORT)
35749ARING, SUN GEAR SHAFT OIL SEAL
35790CLUTCH ASSY, 1 WAY
35793RETAINER, 1 WAY CLUTCH
9010908073
main90109-08073
9454200800
main94542-00800
33 parts on this diagram · 1 diagram in section
