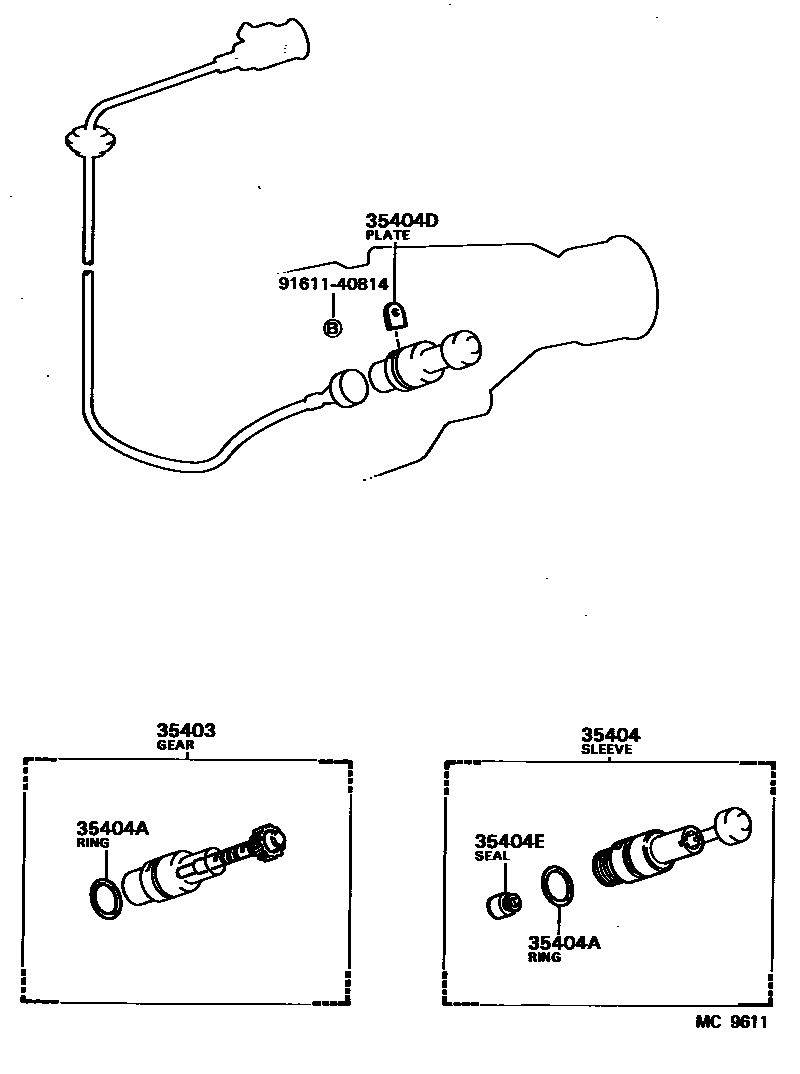

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-39015iAE86..4FC198305-198704

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iAE86..4FC198305-198704

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iAE86..4FC198606-198704

main90301-18018iAE86..4FC198305-198606

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iAE86..4FC198305-198704

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE86..4FC198305-198704

9161140814

main91611-40814

6 parts on this diagram · 1 diagram in section
