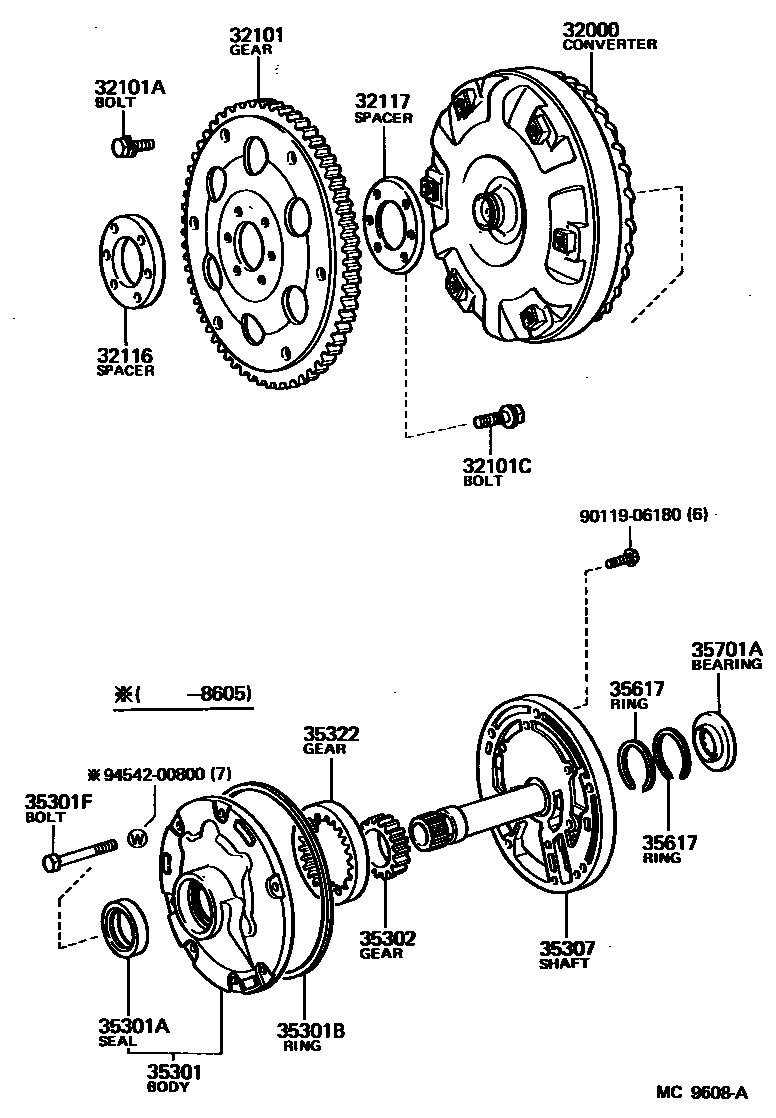

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-12070iAE86..4FC198305-198407

sub32000-12071

main32000-12071iAE86..4FC198407-198704

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12030iAE86..4FC198305-198704

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08090iAE86..4FC198305-198505

WHITE

main90109-08113iAE86..4FC198505-198704

*8-1.25PX12-8.4,OLIVE GREEN

main90119-08223iAE86..4FC198305-198505

*8-1.25PX10.5-6.5,YELLOW

main90119-08498iAE86..4FC198505-198704

*8-1.25PX12-8,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iAE86..4FC198305-198704

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-12010iAE86..4FC198305-198704

32117SPACER, DRIVE PLATE, REAR

main32117-12010iAE86..4FC198305-198704

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iAE86..4FC198305-198704

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iAE86..4FC198312-198704

main90311-38129iAE86..4FC198305-198312

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iAE86..4FC198305-198704

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90101-08042iAE86..4FC198305-198605

sub90105-08137

main90105-08137iAE86..4FC198605-198704

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-14010iAE86..4FC198305-198704

sub35321-22020

sub35321-22030

sub35321-22040

sub35321-22050

sub35321-22060

35307SHAFT SUB-ASSY, STATOR

main35370-14011iAE86..4FC198305-198412

sub35370-14012

main35370-14012iAE86..4FC198412-198704

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iAE86..4FC198305-198704

T=17.286-17.235

sub35322-22020

sub35322-22030

sub35322-22040

sub35322-22050

sub35322-22060

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iAE86..4FC198305-198704

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iAE86..4FC198305-198704

9011906180

main90119-06180

9454200800

main94542-00800

17 parts on this diagram · 1 diagram in section
