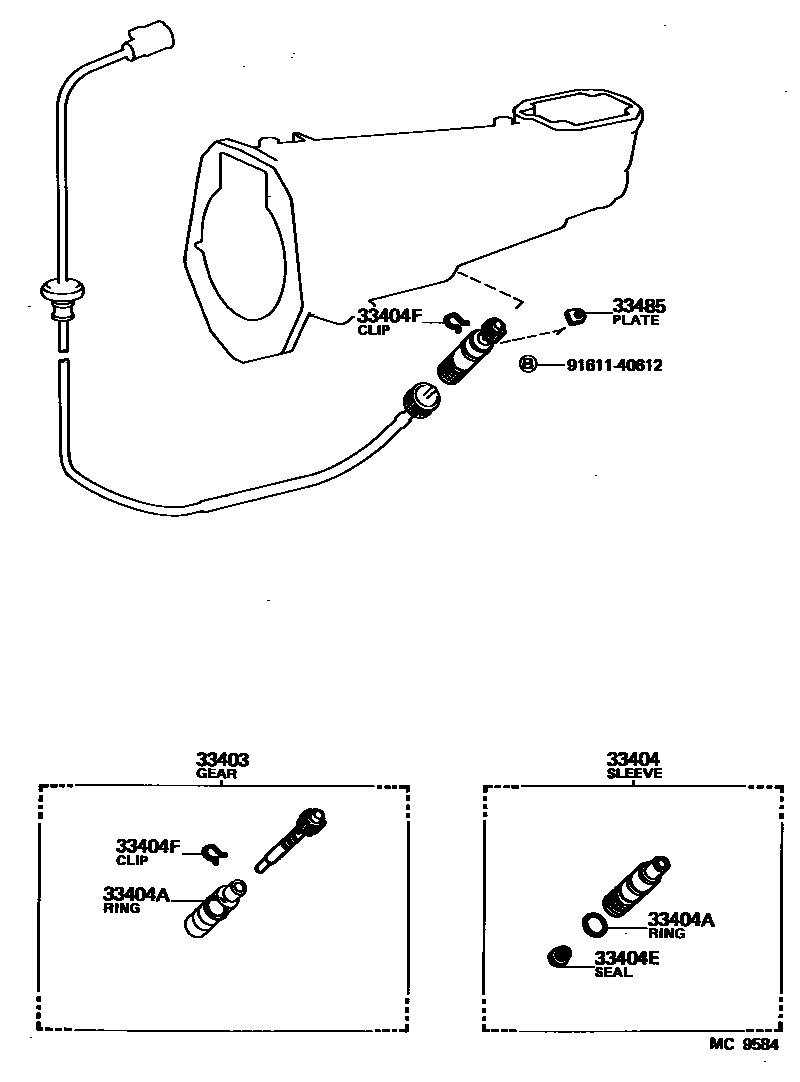

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19135iAE86..GT..EUR198410-198505

N=19,MARK 19:34,N=19,W/185/60R14 TIRE

main33403-19135iAE86..EUR,ME198505-198707

N=19,MARK 19:34,N=19

main33403-19155iAE86..5F..SR198305-198704

N=20,MARK 20:6,N=20

main33403-19175iAE86..EUG;AE86..GT..(GEN,ME)198308-198707

N=22,MARK 22:6,N=22

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iAE86..5F198305-198707

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iAE86..5F198305-198707

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE86..5F198305-198707

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE86..5F198305-198707

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iAE86..5F198305-198707

9161140612

main91611-40612

7 parts on this diagram · 1 diagram in section
