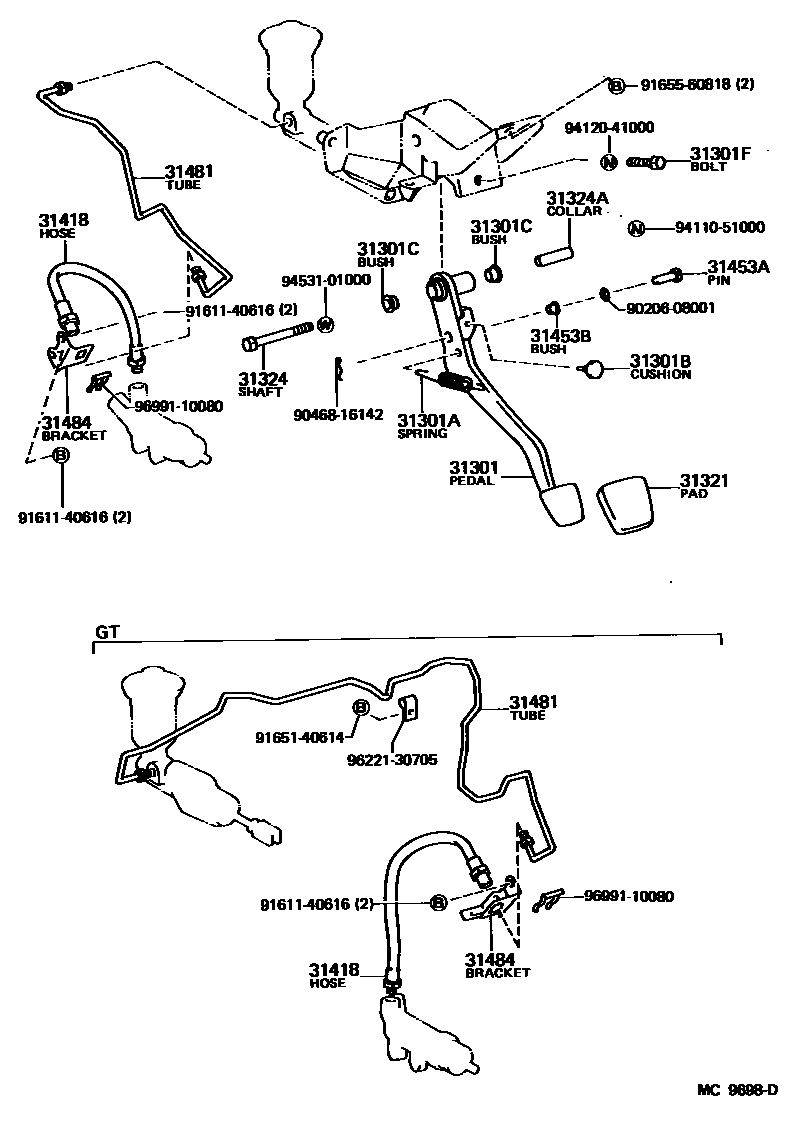

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12170iAE86..LHD..5F198305-198707

main31301-12240iAE86..RHD198305-198704

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14003iAE86..5F198305-198707

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAE86..5F198305-198707

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iAE86..5F198305-198707

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAE86..5F198305-198707

31321PAD, CLUTCH PEDAL

main31321-12030iAE86..5F198305-198707

31324SHAFT, CLUTCH PEDAL

main90101-10015iAE86..LHD..5F198305-198707

main90101-10100iAE86..RHD198305-198704

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10002iAE86..RHD198305-198704

main90387-10003iAE86..LHD..5F198305-198707

31418HOSE, CLUTCH

main90947-02440iAE86..5F198305-198707

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAE86..5F198305-198707

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAE86..5F198305-198707

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-12080iAE86..LHD..5F..SR198305-198707

main31481-12120iAE86..LHD..GT198308-198707

main31481-12130iAE86..RHD..SR198305-198704

main31481-12140iAE86..RHD..GT198308-198704

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-12030iAE86..GT198308-198707

main31484-14050iAE86..5F..SR198305-198704

9020608001

main90206-08001

9046816142

main90468-16142

9161140616

main91611-40616

9165140614

main91651-40614

9165560818

main91655-60818

9411051000

main94110-51000

9412041000

main94120-41000

9453101000

main94531-01000

9622130705

main96221-30705

9699110080

main96991-10080

23 parts on this diagram · 2 diagrams in section
