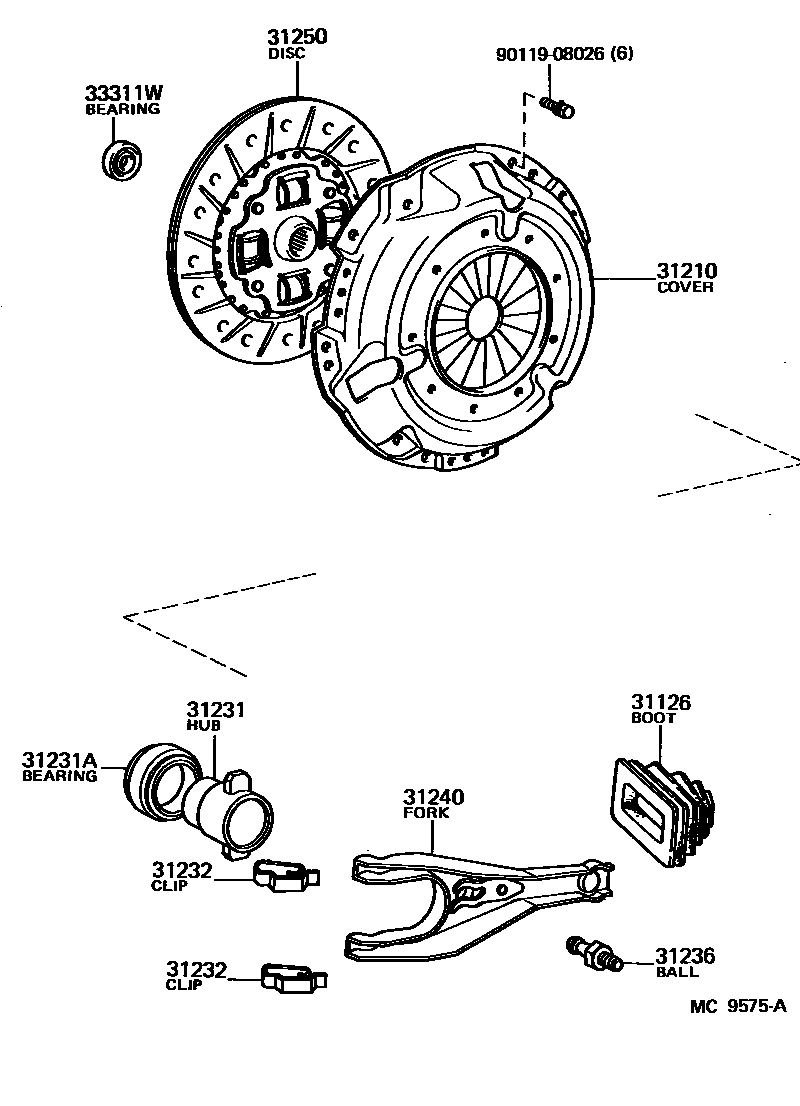

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iAE86..5F198305-198707

31210COVER ASSY, CLUTCH

main31210-12080iAE86..GT198308-198704

sub31210-12120

main31210-12100iAE86..5F..SR198305-198507

sub31210-12180

main31210-12120iAE86198704-198707

sub31210-12121

main31210-20200iAE86..5F..SR198507-198704

sub31210-16100

31231HUB, CLUTCH RELEASE BEARING

main31231-12050iAE86..5F198305-198707

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iAE86..5F198305-198707

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iAE86..5F198305-198707

31236BALL, RELEASE FORK

main31236-30060iAE86..5F198305-198707

31240FORK ASSY, CLUTCH RELEASE

main31204-20080iAE86..5F198305-198707

31250DISC ASSY, CLUTCH

main31250-12081iAE86..5F..SR198305-198704

sub31250-12184

main31250-12180iAE86..GT198308-198404

sub31250-12182

main31250-12182iAE86..GT198404-198409

sub31250-12183

main31250-12183iAE86..GT198409-198412

sub31250-12184

main31250-12184iAE86..GT198412-198707

sub31250-12290

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iAE86..5F198305-198707

9011908026

main90119-08026

10 parts on this diagram · 2 diagrams in section
