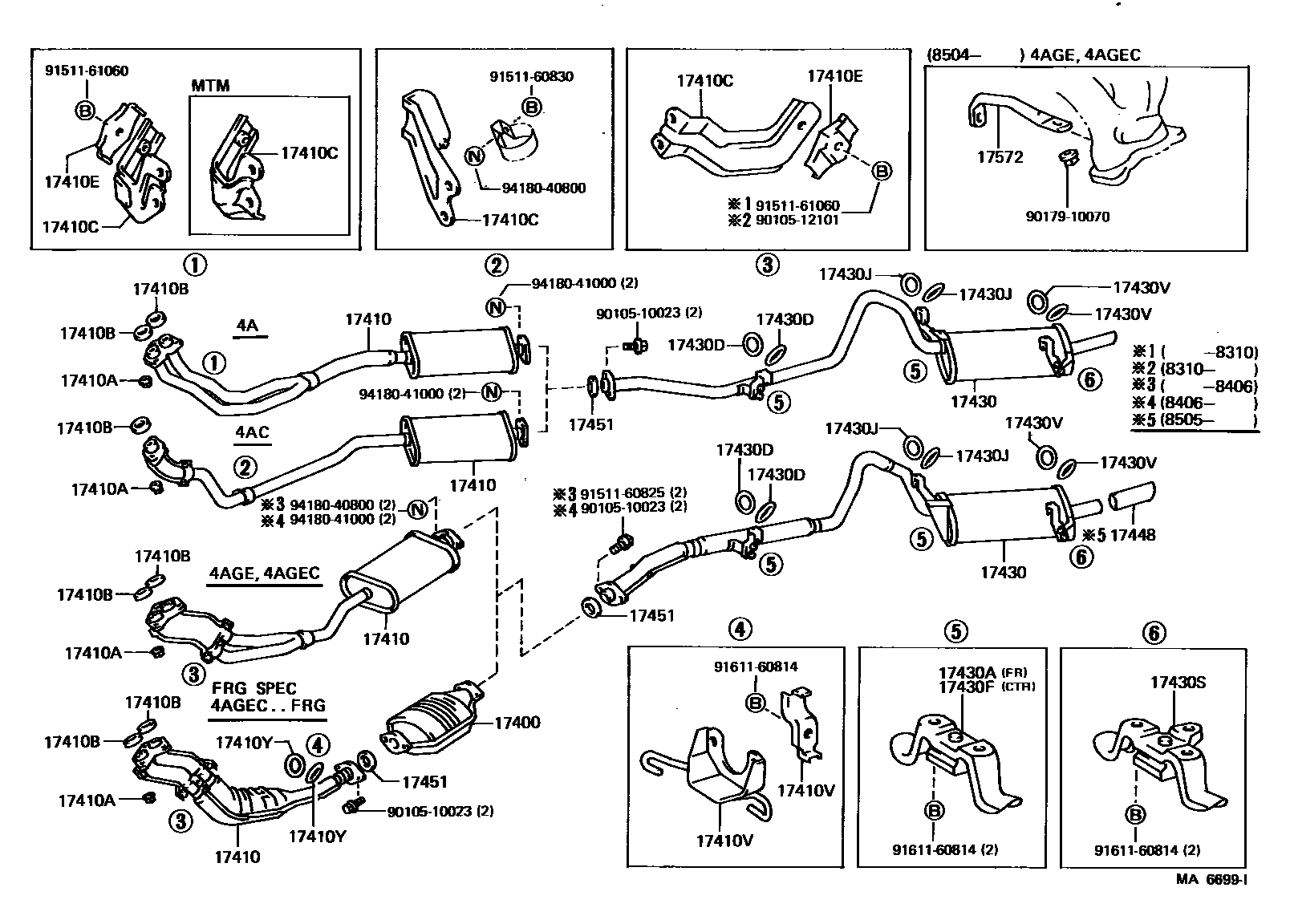

EXHAUST PIPE

17400CONVERTER ASSY, W/CATALYST

main18450-16050i4AGEC..AE86198504-198505

FRG SPEC

sub18450-16140

sub18450-16210

main18450-16050i4AGEC..AE86..FRG198505-198605

sub18450-16140

sub18450-16210

main18450-16140i4AGEC..AE86..FRG198605-198704

sub18450-16340

17410PIPE ASSY, EXHAUST, FRONT

main17410-16010i4AGEC..AE86198504-198505

FRG SPEC

sub17410-16011

main17410-16011i4AGEC..AE86..FRG198505-198704

main17410-16020i4AGE..AE86198308-198310

sub17410-16021

main17410-16021i4AGE..AE86198310-198406

sub17410-16022

main17410-16022i4AGE..AE86;4AGEC..AE86..SDZ198406-198707

main17410-16030i4AC..AE86..ARL198305-198505

main17410-16040i4A..AE86198305-198704

main17410-16160i4AC..AE86..SDZ198308-198502

sub17410-16030

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010i4A#..AE86198305-198404

main90179-10070i4A,4AC,4AG#..AE86198404-198707

17410BGASKET, EXHAUST PIPE

main90917-06001i4A..AE86198305-198704

sub90917-06038

main90917-06004i4AC,4AG#..AE86198305-198707

sub90917-06039

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-15110i4A..AE86..4FC198305-198704

main17571-16010i4AGE..AE86198308-198310

sub17571-16090

main17571-16030i4AC..AE86..SDZ198308-198502

main17571-16040i4A..AE86..5F198305-198704

main17571-16060i4AC..AE86..ARL198305-198505

main17571-16090i4AG#..AE86198310-198504

sub17571-16130

main17571-16130i4AG#..AE86198504-198707

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main17578-15030i4AGE..AE86198308-198310

sub17578-15031

main17578-15031i4AG#..AE86198310-198707

main90917-04046i4A..AE86198305-198704

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17503-16010i4AGEC..AE86198504-198505

CTR,FRG SPEC

main17503-16010i4AGEC..AE86..FRG198505-198704

CTR

main17588-16010i4AGEC..AE86198504-198505

LH,FRG SPEC

main17588-16010i4AGEC..AE86..FRG198505-198704

LH

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main90301-36001i4AGEC..AE86198504-198505

FRG SPEC

main90301-36001i4AGEC..AE86..FRG198505-198704

17430PIPE ASSY, EXHAUST, TAIL

main17430-16011i4AGEC..AE86198504-198505

FRG SPEC

main17430-16050i4AGE..AE86198308-198401

sub17430-16051

main17430-16051i4AGE..AE86198401-198406

sub17430-16052

main17430-16052i4AGE..AE86;4AGEC..AE86..SDZ198406-198707

main17430-16060i4A,4AC..AE86198305-198704

main17430-16230i4AGEC..AE86..FRG198505-198704

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-13020i4A,4AC,4AG#..AE86198305-198707

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-36001i4A,4AC,4AG#..AE86198305-198707

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17506-13020i4A,4AC,4AG#..AE86198305-198707

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34207i4A,4AC..AE86198305-198704

main90301-36001i4AG#..AE86198308-198707

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-13010i4A,4AC,4AG#..AE86198305-198707

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34207i4A,4AC..AE86198305-198704

main90301-36001i4AG#..AE86198308-198707

17448BAFFLE, TAILPIPE

main17406-70010i4AGEC..AE86..FRG198505-198611

sub17406-79025

main17406-79025i4AGEC..AE86198611-198704

17451GASKET, EXHAUST PIPE

main90917-06004i4A,4AC..AE86198305-198704

sub90917-06039

main90917-06008i4AGE..AE86198308-198704

sub90917-06047

main90917-06012i4AG#..AE86198402-198707

sub90917-06045

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-16010i4AG#..AE86198504-198707

9010510023

main90105-10023

9010512101

main90105-12101

9017910070

main90179-10070

9151160825

main91511-60825

9151160830

main91511-60830

9151161060

main91511-61060

9161160814

main91611-60814

9418040800

main94180-40800

9418041000

main94180-41000

27 parts on this diagram · 1 diagram in section
