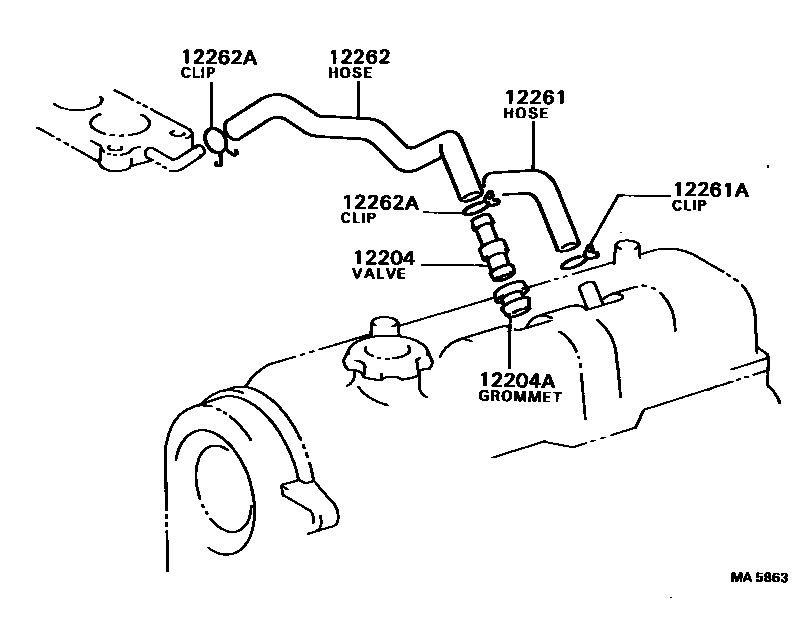

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-15022i4A,4AC..AE86¥2,810198305-198309

main12204-15030i4A,4AC..AE86¥1,290198411-198704

main12204-71010i4A,4AC..AE86¥1,190198309-198411

sub12204-15030¥1,290

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i4A,4AC..AE86¥390198305-198704

12261HOSE, VENTILATION

main12261-15030i4A,4AC..AE86¥640198305-198704

main12261-16020i4AG#..AE86¥1,240198308-198707

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-16010i4A,4AC..AE86¥250198305-198704

12262HOSE, VENTILATION, NO.2

main12262-15050i4A,4AC..AE86¥970198305-198404

sub12262-15060¥990

main12262-15060i4A,4AC..AE86¥990198404-198704

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13103i4A,4AC..AE86¥110198305-198704

6 parts on this diagram · 2 diagrams in section
