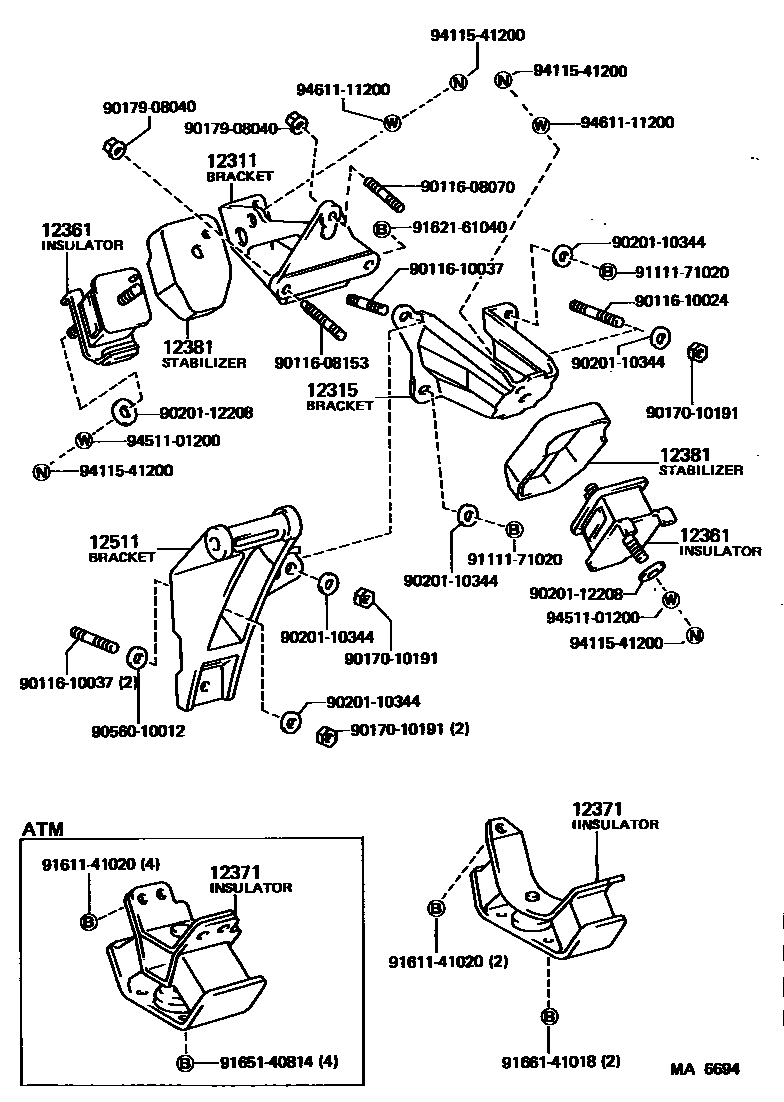

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-15090i4A,4AC,4AG#..AE86198305-198707

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-15060i4A,4AC,4AG#..AE86198305-198707

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-15040×2i4AG#..AE86..EUR,GEN198505-198704

main12361-16010×2i4AG#..AE86198308-198505

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-16010i4A#..AE86..5F198305-198408

main12371-16020i4A..AE86..4FC198305-198704

main12371-16030i4AGE..AE86198408-198412

main12371-33010i4A..AE86..5F198409-198704

12381STABILIZER, ENGINE MOUNTING

main12381-15040×2i4A,4AC,4AG#..AE86198305-198503

main12381-16010×2i4AG#..AE86198503-198707

12511BRACKET, ALTERNATOR, NO.1

main12511-15011i4A,4AC..AE86198305-198704

main12511-16011i4AG#..AE86198308-198707

9011608070

main90116-08070

9011608153

main90116-08153

9011610024

main90116-10024

9011610037

main90116-10037

9017010191

main90170-10191

9017908040

main90179-08040

9020110344

main90201-10344

9020112208

main90201-12208

9056010012

main90560-10012

9111171020

main91111-71020

9161141020

main91611-41020

9162161040

main91621-61040

9165140814

main91651-40814

9166141018

main91661-41018

9411541200

main94115-41200

9451101200

main94511-01200

9461111200

main94611-11200

23 parts on this diagram · 2 diagrams in section
