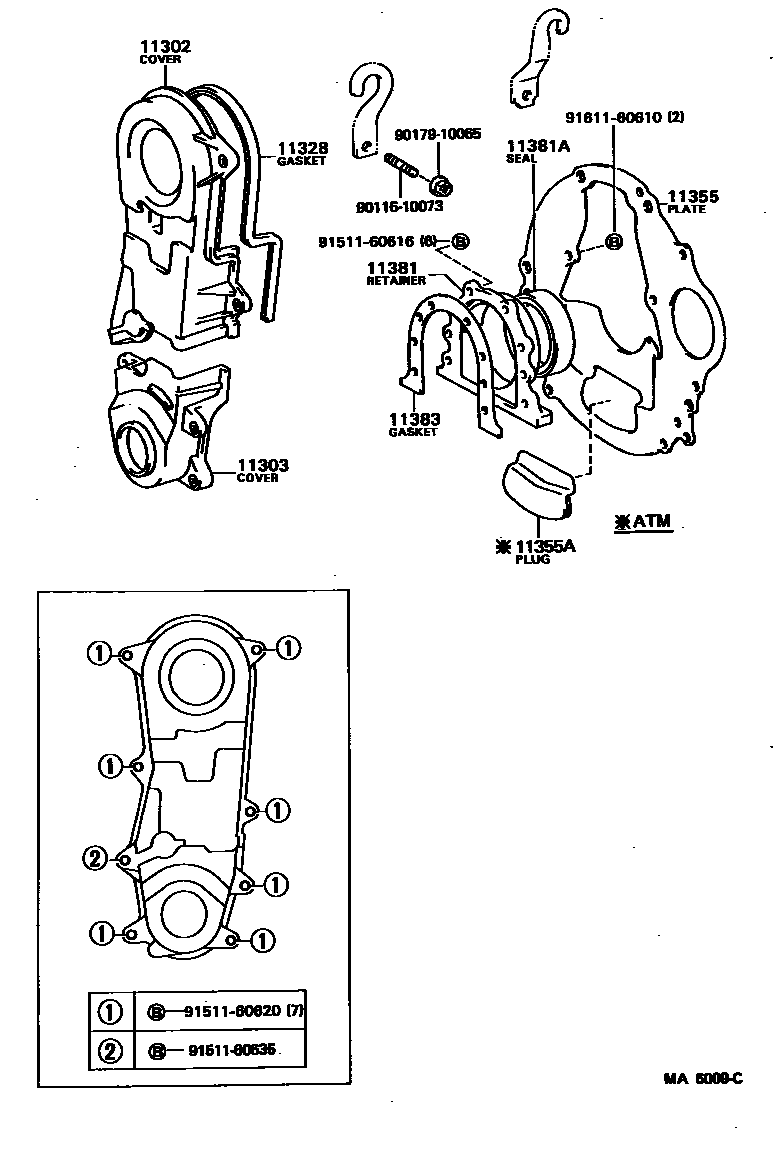

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15020i4A,4AC..AE86198305-198704

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15020i4A,4AC..AE86198305-198704

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-15020i4A,4AC..AE86198305-198704

11355PLATE, REAR END

main11355-15021i4A,4AC,4AG#..AE86..5F198305-198707

main11355-15031i4A..AE86..4FC198305-198704

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4A..AE86..4FC198305-198704

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4A,4AC,4AG#..AE86198305-198707

11381ASEAL, ENGINE REAR OIL

main90311-70004i4A,4AC,4AG#..AE86198305-198707

sub90311-70007

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i4A,4AC,4AG#..AE86198305-198707

sub11383-15011

9011610073

main90116-10073

9017910065

main90179-10065

9151160616

main91511-60616

9151160620

main91511-60620

9151160635

main91511-60635

9161160610

main91611-60610

14 parts on this diagram · 2 diagrams in section
