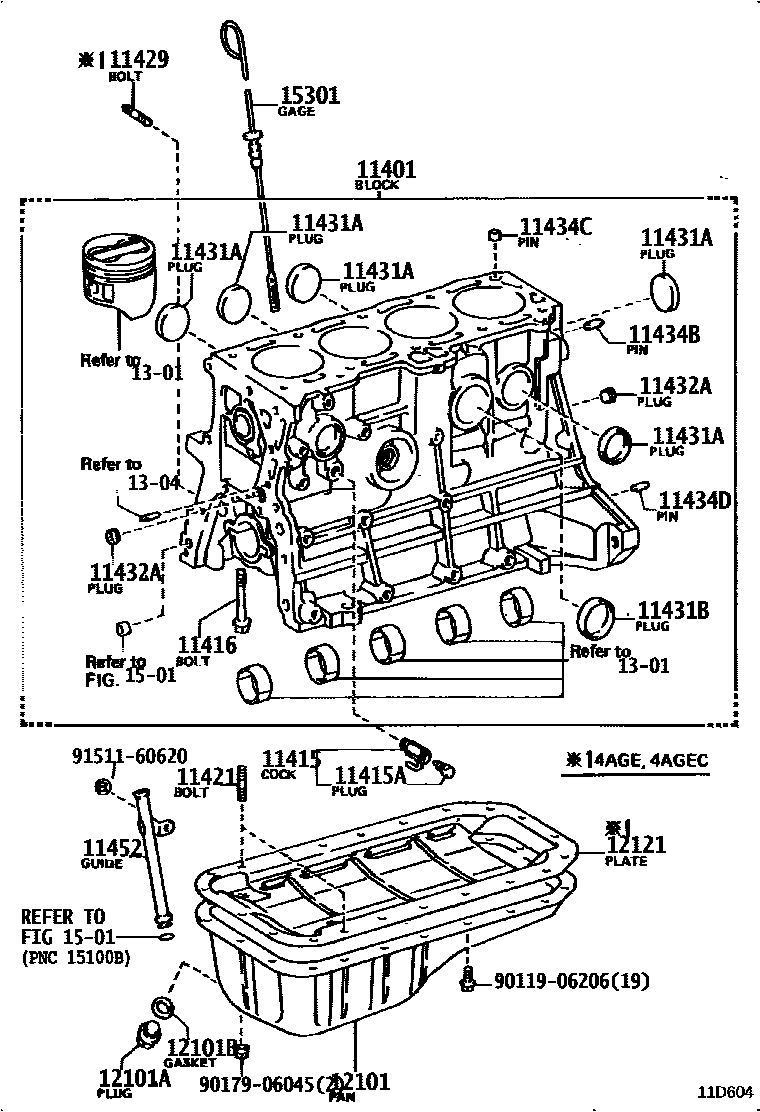

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-19195i4A,4AC..AE86198305-198704

sub11401-19196

main11401-19215i4AGE..AE86..GEN,ME198308-198707

sub11401-19216

main11401-19235i4AGE..AE86..EUG198308-198704

sub11401-19236

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09079i4A#..AE86198305-198406

main90910-09088i4A,4AC,4AG#..AE86198406-198707

sub90345-52003

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90109-10023i4A#..AE86198305-198406

main90910-09087i4A,4AC,4AG#..AE86198406-198707

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i4A,4AC,4AG#..AE86198305-198707

*10-1.25PX61-18

11421BOLT, STUD(FOR OIL PAN)

main90116-06022×2i4A#..AE86198305-198407

main90116-06049×2i4A,4AC,4AG#..AE86198407-198707

11429BOLT, STUD(FOR ALTERNATOR BRACKET)

main90116-08170i4AG#..AE86198308-198707

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500×6i4A,4AC,4AG#..AE86198305-198707

OD=35

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i4A,4AC,4AG#..AE86198305-198707

OD=40

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008×2i4A,4AC,4AG#..AE86198305-198707

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i4A,4AC,4AG#..AE86198305-198707

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017×2i4A,4AC,4AG#..AE86198305-198707

L=12,OD=13

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i4A,4AC,4AG#..AE86198305-198707

L=14,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-15010i4A,4AC,4AG#..AE86198305-198707

12101PAN SUB-ASSY, OIL

main12101-15040i4A,4AGE..AE86..GEN198305-198407

main12101-15090i4A,4AC..AE86198408-198704

main12101-16010i4AGE..AE86..EUR,ME198308-198407

W/OIL COOLER

main12101-16030i4AG#..AE86..EUR,ME198407-198707

W/OIL COOLER

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i4A,4AC,4AG#..AE86198407-198707

main90341-18089i4A#..AE86198305-198407

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i4A,4AC,4AG#..AE86198407-198607

main90430-12019i4A,4AG#..AE86198607-198707

sub90430-12028

main90430-18244i4A#..AE86198305-198407

sub90430-18023

12121PLATE, OIL PAN BAFFLE, NO.1

main12122-16010i4AGE..AE86198308-198407

main12122-16011i4AG#..AE86198608-198707

main12122-16020i4AG#..AE86198605-198608

1301

1304

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15020i4A,4AC..AE86198305-198704

main15301-16010i4AG#..AE86198308-198707

9011906206

main90119-06206

9017906045

main90179-06045

9151160620

main91511-60620

24 parts on this diagram · 1 diagram in section
