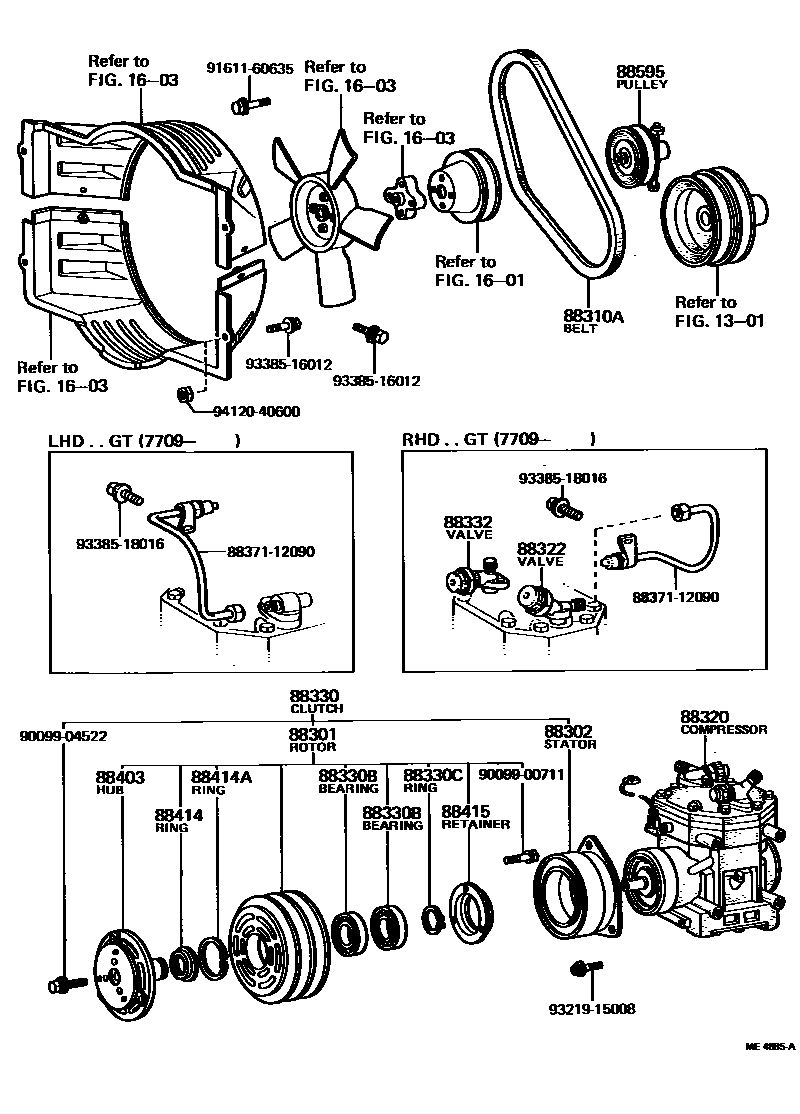

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1301

1601

1603

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88401-12032iKE3#..LHD197408-197601

main88401-14040iKE3#,50..GEN197709-197805

main88401-20050iKE3#,50,TE47..RHD197701-197709

sub88401-14060

main88412-12040iKE30,35,36,50,TE47,51..GEN197805-198107

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12021iKE3#,TE47..RHD..GEN197408-197511

main88411-12050iKE3#,50..GEN197709-197805

main88411-14020iKE30,35,36,50..GEN197805-198107

sub88411-14040

main88411-20060iKE3#,50,TE47..RHD197701-197709

main88411-22040iTE47,51..GEN197805-197908

sub88411-14040

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99321-00850iTE47..GT197709-197805

main99322-00930iKE30,35,36,50..GEN197805-198107

L=930

main99322-00950iTE47..GEN197709-197805

sub99322-50950

main99322-00980iKE3#,50..GEN197709-197805

main99522-10958iTE47..RHD197408-197511

sub99322-00955

main99522-10964iTE47,51..RHD197511-197701

sub90099-82006

main99522-10976iKE3#,50..ARL,EUR,GEN197408-197701

sub99322-00975

88320COMPRESSOR ASSY, COOLER

main88320-12130iKE30,35,36,50..GEN197805-198107

main88320-12150iTE47,51..LHD..GEN197805-197908

main88320-12160iTE47,51..RHD..GEN197805-197908

main88320-14010iTE47..RHD197709-197805

main88320-14020iTE47..LHD197709-197805

main88320-20140iKE3#..GEN197701-197708

main88320-20150iTE47,51..RHD..(DLX,GSL,LT,ST)197408-197701

main88320-20170iKE50..GEN197709-197805

88322VALVE, COOLER COMPRESSOR SUCTION SERVICE

main88371-12110iTE47..RHD..GT197709-197902

main88371-12130iKE30,35,36,50..GEN197805-198107

main88371-12140iTE47,51..RHD..GEN197805-197908

main88371-12150iTE47,51..LHD..GEN197805-197908

88330CLUTCH ASSY, MAGNET

main88410-12022iKE3#,TE47..RHD..GEN197408-197511

main88410-12080iKE30,35,36,50..GEN197805-198107

main88410-14050iKE50..GEN197709-197805

sub88410-14070

main88410-20071iKE3#,50,TE47..RHD197701-197709

main88410-22060iTE47,51..GEN197805-197908

sub88410-14090

88330BBEARING, MAGNET CLUTCH

main90099-10083×2iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197701

main90099-10108×2iTE47,51..GEN197805-197908

sub90099-10127

main90099-10117×2iKE30,35,36,50..GEN197805-198107

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90096-90007iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197701

main90099-07094iKE30,35,36,50,TE47,51197805-198107

88332VALVE, COOLER COMPRESSOR DISCHARGE SERVICE

main88372-12090iKE30,35,36,50..GEN197805-198107

main88372-12100iTE47,51..GEN197805-197908

main88372-14020iTE47..RHD..GT197709-197902

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12020iKE3#,50,TE47..RHD197701-197709

main88403-20031iKE3#..LHD197408-197601

main88403-26030iKE30,35,36,50,TE47,51..GEN197805-198107

sub88403-30270

88414RING, SHIELD

main88415-12030iKE3#,TE47..RHD..GEN197408-197511

88414ARING, SHIELD SNAP

main90096-90005iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197701

88415RETAINER, MAGNET CLUTCH BEARING, NO.1

main88415-12040iKE3#,TE47..RHD..GEN197408-197511

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12030iKE3#,50..ARL,EUR,GEN197408-197701

main88440-12050iKE30,35,36,50..GEN197805-198107

main88440-14010iTE47..RHD197701-197709

main88440-30250iTE47,51..GEN197805-197908

sub88440-28050

8837112090FAN, COOLER BLOWER, NO.2

main88371-12090

9009900711

main90099-00711

9009904522

main90099-04522

9161160635

main91611-60635

9321915008

main93219-15008

9338516012

main93385-16012

9338518016

main93385-18016

9412040600

main94120-40600

25 parts on this diagram · 4 diagrams in section
