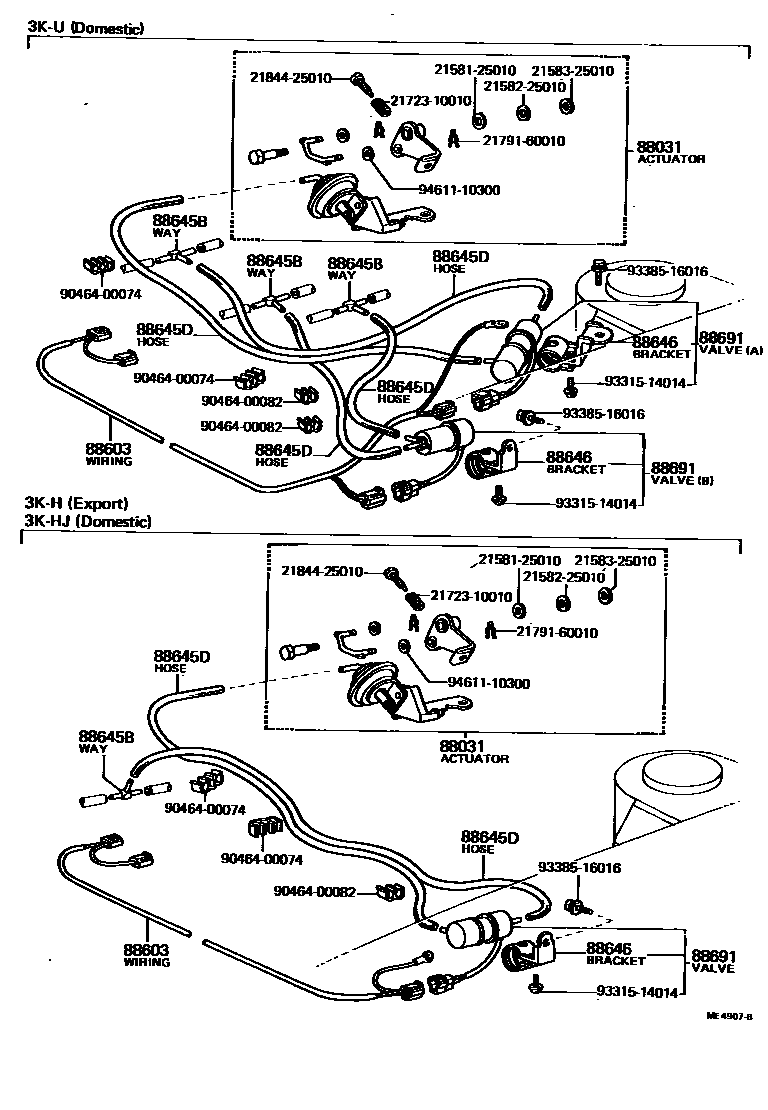

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main88031-12040iKE3#,50..RHD..(ARL,GEN)197511-197701

88603WIRE, IDLE UP DEVICE

main88648-12021iKE3#,50..RHD..(ARL,GEN)197511-197701

main88648-12031iTE47,51..RHD..(DLX,GSL,LT,ST)197511-197701

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04001iKE3#,50..RHD..(ARL,GEN)197511-197701

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10060iKE3#,50..RHD..(ARL,GEN)197511-197701

*H,L=600,MARK=#0

sub90999-92003

main95411-10095iTE47,51..RHD..(DLX,GSL,LT,ST)197511-197701

*H,L=750,MARK=#0

sub90999-92004

main95411-19960iTE47,51..RHD..(DLX,GSL,LT,ST)197511-197701

*H,L=600,MARK=#*

sub90999-92003

main95411-19995iKE3#,50..RHD..(ARL,GEN)197511-197701

*H,L=750,MARK=#*

sub90999-92004

88646BRACKET, IDLE UP DEVICE, NO.1

main88688-12010iKE3#,50,TE47,51..RHD..(DLX,GSL,LT,ST,STD)..(ARL,GEN)197511-197701

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88691-14030iKE3#,50,TE47,51..RHD..(DLX,GSL,LT,ST,STD)..(ARL,GEN)197511-197701

2158125010SHIM, 1ST THROTTLE SHAFT

main21581-25010

2158225010

main21582-25010

2158325010SHIM, 2ND THROTTLE SHAFT

main21583-25010

2172310010SPRING, IDLE ADJUSTING

main21723-10010

2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-60010

2184425010SCREW, CHOKE LEVER

main21844-25010

9046400074

main90464-00074

9046400082

main90464-00082

9331514014

main93315-14014

9338516016

main93385-16016

9461110300

main94611-10300

17 parts on this diagram · 2 diagrams in section
