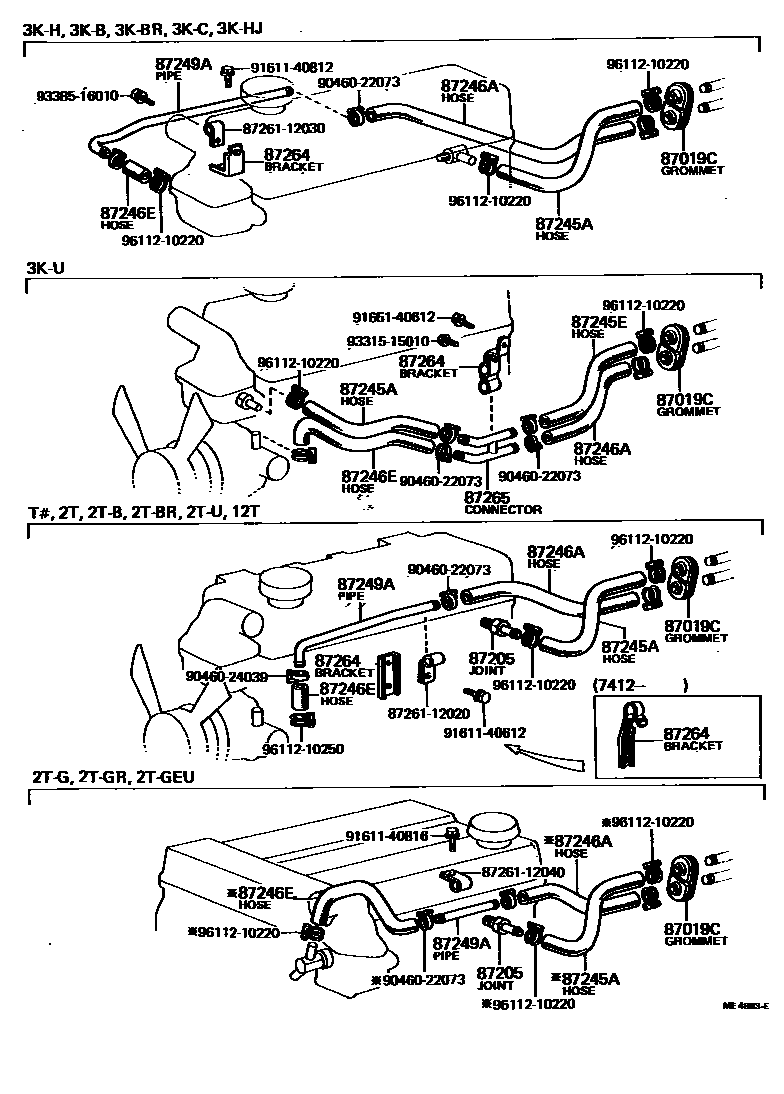

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0007 1

87019CGROMMET, HEATER HOSE

main90480-01011iTE3#;KE3#,50,TE47,51..ARL,EUR,GEN197504-198107

main90480-01466iTE3#;KE3#,TE47..GEN197408-197504

sub90480-01011

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-12020iTE3#,47,51197408-198004

87245AHOSE, HEATER WATER, INLET A

main87245-12090iKE3#..EUR,GEN197408-197511

sub87245-12091

main87245-12091iKE3#,50..ARL,EUR,GEN197511-197805

main87245-12111iTE3#,51197408-198004

main87245-12200iTE47..GT197805-197902

main87245-12261iKE3#,50..ARL197708-198107

87245EHOSE, HEATER WATER, INLET E

main87245-12271iKE3#,50..ARL197708-198107

87246AHOSE, HEATER WATER, OUTLET A

main87245-12080iKE3#,50197408-197611

sub87245-12230

main87245-12120iTE47..GT197408-197805

main87245-12221iTE3#,51197701-198004

main87245-12230iKE3#,50197611-198107

main87245-12300iKE35..SR197805-198107

main87245-12330iTE47..GT197805-197902

main99552-20270iTE47..LT,ST197408-197701

sub99552-20300

87246EHOSE, HEATER WATER, OUTLET E

main87245-12070iTE47..GT197408-197805

main87245-12160iKE3#,50197511-197805

main87245-12241iTE47..LT,ST197701-198004

main87245-12281iKE3#,50..ARL197708-197805

sub87245-12282

main87245-12282iKE3#,5#..DLX,STD197805-198107

main87245-12320iKE35..SR197805-197908

main87245-12340iTE47..GT197805-197902

main99552-20050iKE3#..EUR,GEN197408-197511

*H,L=50

sub99552-20100

main99552-30055iTE47..LT,ST197408-197701

sub99552-30075

87249APIPE, HEATER WATER OUTLET, A

main87248-12040iTE47..LT,ST197408-197412

sub87248-12041

main87248-12041iTE47..LT,ST197412-197701

main87248-12051iTE47..GT197408-197805

main87248-12060iKE3#..EUR,GEN197408-197511

sub87248-12061

main87248-12061iKE3#,50197511-197805

main87248-12090iTE47..LT,ST197701-198004

main87248-12120iKE3#,50..ARL197708-198107

main87248-12140iTE47..GT197805-197902

87264BRACKET, HEATER WATER HOSE

main87263-12021iTE47..LT,ST197408-197412

main87263-12030iKE3#..GEN197408-197412

main87263-12031iKE3#..EUR,GEN197412-197511

sub87263-12030

sub87261-12030

sub93385-16010

main87263-12032iKE3#,50..ARL,EUR,GEN197511-198107

main87263-12040iTE3#,51197412-197608

sub87263-12041

main87263-12070iTE47..LT,ST197608-197701

main87263-12071iTE3#,47,51197701-198004

main87263-12111iKE3#,50..ARL197708-198107

HEATER INLET

main87263-12120iKE3#,5#197708-198107

HEATER OUTLET

87265CONNECTOR, HEATER WATER HOSE

8726112020BRACKET, HEATER PUMP

main87261-12020

8726112030BRACKET, HEATER PUMP

main87261-12030

8726112040BRACKET, HEATER PUMP

main87261-12040

9046022073

main90460-22073

9046024039

main90460-24039

9161140612

main91611-40612

9161140812

main91611-40812

9161140816

main91611-40816

9165140612

main91651-40612

9331515010

main93315-15010

9338516010

main93385-16010

9611210220

main96112-10220

9611210250

main96112-10250

22 parts on this diagram · 3 diagrams in section
