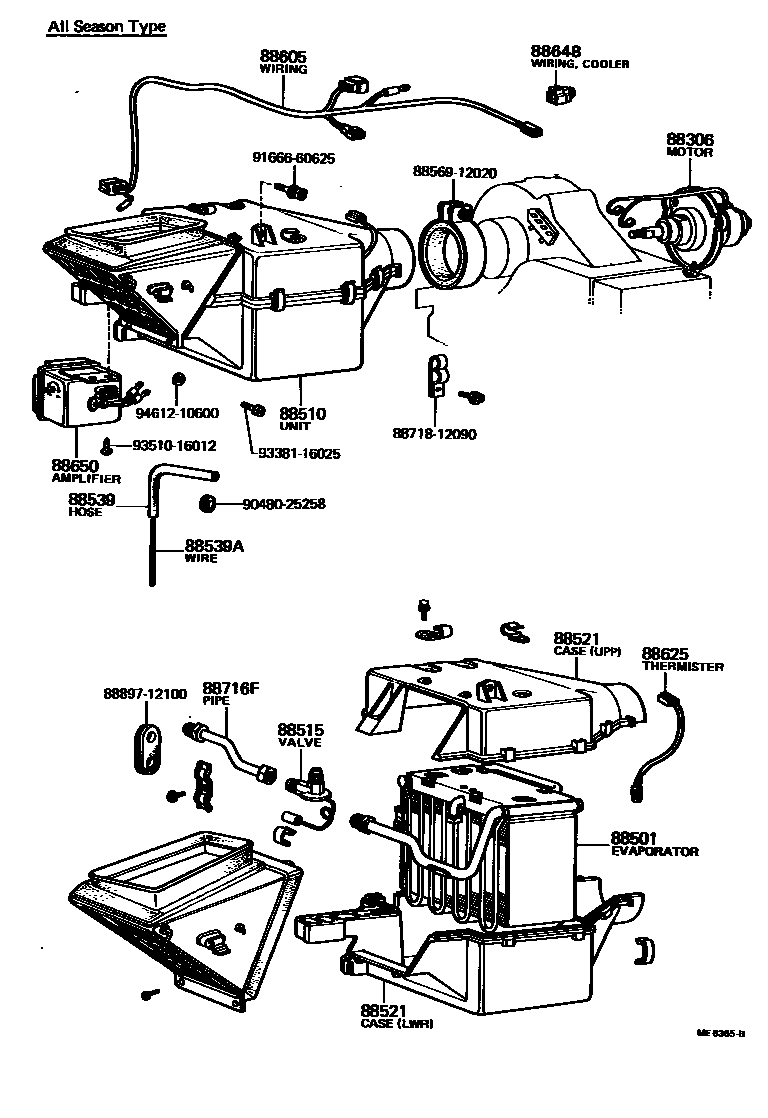

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1

88306MOTOR SUB-ASSY, COOLER BLOWER, NO.1

main87104-12113iKE30,35..LHD..A20..GEN197805-197908

main88550-12050iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197701

main88550-12070iKE3#,50,TE47..RHD197701-197805

main88550-12071iKE30,35,36,50,TE47,51..RHD..GEN197805-198107

main88550-12111iKE30,35,36,50..LHD..MTM..GEN197708-198002

sub87104-12112¥26,700

main88550-12112iTE47..LHD197709-197908

main88550-30300iKE3#..LHD¥22,200197408-197708

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12050iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197611

main88501-12051iKE3#,50,TE47,51..RHD..(ARL,GEN)197611-197701

sub88501-12052

main88501-12052iKE3#,50..RHD197701-197709

main88501-12081iTE47..RHD197701-197805

sub88501-12080

main88501-12100iKE3#,50..LHD197708-197805

main88501-12110iTE47..LHD197709-197805

main88501-12120iKE30,35,36,50,TE47,51..RHD..GEN197805-197902

sub88501-12200

main88501-12130iTE47,51..LHD..GEN197805-197902

sub88501-12220

main88501-12140iKE30,35,36,50..LHD..GEN197805-197902

sub88501-12210

main88501-12200iKE30,35,36,50,TE51..RHD..GEN197902-198107

main88501-12210iKE30,35,36,50..LHD..GEN197902-198002

main88501-12220iTE51..LHD..GEN197902-197908

main88501-30520iKE3#..LHD197408-197701

main88501-30530iKE3#..LHD197701-197708

88510UNIT ASSY, COOLER

main88510-12050iKE3#,TE47..RHD..GEN197408-197504

sub88510-12051

main88510-12051iKE3#,TE47..RHD..GEN197504-197602

sub88510-12052

main88510-12053iKE3#,50,TE47,51..RHD..(ARL,GEN)197602-197611

sub88510-12054

main88510-12054iKE3#,50,TE47,51..RHD..(ARL,GEN)197611-197701

main88510-12055iKE3#,50..RHD197701-197709

main88510-12071iKE3#..LHD197408-197701

main88510-12081iTE47..RHD197701-197709

main88510-12082iKE3#,50,TE47..RHD197709-197805

main88510-12100iKE3#,50..LHD197708-197805

main88510-12110iTE47..LHD197709-197805

sub88510-12111

main88510-12131iKE30,35,36,50,TE47,51..RHD..GEN197805-197902

sub88510-12220

main88510-12140iTE47,51..LHD..GEN197805-197902

sub88510-12240

main88510-12150iKE30,35,36,50..LHD..GEN197805-197902

sub88510-12230

main88510-12220iKE30,35,36,50,TE51..RHD..GEN197902-198107

main88510-12230iKE30,35,36,50..LHD..GEN197902-198002

main88510-12240iTE51..LHD..GEN197902-197908

main88510-30670iKE3#..LHD197701-197708

88515VALVE, COOLER EXPANSION

main88515-10010iKE3#..LHD¥7,100197408-197709

sub88515-12050¥7,100

main88515-12030iKE3#,TE47..RHD..GEN¥11,800197408-197504

sub88515-12031¥9,400

main88515-12031iKE3#,TE47..RHD..GEN¥9,400197504-197602

sub88515-12032

main88515-12032iKE3#,50,TE47,51..RHD..(ARL,GEN)197602-197611

main88515-12050iKE3#,50,TE47,51..RHD..(ARL,GEN)¥7,100197611-197805

main88515-14020iKE30,35,36,50,TE47,51..RHD..GEN¥7,100197805-197902

sub88515-20040¥8,900

main88515-20031iKE3#,50..GEN197701-197805

main88515-20040iKE30,35,36,50,TE47,51..LHD..GEN¥8,900197805-198107

sub88515-16031¥7,400

88521CASE, COOLER UNIT

main88521-12110iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197701

UPPER

main88521-12120iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197701

LOWER

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12020iKE3#,50,TE47..RHD197701-197709

main88539-12021iKE30,36..GEN197708-198107

main88539-12030iTE47..LHD197709-197805

sub88539-12021

main88539-22011iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197701

sub88539-12010

main90099-33304iKE35..LHD197701-197709

88539AWIRE, DRAIN HOSE(FOR COOLER)

main88895-12020iKE3#..LHD197408-197708

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-12051iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197701

main88605-12052iKE3#,50,TE47..RHD197701-197709

main88605-12080iKE3#..LHD197408-197701

main88605-12100iKE3#..LHD197701-197708

main88605-12111iTE47..LHD197709-197805

(B)

main88605-12130iKE3#,50,TE47..RHD197709-197805

(A)

main88605-12131iKE30,35,36,50,TE47,51..RHD..GEN197805-198107

main88605-12140iKE3#,50..LHD197708-197805

(A)

main88605-12141iKE30,35,36,50,TE47,51..LHD..GEN197805-198002

main88605-12150iTE47..LHD197709-197805

(A)

88625THERMISTOR, COOLER, NO.1

main88625-12020iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197709

main88625-12030iTE47..RHD197701-197709

main88625-12050iTE47..RHD197709-198107

sub88625-87001

main88625-20040iTE47..LHD197709-197805

main88625-22010iKE3#..LHD197408-197701

main88625-30480iKE3#..LHD197701-197709

88648WIRING, COOLER, NO.1

main82550-20020iKE50..GEN197701-198107

main88648-12120iKE30,35,36,50,TE47,51..LHD..GEN197805-197902

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-12020iTE47..RHD197701-197709

main88650-12030iTE47..LHD197709-197805

main88650-14010iKE3#..GEN197708-198002

sub88650-12050

main88650-14021iKE30,35,36,50..RHD..GEN197805-198107

sub88650-12060

main88650-22040iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197709

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-12210iKE3#,50,TE47,51..RHD..(ARL,GEN)197408-197701

main88716-12340iKE3#,50..LHD197709-197805

main88716-12360iKE3#,50,TE47..RHD197709-197805

main88716-12390iTE47,51..LHD..GEN197805-197908

main88716-12400iKE30,35,36,50..LHD..GEN197805-198107

8856912020CLAMP (FOR COOLER RELAY)

main88569-12020

8871812090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12090

8889712100VALVE, COOLER MAGNET

main88897-12100

9048025258

main90480-25258

9166660625

main91666-60625¥0

9338116025

main93381-16025¥130

9351016012

main93510-16012¥180

9461210600

main94612-10600¥240

20 parts on this diagram · 5 diagrams in section
