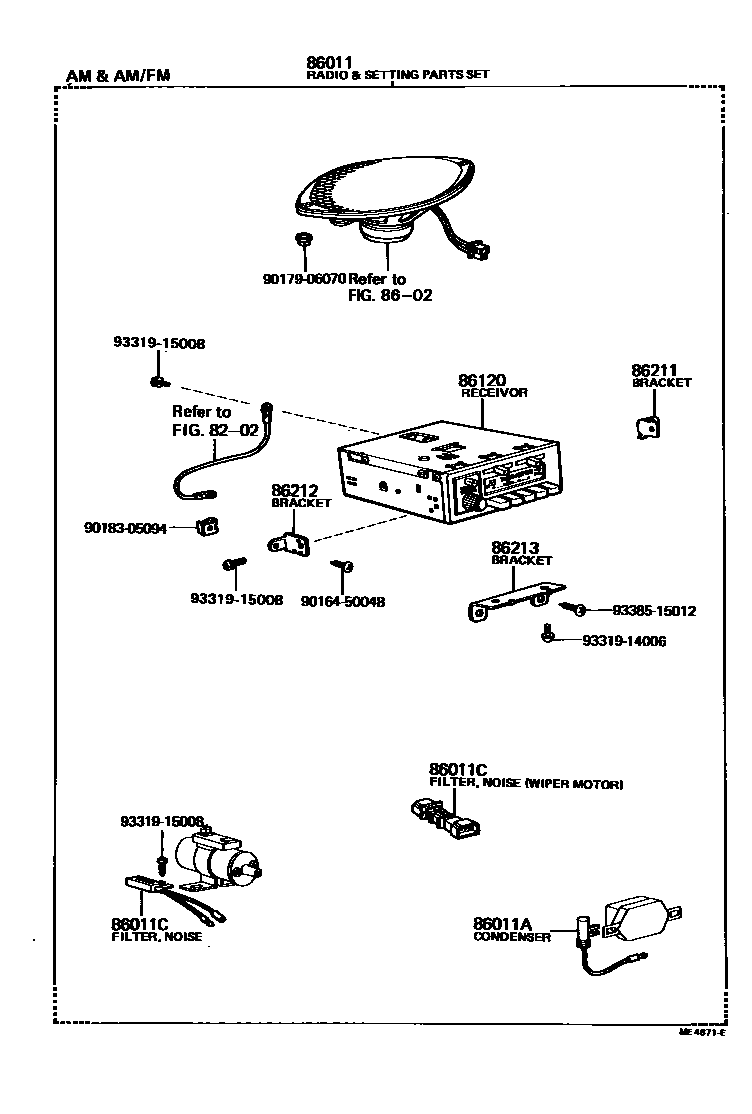

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1

8202

86011RADIO & SETTING PARTS SET

main86011-19015iKE36..STD;KE30..STD..(ARL,GEN)197408-197701

AM(MW)

main86011-19046iKE3#,50,TE47,51..EUR,GEN197609-197701

AM(MW)/FM

main86011-19055iKE3#,50,TE47,51..ARL,EUR,GEN197408-197701

AM(LW/MW)

main86011-19065iKE3#,50,TE47,51..ARL,EUR,GEN197408-197701

AM(LW/MW/UKW)

main86011-19105iKE35..SR;KE30,36..RHD;KE30..LHD..(A20,K50);KE35..(A20,K40)..DLX;KE30,36..LHD..K40..GEN;KE30,36..LHD..K40..EUG197701-198107

AM(MW)

main86011-19135iTE47,51;KE50..RHD;KE50..LHD..K40197701-197908

AM/FM

sub86011-19136

main86011-19145iKE30,35,36,50,TE47,51..EUG;KE30..RHD..K40..4D..STD..GEN197701-198107

AM(LW/MW)

main86011-19275iKE30,35,36,50,TE51..GEN197709-198107

AM(MW/SW)

86011ACONDENSER, RADIO SETTING

main90980-04010iKE55..HT,SED;KE3#,50,TE47,51..ARL,GEN197408-198107

86011CFILTER, NOISE

main90980-05009iKE3#,50,TE47,51..ARL,EUR,GEN197408-197701

IGNITION COIL

main90980-05019iTE47,51;KE50..RHD;KE50..LHD..K40197701-197908

AM/FM,WIPER MOTOR

main90980-05028iKE55..HT,SED;KE3#,50,TE47,51..ARL,GEN197701-198107

IGNITION COIL

8602

86120RECEIVER ASSY, RADIO

main86120-12090iKE3#,50,TE47,51..ARL,EUR,GEN197408-197701

AM(MW)

main86120-12121iKE3#,50,TE47,51..EUR,GEN197609-197701

AM(MW)/FM

main86120-12150iKE3#,50,TE47,51..ARL,EUR,GEN197408-197701

AM(LW/MW/UKW)

main86120-12160iKE3#,50,TE47,51..ARL,EUR,GEN197408-197701

AM(LW/MW)

main86120-12190iKE50,TE47,51..GEN197701-197707

AM/FM

main86120-12191iKE50,TE47,51..GEN197707-197709

AM/FM

main86120-12200iKE3#,55..ARL,EUR,GEN197701-198107

AM(MW)

main86120-12210iKE30,35,36,50,TE47,51..EUG;KE30..RHD..K40..4D..STD..GEN197701-197809

AM(LW/MW)

main86120-14071iKE3#..GEN197701-197704

AM/FM

main86120-14072iKE30,35,36..GEN197709-197905

AM/FM

main86120-14180iKE30,35,36,50,TE51..GEN197709-198107

AM(MW/SW)

main86120-14240iKE30,35,36..LHD..EUG197809-197908

AM(LW/MW/UKW)

sub86120-10160

86211BRACKET, RADIO, NO.1

main86201-12010iTE47,51;KE50..RHD;KE50..LHD..K40197701-197908

main86211-12010iKE3#,55..RHD197701-198107

main86211-12020iKE30,35,36..LHD197701-198002

main86214-12010iKE3#..ARL,EUR,GEN197408-197701

86212BRACKET, RADIO, NO.2

main86212-12010iKE3#,55..RHD197701-198107

main86212-12020iKE30,35,36..LHD197701-198002

main86214-12020iKE3#..ARL,EUR,GEN197408-197701

86213BRACKET, RADIO, NO.3

main86214-12050iKE50,TE47,51197408-197701

9016450048

main90164-50048

9017906070

main90179-06070

9018305094

main90183-05094

9331914006

main93319-14006

9331915008

main93319-15008

9338515012

main93385-15012

15 parts on this diagram · 4 diagrams in section
