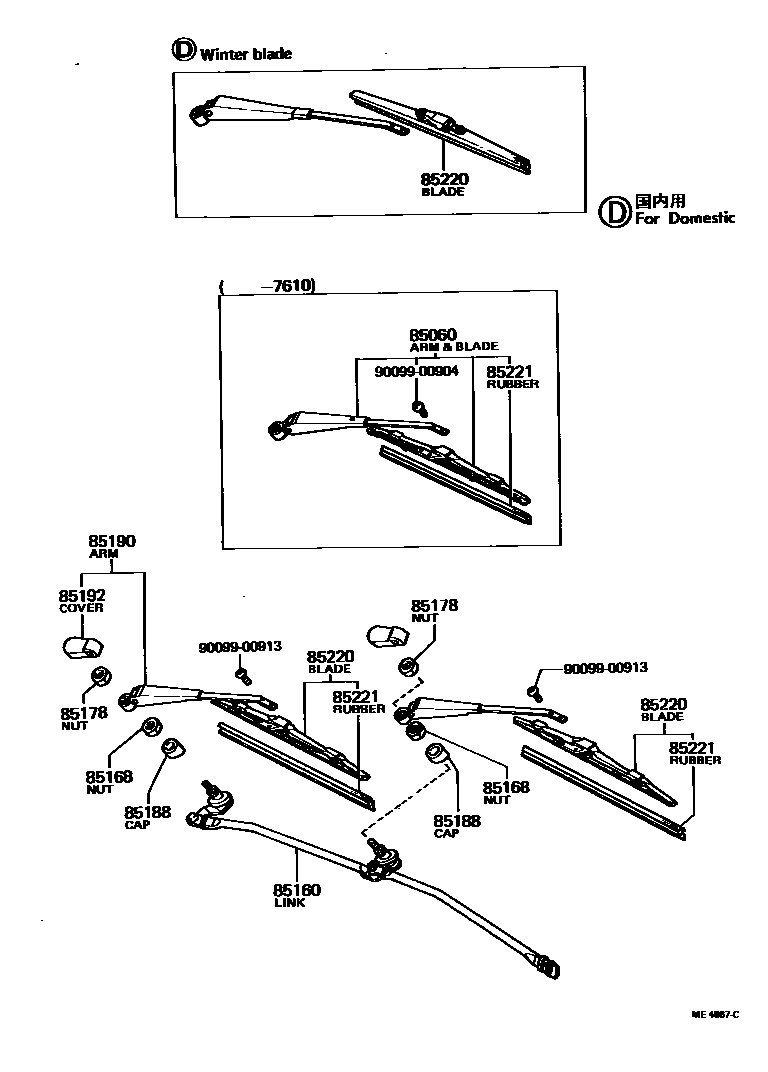

WINDSHIELD WIPER

0001 1 0002 1 0003 1

85060ARM AND BLADE ASSY, WINDSHIELD WIPER

main85060-12010iKE3#,TE3#..RHD197408-197610

sub85220-20070

sub85190-12210

sub90099-00904

main85060-12060iKE3#..LHD197408-197610

sub85220-20090

sub85190-12260

sub90099-00904

main85060-12080iTE47..RHD..LT197408-197610

sub85220-20070

sub85190-12270

sub90099-00904

main85060-12090iTE47..RHD..(GT,ST)197408-197610

sub85220-12140

sub85190-12280

sub90099-00904

main85060-12100iTE47..LHD..LT197408-197610

sub85220-20090

sub85190-12290

sub90099-00904

main85060-12110iTE47..LHD..(GT,ST)197408-197610

sub85220-12180

sub85190-12300

sub90099-00904

main85060-12130iKE50,TE51..RHD197603-197610

sub85220-20070

sub85190-12310

sub90099-00904

main85060-12140iKE50,TE51..LHD197603-197610

sub85220-20090

sub85190-12320

sub90099-00904

85160LINK ASSY, WINDSHIELD WIPER

main85160-12091iKE3#,TE3#..RHD197408-197802

DENSO

sub85160-12092

main85160-12092iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197802-198107

DENSO

main85160-12101iTE47..RHD197408-197908

TANAKA

main85160-12111iKE3#,TE3#..RHD197701-197802

TANAKA

sub85160-12091

main85160-12112iKE3#,55,TE3#..(DV,HT,SED,WG)..RHD197802-198107

TANAKA

main85160-12130iKE3#..LHD197408-197802

DENSO

sub85160-12131

main85160-12131iKE30,35,36..LHD197802-198002

DENSO

main85160-12140iTE47..LHD197408-197701

TANAKA

main85160-12190iKE50,TE47,51..RHD197603-197801

DENSO

sub85160-12191

main85160-12191iKE5#,TE47,51..(CP,LB)..RHD197801-197908

DENSO

main85160-12200iKE50,TE47,51..LHD197603-197801

DENSO

sub85160-12201

main85160-12201iKE50,TE47,51..LHD197801-197908

DENSO

main85160-12210iKE3#..LHD..EUR197509-197802

COLD SPEC,DENSO

sub85160-12211

main85160-12211iKE30,35,36..LHD..EUR197802-197908

COLD SPEC,DENSO

sub85160-12131

main85160-12220iKE50,TE47,51..LHD..EUR197603-197908

COLD SPEC,DENSO

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-12180iKE3#,50,TE3#,47,51..DLX,GSL,LT,SR,STD197408-197805

TANAKA

main85168-12190iKE3#,5#,TE3#,47,51..RHD197408-198107

TANAKA

sub85186-12170

main85186-12090iKE3#,TE3#197507-197511

DENSO

main85186-12170iKE3#,5#,TE3#,47,51197701-197902

DENSO

sub85186-12171

main85186-12171iKE3#,5#,TE3#,51197902-198107

DENSO

main85186-12210iKE3#,50,TE3#,47,51..DLX,GSL,LT,SR,STD197511-197805

DENSO

sub85186-12171

main85186-20040iKE3#,TE3#197408-197507

DENSO

sub85186-12090

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08005iKE3#,50,TE3#,47,51..DLX,GSL,LT,SR,STD197502-197805

main90176-08008iKE3#,TE47..DLX,LT,SR,STD197408-197502

sub90176-08005

main90176-08019iTE47..GT,ST197408-197706

DENSO

main90179-08015iKE3#,5#,TE47,51197706-198107

BLACK

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85179-12170iTE47..GT,ST197701-198107

DENSO

main85179-12210iKE30,35,36,50,TE3#,47,51..DLX,GSL,LT,SR,STD197511-198107

DENSO

main85179-20060iKE3#,TE3#197408-197511

DENSO

sub85179-12210

main85180-12180iKE3#,50,TE3#,47,51..DLX,GSL,LT,SR,STD197408-197805

TANAKA

main85180-12190iTE47..GT,ST197408-198107

TANAKA

85190ARM ASSY, WINDSHIELD WIPER

main85190-12210iKE3#,TE3#..RHD197610-197706

DENSO

sub85190-12221

main85190-12210iKE50,TE47,51..RHD197711-197805

LH,SILVER,DENSO

sub85190-12221

main85190-12210iKE3#..RHD197706-197805

SILVER,DENSO

sub85190-12221

main85190-12220iKE3#..RHD..EUG197701-197706

DENSO

main85190-12221iKE38,5#,TE47,51..RHD197711-198107

LH,BLACK,DENSO

main85190-12221iKE30,35,36,TE3#..RHD197706-198107

BLACK,DENSO

main85190-12230iKE3#..RHD197706-197805

SILVER,TANAKA

main85190-12230iKE3#,TE3#..RHD197610-197706

TANAKA

main85190-12230iKE50,TE47,51..RHD197711-197805

LH,SILVER,TANAKA

main85190-12240iKE3#..RHD..EUG197701-197706

TANAKA

sub85190-12220

main85190-12241iKE30,35,36,TE3#..RHD197706-198107

BLACK,TANAKA

main85190-12241iKE30,35,36,TE3#..RHD197711-198107

LH,BLACK,TANAKA

main85190-12260iKE3#..LHD197610-197710

DENSO

main85190-12270iTE47..RHD..LT197610-197701

main85190-12270iKE50,TE47,51..RHD197701-197711

SILVER,TANAKA

main85190-12270iKE50,TE47,51..RHD197711-197805

RH,SILVER,TANAKA

main85190-12280iTE47..RHD..(GT,ST)197610-197706

TANAKA

main85190-12281iTE47..RHD..(GT,ST)197711-197908

RH,BLACK,TANAKA

main85190-12281iTE47..RHD..(GT,ST)197706-197711

BLACK,TANAKA

main85190-12290iTE47..LHD..LT197610-197701

sub85190-12320

main85190-12300iTE47..LHD..(GT,ST)197610-197701

TANAKA

sub85190-12350

main85190-12310iKE50,TE47,51..RHD197711-197805

RH,SILVER,DENSO

sub85190-12221

main85190-12310iKE50,TE51..RHD197610-197701

sub85190-12221

main85190-12310iKE50,TE47,51..RHD197701-197711

SILVER,DENSO

sub85190-12221

main85190-12320iKE50,TE51..LHD197610-197701

main85190-12320iKE50,TE47,51..LHD197701-197710

DENSO

main85190-12330iKE3#..LHD..EUR197701-197706

BLACK,DENSO

main85190-12331iKE30,35,36..LHD197706-198002

BLACK,DENSO

main85190-12331iKE50,TE47,51..LHD197711-197908

RH,BLACK,DENSO

main85190-12350iTE47..LHD..(GT,ST)197701-197706

DENSO

main85190-12351iKE50,TE47,51..LHD197706-197711

BLACK,DENSO

main85190-12351iKE50,TE47,51..LHD197711-197908

LH,BLACK,DENSO

main85190-12360iTE47..RHD..(GT,ST)197701-197706

DENSO

sub85190-12221

main85190-12361iTE47..RHD..(GT,ST)197711-197908

RH,BLACK,DENSO

sub85190-12221

main85190-12361iTE47..RHD..(GT,ST)197706-197711

BLACK DENSO

sub85190-12221

main85190-12400iKE30,35,36..LHD..EUR197710-197908

BLACK,DENSO,COLD SPEC

main85190-12400iKE50,TE47,51..LHD..EUR197711-197908

RH,BLACK,DENSO,COLD SPEC

main85190-12410iKE50,TE47,51..LHD..EUR197710-197711

BLACK,DENSO

main85190-12410iKE50,TE47,51..LHD..EUR197711-197908

LH,BLACK,DENSO,COLD SPEC

85192COVER, WINDSHIELD WIPER ARM

main85192-12010iTE47..GT,ST197708-198107

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12140iTE47..RHD..(GT,ST)197610-197708

main85220-12180iTE47..LHD..(GT,ST)197610-197701

sub85220-12190

main85220-12190iTE47..LHD..(GT,ST)197701-197710

main85220-12210iKE3#,50,TE3#,47,51..RHD197708-197805

SILVER

sub85220-20070

main85220-12220iKE3#,5#,TE3#,47,51..RHD197708-198107

BLACK

sub85220-12140

main85220-12250iKE30,35,36,50,TE47,51..LHD197710-198002

BLACK

sub85220-12190

main85220-12260iKE30,35,36,50,TE47,51..LHD..EUR197710-197908

BLACK,COLD SPEC

sub85220-22101

main85220-20070iKE3#,50,TE3#,47,51..RHD197610-197708

sub85220-12140

main85220-20090iKE3#,50,TE47,51..LHD197610-197710

85221BLADE, WINDSHIELD WIPER

main85221-12060iKE3#,5#,TE3#,47,51197708-198107

sub85221-16030

main85221-12070iKE30,35,36,50,TE47,51..LHD..EUR197710-197908

COLD SPEC

sub85221-89102

main85221-14010iKE3#,50,TE3#,51197408-197701

sub85221-16020

main85221-20050iTE47197610-197708

sub85221-20H90

9009900904

main90099-00904

9009900913

main90099-00913

11 parts on this diagram · 3 diagrams in section
