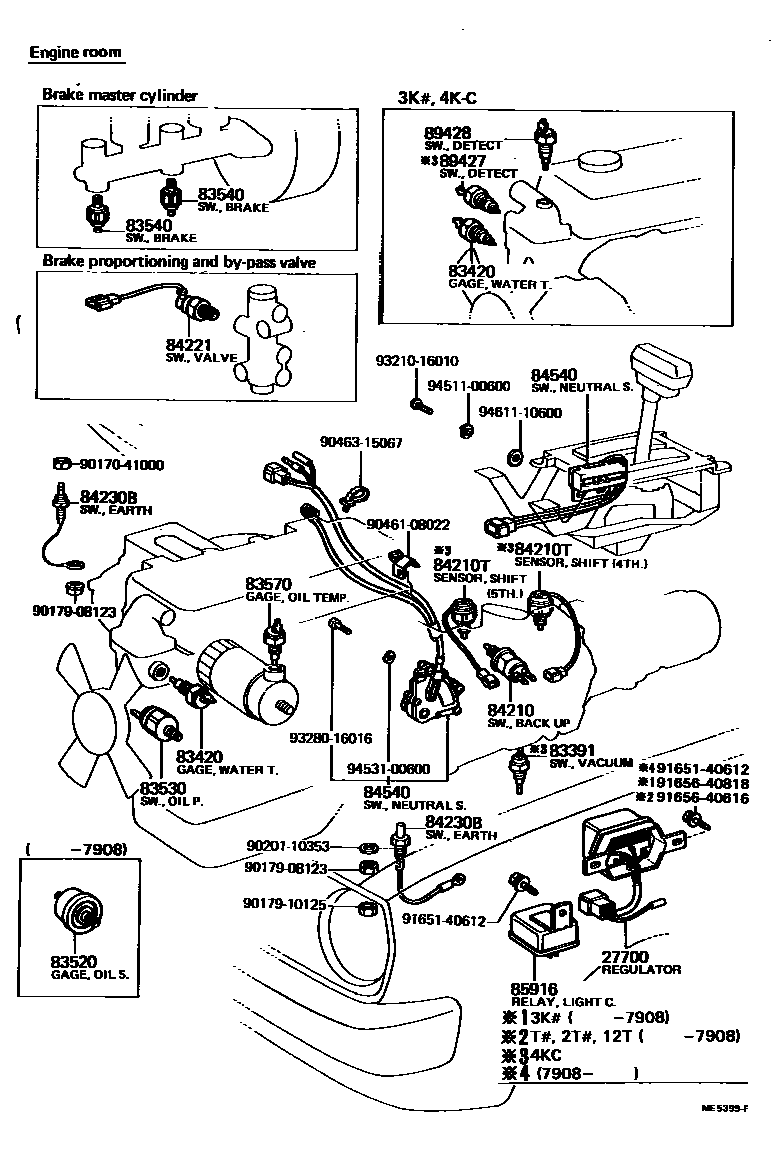

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

27700REGULATOR ASSY, GENERATOR

main27700-15010i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197805-198107

sub27700-15011

main27700-36010i3K#,2T#..KE3#,50,TE3#,47,51197408-197706

sub27700-36020

main27700-36020i3K#,2T#..KE3#,50,TE3#,47,51197706-197805

sub27700-15040

83391SWITCH, VACUUM

main83391-12040iKE38,55..MTM197808-198107

TCS

sub83391-12060

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iKE3#,5#,TE3#,47,51197408-197908

main83420-16010iKE3#,55,TE3#197908-198107

sub83420-20020

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14020iTE47,51..GSL,GT197607-197908

sub83520-14021

main83520-30010iTE47,51..GSL,GT197408-197607

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKE3#,5#,TE3#,47,51..DLX,LT,SR,ST,STD197408-198107

sub83530-14030

83540SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER)

main84390-30011iKE30,35,36,50,TE47,51..LHD197408-198002

83570GAGE ASSY, OIL TEMPERATURE SENDER

main83420-12010iTE51..GSL197701-197805

main83570-14010iTE47,51..GSL,GT197408-197805

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iTE3#,47,51..MTM197408-198107

main84210-10060iKE30,35,5#..K50197606-198107

main84210-62020iKE3#,5#..K40197408-198107

84210TSENSOR ASSY, SHIFT POINT

main84220-12020iKE55..K50197808-198107

84221SWITCH ASSY, DIFFERENTIAL VALVE

main84220-12030iKE3#,5#..ARL197703-198107

main84220-20031iKE3#..ARL197610-197703

84230BSWITCH ASSY, EARTH

main84230-12020iTE47,51197408-197701

EUROPE SPEC

sub84241-12010

main84230-12020iTE47,51..EUG197701-197708

sub84241-12010

main84241-12010iTE47,51..(DLX,LT,ST)..EUG197708-197908

84540SWITCH ASSY, NEUTRAL START

main84540-12050iKE30,35..RHD..A20197408-197701

main84540-12051iKE30,35..RHD..A20197701-197908

main84540-12060iKE30,35..LHD..A20197408-197701

main84540-12061iKE30,35..LHD..A20197701-197908

main84540-12080iKE55..3FC197808-198107

main84540-12090iTE31,51..A40197805-198107

sub84540-12130

sub90461-12223

sub93385-16025

main84540-20133iTE51..A40197603-197701

sub84540-20132

main84540-22140iTE31,51..A40197701-197805

85916RELAY, LIGHT CONTROL

main85919-20011iKE3#,50,TE3#,47,51197408-197609

sub85919-20012

main85919-20012iKE3#,50,TE3#,47,51197609-197701

sub85919-12011

main90987-01001iKE3#,5#,TE3#,47,51197701-198009

sub90999-99088

main90987-01003iKE3#,55198009-198107

89427SWITCH, TEMPERATURE DETECT

main89427-12030iKE38,55..MTM197808-198107

MARK=60-105

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10040iKE30,35,36,50..(DLX,STD)..EUR197811-197908

COOLING FAN,MARK=98

main89428-12080iKE30,35,36,50..(DLX,STD)..EUG197805-197811

COOLING FAN,MARK=95

main89428-13010iKE30,35,36,50..(DLX,STD)..EUR197805-197811

COOLING FAN,MARK=98

main89428-30030iKE30,35,36,50..(DLX,STD)..EUG197811-197908

COOLING FAN,MARK=95

9017041000

main90170-41000

9017908123

main90179-08123

9017910125

main90179-10125

9020110353

main90201-10353

9046108022

main90461-08022

9046315067

main90463-15067

9165140612

main91651-40612

9165640616

main91656-40616

9165640818

main91656-40818

9321016010

main93210-16010

9328016016

main93280-16016

9451100600

main94511-00600

9453100600

main94531-00600

9461110600

main94611-10600

29 parts on this diagram · 6 diagrams in section
