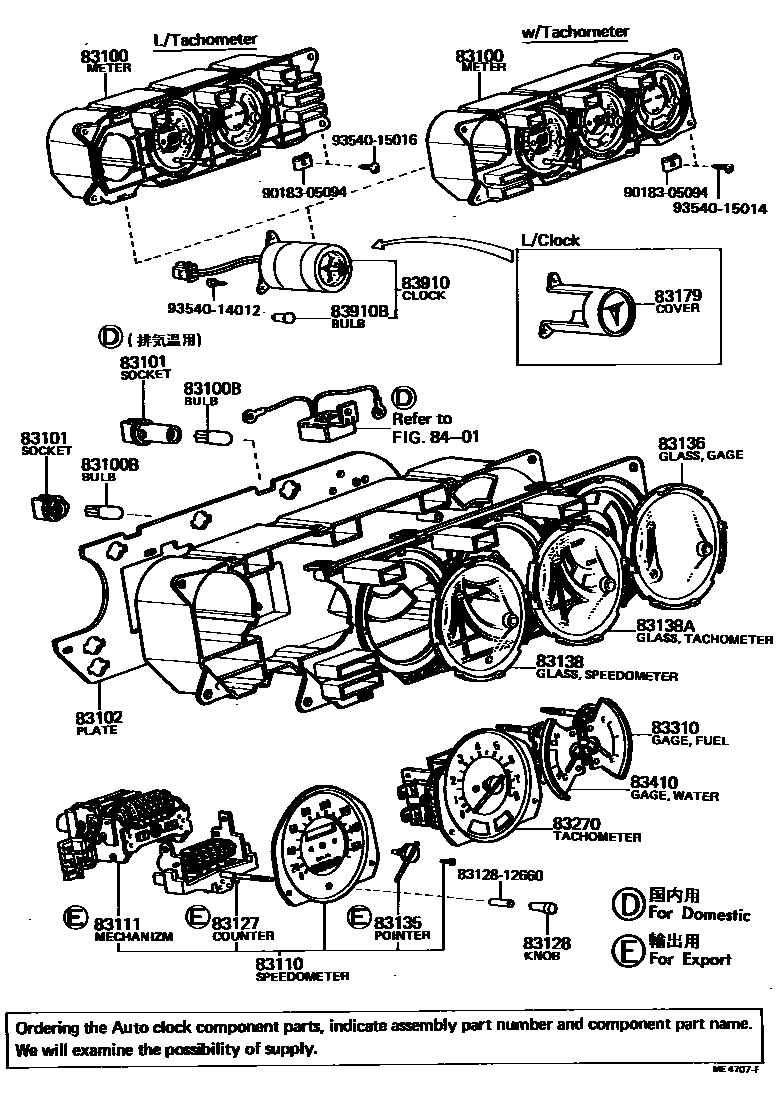

METER

0001 1 0002 1 0003 1 0004 1

83100METER ASSY, COMBINATION

main83010-12030iKE50,TE51..RHD197701-197908

KM

main83010-12040iKE50,TE51..LHD..DLX197701-197908

KM

main83010-12050iKE50,TE51..LHD..DLX197701-197908

MILE

main83010-12060iTE51..LHD..GSL197701-197908

MILE,W/TACHOMETER

main83010-12070iKE50,TE47,51..RHD197701-197908

KM,W/LARGE CLOCK

main83010-12080iKE50,TE47,51..LHD..(DLX,LT)197701-197908

KM,W/LARGE CLOCK

main83010-12090iKE50,TE47,51..RHD..(EUR,GEN)197701-197908

KM,W/TACHOMETER

main83010-12100iTE47,51..LHD..(DLX,LT,ST)197701-197908

KM,W/TACHOMETER

main83010-12110iTE47..RHD..GT197701-197807

MILE,W/TACHOMETER

main83010-12111iTE47..RHD..GT197807-197902

MILE,W/TACHOMETER

main83010-12120iTE47..LHD..GT197701-197902

MILE,W/TACHOMETER

main83010-12130iTE51..RHD..GSL197701-197908

KM,W/TACHOMETER

main83010-12140iTE51..LHD..GSL197701-197908

KM,W/TACHOMETER

main83010-12150iKE50,TE51..RHD197701-197908

KM,W/ED MONITOR

main83010-12160iKE50,TE51..RHD197701-197807

MILE

main83010-12161iKE50,TE51..RHD197807-197908

MILE

main83010-12170iKE50,TE47,51..RHD197701-197807

MILE,W/LARGE CLOCK

main83010-12171iKE50,TE47,51..RHD197807-197908

MILE,W/LARGE CLOCK

main83010-12180iKE50,TE47,51..RHD197701-197807

MILE,W/TACHOMETER

main83010-12181iKE50,TE47,51..RHD197807-197908

MILE,W/TACHOMETER

main83010-12190iKE50,TE51..RHD197701-197807

MILE,W/ED MONITOR

main83010-12191iKE50,TE51..RHD197807-197908

MILE,W/ED MONITOR

main83010-12200iKE50,TE51..LHD..DLX197701-197908

KM,W/ED MONITOR

main83010-12240iKE50,TE51..LHD..DLX197701-197908

MILE,W/ED MONITOR

main83010-12250iKE50,TE47,51..LHD..(DLX,LT)197701-197908

MILE,W/LARGE CLOCK

main83010-12260iKE50,TE47,51..LHD..(DLX,LT,ST)197701-197908

MILE,W/TACHOMETER

main83010-12310iTE47..RHD..GT197701-197902

KM,W/TACHO METER

main83010-12320iTE47..LHD..GT197701-197902

KM,W/TACHOMETER

main83010-12330iTE51..RHD..GSL197701-197807

MILE,W/TACHOMETER

main83010-12331iTE51..RHD..GSL197807-197908

MILE,W/TACHOMETER

main83100-12880iKE30,36..RHD..STD197408-197511

KM

main83100-12881iKE30,36..RHD..STD197511-197701

KM

main83100-12882iKE36..RHD..STD;KE30,38,55..RHD..STD..(ARL,GEN)197701-198107

KM

main83100-12890iKE30,36..RHD..STD197408-197511

MILE

main83100-12891iKE30,36..RHD..STD197511-197701

MILE

main83100-12892iKE30,36..RHD..STD..(EUR,GEN)197701-197807

MILE

main83100-12893iKE30,36..RHD..STD..(EUR,GEN)197807-198107

MILE

main83200-12010iKE30,36..LHD..STD197408-197701

KM

main83200-12011iKE30..LHD..STD;KE36..LHD..2D..STD;KE36..4D..STD..EUG;KE36..LHD..4D..STD..GEN197701-198002

KM

main83200-12020iKE30,36..LHD..STD197408-197608

MILE

main83200-12021iKE30,36..LHD..STD..GEN197701-198002

MILE

sub83200-12253

main83200-12022iKE30,36..LHD..STD197608-197701

MILE

main83200-12030iKE3#..RHD..DLX197408-197511

KM

main83200-12031iKE3#..RHD..DLX197511-197701

KM

main83200-12032iTE31;KE30..STD..SA;KE30,35,36,55..RHD..DLX197701-198107

KM

main83200-12040iKE3#..RHD..DLX197408-197511

MILE

main83200-12041iKE3#..RHD..DLX197511-197701

MILE

main83200-12042iKE3#..RHD..DLX..(EUR,GEN)197701-197807

MILE

main83200-12043iKE30,35,36..RHD..DLX..(EUR,GEN)197807-198107

MILE

main83200-12050iKE3#..LHD..DLX197408-197701

KM

main83200-12051iKE36..4D..SDN;KE30,35,36..LHD..DLX197701-197908

KM

main83200-12060iKE3#..LHD..DLX197408-197608

MILE

main83200-12061iKE30,35,36..LHD..DLX..GEN197701-197908

MILE

sub83200-12253

main83200-12062iKE3#..LHD..DLX197608-197701

MILE

main83200-12070iKE35..RHD..SR197408-197701

KM

main83200-12071iKE35..RHD..SR197701-197908

KM,W/TACHOMETER

main83200-12080iKE35..RHD..SR197408-197701

MILE

main83200-12081iKE35..RHD..SR197701-197807

MILE,W/TACHOMETER

main83200-12082iKE35..RHD..SR197807-197908

MILE,W/TACHOMETER

main83200-12090iKE35..LHD..SR197408-197701

KM

main83200-12091iKE35..LHD..SR197701-197908

KM,W/TACHOMETER

main83200-12100iKE35..LHD..SR197408-197701

MILE

main83200-12101iKE35..LHD..SR197701-197908

MILE,W/TACHOMETER

main83200-12110iTE47..RHD..LT197408-197511

KM

main83200-12111iKE50,TE47,51..RHD..(DLX,LT)197511-197701

KM

main83200-12120iTE47..RHD..LT197408-197511

MILE

main83200-12121iKE50,TE47,51..RHD..(DLX,LT)197511-197701

MILE

main83200-12130iKE50,TE47,51..LHD..(DLX,LT)197408-197701

KM

main83200-12140iKE50,TE47,51..LHD..(DLX,LT)197408-197701

MILE

main83200-12150iTE47..RHD..(LT,ST)197408-197511

KM,W/TACHOMETER

main83200-12151iKE50,TE47,51..RHD..(DLX,LT,ST)197511-197701

KM,W/TACHOMETER

main83200-12160iTE47..RHD..(LT,ST)197408-197511

MILE,W/TACHOMETER

main83200-12161iKE50,TE47,51..RHD..(DLX,LT,ST)197511-197701

MILE,W/TACHOMETER

main83200-12170iKE50,TE47,51..LHD..(DLX,ST)197408-197701

KM

main83200-12180iKE50,TE47,51..LHD..(DLX,ST)197408-197701

MILE

main83200-12190iTE47..RHD..GT197408-197511

KM

main83200-12191iTE47,51..RHD..(GSL,GT)197511-197701

KM

main83200-12200iTE47..RHD..GT197408-197511

MILE

main83200-12201iTE47,51..RHD..(GSL,GT)197511-197701

MILE

main83200-12210iTE47,51..LHD..(GSL,GT)197408-197701

KM

main83200-12220iTE47,51..LHD..(GSL,GT)197408-197701

MILE

main83200-12340iTE31197503-197511

KM

main83200-12341iTE31197511-197701

KM

main83200-12350iTE37197503-197701

KM

main83200-12351iTE3#..T50197701-198004

KM,W/TACHOMETER

main83200-12550iKE50,TE51..RHD..(A40,K40)197603-197701

KM,W/ED MONITOR

main83200-12560iKE50,TE51..RHD..DLX197603-197701

MILE,W/ED MONITOR

main83200-12570iTE51..RHD..T40197603-197701

KM,W/ED MONITOR

main83200-12580iKE50,TE51..LHD..(A40,K40)197603-197701

KM,W/ED MONITOR

main83200-12590iKE50,TE51..LHD..DLX197603-197701

MILE,W/ED MONITOR

main83200-12600iTE51..LHD..T40197603-197701

KM,W/ED MONITOR

83100BBULB, COMBINATION METER, NO.1

main90981-11018×3iKE5#,TE47,51..CP,LB197701-197908

12V 1.2W W/O SOCKET

main99132-12034×12iKE3#,5#,TE3#,47,51197408-198107

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-10010×12iKE3#,50,TE3#,47,51197408-197801

main83101-14030×12iKE3#,5#,TE3#,47,51197801-198107

main83101-14040×3iKE5#,TE47,51..CP,LB197701-197908

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-12010iKE3#,TE31..RHD..(DLX,STD)197408-197511

sub83247-12011

main83247-12020iKE35..RHD..SR197408-197411

main83247-12021iTE37197411-197511

main83247-12022iTE37197511-197701

main83247-12060iTE47..RHD..(LT,ST)197408-197511

main83247-12061iKE50,TE47,51..RHD..(DLX,LT,ST)197511-197701

main83247-12070iTE47..RHD..GT197408-197511

main83247-12071iTE47,51..RHD..(GSL,GT)197511-197701

main83247-12080iKE3#..LHD..(DLX,STD)197408-197701

main83247-12110iKE35..LHD..SR197408-197701

main83247-12120iKE50,TE47,51..LHD197408-197701

main83247-12181iKE3#,TE31..RHD..(DLX,STD)197511-197701

main83247-12220iKE50,TE51..RHD..DLX197603-197701

W/ED MONITOR

sub83247-12221

main83247-12230iKE50,TE51..LHD..DLX197603-197701

W/ED MONITOR

main83247-12290iKE50,TE51..RHD197701-197908

main83247-12300iKE50,TE47,51..RHD197701-197908

W/TACHOMETER

main83247-12310iKE50,TE47,51..RHD197701-197908

W/LARGE CLOCK

main83247-12320iKE50,TE51..LHD..DLX197701-197908

main83247-12330iKE50,TE47,51..LHD..(DLX,LT)197701-197908

W/LARGE CLOCK

main83247-12340iKE50,TE47,51..LHD197701-197908

W/TACHOMETER

main83247-12370iKE30,35,36,TE31..RHD..(DLX,STD)197701-198107

main83247-12390iKE30,35,36..LHD..(DLX,STD)197701-198002

sub83247-12400

main83247-12420iTE31..2TB;KE35,TE37..RHD..SR197701-198004

main83247-12430iKE35..LHD..SR197701-197908

83110SPEEDOMETER ASSY

main83241-12070iTE51..A40197603-197701

KM,W/ED MONITOR

main83241-12071iKE3#..DLX197701-197708

KM

main83241-12072iTE31197708-198107

MILE & KM

main83241-12080iKE30,36..STD197408-197701

MILE

main83241-12100iKE35,50,TE37,47,51..DLX,LT,SR,ST197408-197701

KM

main83241-12101iTE31..2TB;KE35,TE37..SR197708-198004

MILE & KM

main83241-12110iKE3#..RHD..DLX197701-197708

MILE

main83241-12120iTE47,51..GSL,GT197408-197701

KM

main83241-12130iKE30,36..STD197408-197701

KM

main83241-12131iKE30,36..STD197701-197708

KM

main83241-12132iKE36..STD;KE30..STD..(ARL,EUR,GEN)197708-198107

KM&MILE

main83241-12180iKE30,36..LHD..STD197701-197708

MILE

main83241-12181iKE30,36..STD..GEN197708-197807

MILE & KM

main83241-12182iKE30,36..STD..GEN197807-198107

MILE & KM

main83241-12190iKE3#..LHD..DLX197701-197708

MILE

main83241-12191iKE3#..DLX,SR197708-197807

MILE & KM

main83241-12192iKE30,35,36..DLX,SR197807-198107

MILE & KM

main83241-12230iKE50,TE47,51..DLX,GSL,LT,ST197701-197708

KM

main83241-12231iKE50,TE47,51..DLX,GSL,LT,ST197708-197908

KM

main83241-12240iTE47..GT197701-197902

KM

main83241-12250iTE47..LHD..GT197701-197708

MILE

main83241-12270iKE50,TE47,51..LHD..(DLX,GT,LT,ST)197701-197708

MILE

main83241-12271iKE50,TE47,51..EUR,GEN197708-197807

MILE & KM

main83241-12272iKE50,TE47,51197807-197908

MILE & KM

sub83241-12262

83111MECHANISM, SPEEDOMETER

main83111-12530iKE30,36..STD197408-197701

KM

main83111-12540iKE3#,50,TE37,47,51..DLX,GSL,GT,LT,SR,ST197408-197701

KM

main83111-12550iKE36..STD;KE30..STD..(ARL,GEN)197408-197701

MILE

main83111-12560iKE3#,50,TE47,51..DLX,GSL,GT,LT,SR,ST197408-197701

MILE

83127COUNTER, TRIP

main83127-12280iKE3#,50,TE37,47,51..DLX,GSL,GT,LT,SR,ST197408-197701

KM

main83127-12860iKE3#,50,TE47,51..DLX,GSL,GT,LT,SR,ST197408-197701

MILE

83128KNOB, TRIP COUNTER

main83128-12650iKE30..STD..SA;KE30,35,36,50,TE37,47,51..DLX,GSL,GT,LT,SR,ST197408-198107

83135POINTER, SPEEDOMETER

main83135-12220iKE3#,50,TE3#,47,51197408-197701

83136GLASS, GAGE METER

main83138-12340×2iKE50,TE47,51197701-197908

main83138-12640iKE30,35,36,TE3#197408-198107

main83138-12750iKE50,TE47,51197408-197701

83138GLASS, SPEEDOMETER

main83138-12640iKE36..STD;KE30..STD..(ARL,EUR,GEN)197408-198107

main83138-12650iKE30..STD..SA;KE30,35,36,50,TE37,47,51..DLX,GSL,GT,LT,SR,ST197408-198107

83138AGLASS, TACHOMETER

main83138-12640iKE35,50,TE37,47,51197408-198004

83179COVER, COMBINATION METER, HOLE

main83179-12010iKE3#197408-197701

W/O CLOCK

83270TACHOMETER ASSY, ENGINE

main83242-12010iKE35..SR197408-197512

main83242-12011iKE35..SR197512-197908

main83242-12020iTE37197503-197512

main83242-12021iTE37197512-197604

main83242-12040iTE47..LT,ST197408-197512

sub83242-19015

main83242-12041iKE50,TE47,51..DLX,LT,ST197512-197701

sub83242-19016

main83242-12060iTE47..GT197408-197512

main83242-12061iTE47,51..GSL,GT197512-197701

main83242-12150iTE3#..T50197604-198004

main83242-12180iTE47..LHD..GT197701-197805

main83242-12181iTE47..LHD..GT197805-197902

main83242-12190iKE50,TE47,51..DLX,GSL,LT,ST197701-197805

main83242-12191iKE50,TE47,51..DLX,GSL,LT,ST197805-197908

main83242-12200iTE47..RHD..GT197701-197805

main83242-12201iTE47..RHD..GT197805-197902

83310GAGE ASSY, FUEL RECEIVER

main83243-12010iKE3#,TE3#197408-197701

main83243-12020iKE50,TE47,51..RHD197408-197701

main83243-12030iKE50,TE47,51..LHD197408-197701

main83243-12080iKE50,TE47,51..RHD197701-197908

main83243-12090iKE50,TE47,51..LHD197701-197908

main83243-12100iKE30,35,36,TE3#197701-198107

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-12010iKE3#,TE3#197408-197511

main83244-12011iKE3#,TE3#197511-197701

main83244-12020iTE47..RHD197408-197511

main83244-12021iKE50,TE47,51..RHD197511-197701

main83244-12030iTE47..LHD197408-197511

main83244-12031iKE50,TE47,51..LHD197511-197701

main83244-12120iKE50,TE47,51..RHD197701-197908

main83244-12130iKE50,TE47,51..LHD197701-197908

main83244-12180iKE30,35,36,TE3#197701-197908

main83244-12290iKE3#,55,TE3#197908-198107

83910CLOCK ASSY

main83910-12030iKE35,36,TE37;KE30,TE31..DLX;KE30..STD..(ARL,GEN)197408-197701

CITIZEN

main83910-12060iKE50,TE47,51..LHD197408-197701

main83910-12090iKE35,36,TE37;KE30,TE31..DLX;KE30..STD..(ARL,GEN)197408-197701

JECO

main83910-12110iKE30..ARL,EUR,GEN;KE30,TE31..DLX..SA;KE35,36,38,55,TE37197701-198101

SMALL TYPE,CITIZEN

main83910-12120iKE30..ARL,EUR,GEN;KE30,TE31..DLX..SA;KE35,36,38,55,TE37197701-198101

SMALL TYPE,JECO

main83910-12121iKE3#,55198101-198107

SMALL TYPE,JECO

main83910-12170iKE50,TE47,51197701-197908

SMALL TYPE,JECO

main83910-12180iKE50,TE47,51..DLX,LT197701-197908

LARGE TYPE,JECO

main83910-12190iKE50,TE47,51197701-197908

SMALL TYPE,CITIZEN

main83910-12200iKE50,TE47,51..DLX,LT197701-197908

LARGE TYPE,CITIZEN

main83910-19055iKE50,TE47,51..RHD197408-197701

CITIZEN

main83910-19065iKE50,TE47,51..RHD197408-197701

JECO

83910BBULB, CLOCK INDICATOR

main99132-11034iKE30,TE31..DLX;KE30..STD..(ARL,GEN);KE35,36,50,TE37,47,51197408-197701

12V 3.4W

8401

8312812660KNOB, TRIP COUNTER

main83128-12660

9018305094

main90183-05094

9354014012

main93540-14012

9354015014

main93540-15014

9354015016

main93540-15016

24 parts on this diagram · 4 diagrams in section
