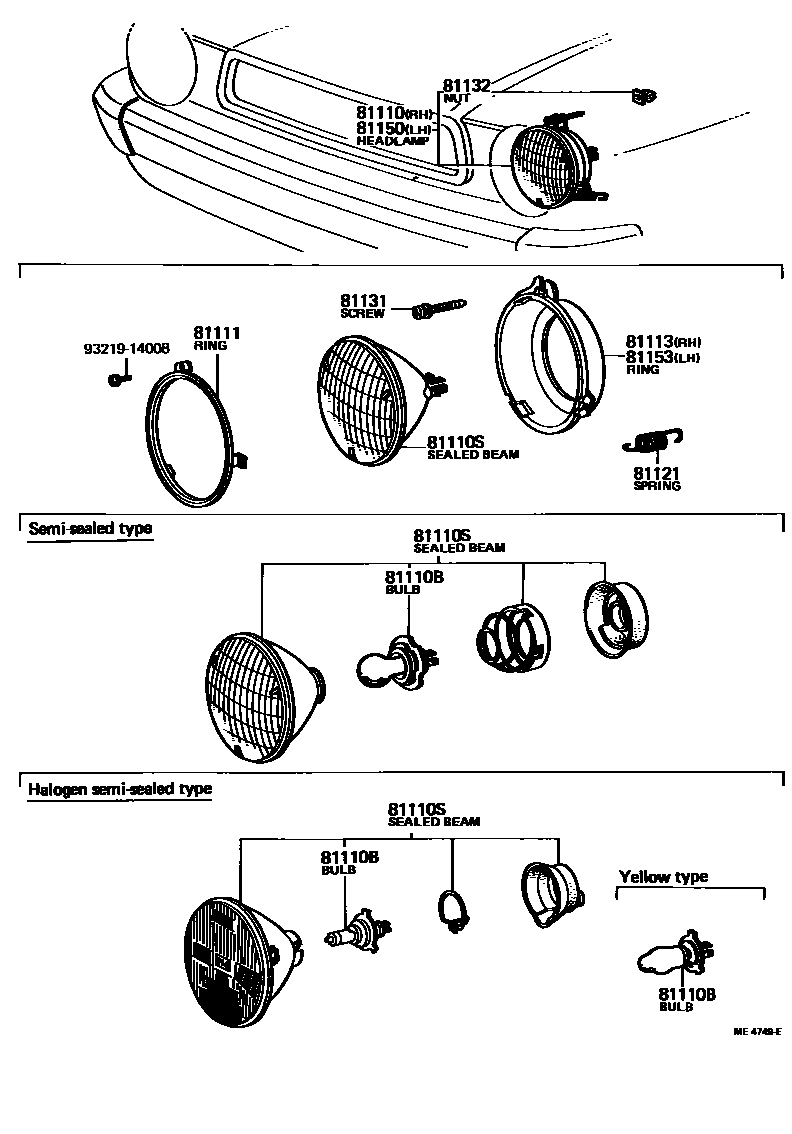

HEADLAMP

0001 1 0002 1 0003 1 0004 1

81110HEADLAMP ASSY, RH

main81110-12310iKE3#..LHD197408-197508

W/HEADLAMP CLEANER

main81110-19395iKE3#,TE3#..ARL,SA197408-198107

KOITO

main81110-19405iKE3#..RHD197408-197410

TOSHIBA

main81110-19405iKE3#,TE3#..RHD197410-197805

IKI

main81110-19406iKE3#,TE3#..ARL,SA197805-198107

IKI

main81110-19415iTE47..RHD197408-197902

KOITO

main81110-19425iKE3#..LHD197408-197805

KOITO

main81110-19435iKE3#..LHD197410-197805

IKI

main81110-19435iKE3#..LHD197408-197410

TOSHIBA

main81110-19445iKE3#..LHD197408-197805

SEMI-SEALED,WHITE

main81110-19446iKE30,35,36..LHD197805-197908

SEMI-SEALED,WHITE

main81110-19455iKE3#..LHD197408-197805

SEMI-SEALED,YELLOW

main81110-19456iKE30,35,36..LHD197805-197908

SEMI-SEALED,YELLOW

main81110-19465iTE47..LHD197408-197902

SEMI-SEALED,WHITE

main81110-19475iTE47..LHD197408-197902

SEMI-SEALED,YELLOW

main81110-19485iTE47..LHD197408-197902

KOITO

main81110-19495iKE5#,TE51..LB..RHD197603-197908

KOITO

main81110-19505iKE50,TE51..LHD197603-197908

KOITO

main81110-19515iKE50,TE51..LHD197603-197908

SEMI-SEALED,WHITE

main81110-19525iKE50,TE51..LHD197603-197908

SEMI-SEALED,YELLOW

main81110-19685iKE3#..RHD..EUG197707-197805

SEMI-SEALED,WHITE

main81110-19686iKE30,35,36..RHD..EUG197805-197908

SEMI-SEALED,WHITE

main81110-19695iKE50,TE51..RHD..EUG197707-197908

SEMI-SEALED,WHITE

main81110-19945iKE30,35,36..RHD..GEN197805-198107

KOITO

main81110-19955iTE31197805-198107

IKI

main81110-19965iKE30,35,36..LHD..GEN197805-198002

KOITO

main81110-19975iKE30,35,36..LHD..GEN197805-198002

IKI

main81110-19985iKE30,35,36..SDN197805-197908

SEMI-SEALED,WHITE

main81110-19995iKE50..SDN197805-197908

SEMI-SEALED,WHITE

main81110-80001iKE30,35,36..SDN197808-197908

HALOGEN,WHITE

main81110-80002iKE50..SDN197808-197908

main81110-80023iKE38,55198004-198107

*RET,KOITO

sub81110-12570

main81110-80037iKE38,55198004-198107

*RET,HALOGEN,KOITO

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013iKE3#,50,TE47,51..EUR197408-198002

12V 45/40W,WHITE,12V 45/40W,WHITE

main90981-13014iTE47..(LT,ST)..EUG197408-198002

12V 45/40W,YELLOW,12V 45/40W,YELLOW

sub90981-13H00

main90981-13015iKE38,55198004-198107

12V 60/55W,*HAL *WH,12V 60/55W,*RET,HALOGEN

sub90981-13058

main90981-13015iKE30,35,36,50..SDN197808-197908

12V 60/55W,*HAL *WH,12V 60/55W

sub90981-13058

main90981-13023iKE30,35,36,50,TE47,51..EUG197805-197908

HALOGEN,WHITE,LUCAS 472

main90981-13024iKE30,35,36,50,TE47,51..LHD..EUG197805-197908

HALOGEN,YELLOW,LUCAS 476

81110SSEALED BEAM UNIT, NO.1

main90981-01012iKE3#,TE3#..RHD197408-197703

12V 50/40W,TOSHIBA

sub90981-01024

main90981-01013iKE3#..LHD197408-197703

12V 50/40W,TOSHIBA

sub90981-01025

main90981-01015iKE3#,5#,TE3#,47,51..RHD197408-198107

12V 50/40W,12V 50/40W,KOITO

main90981-01016iTE47..(LT,ST)..EUG197408-198002

12V 50/40W,KOITO

sub90981-01046

main90981-01017iTE47..(LT,ST)..EUG197408-198002

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-01018iTE47..(LT,ST)..EUG197408-198002

12V 45/40W,*YSB,SEMI-SEALED,YELLOW

sub90981-01H00

main90981-01019iKE3#..LHD197408-197508

W/HEADLAMP CLEANER

main90981-01024iKE30,35,36,TE3#..RHD197703-198107

12V 50/40W, TOSHIBA

sub90981-01015

main90981-01025iKE3#..LHD197703-197805

12V 50/40W,TOSHIBA

sub90981-01031

main90981-01028iKE30,35,36,50,TE51..RHD..EUG197707-197908

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-01029iKE30,35,36,50..SDN197805-197908

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-01030iKE30,36197805-198107

12V 50/40W,*WB,12V 50/40W,IKI

sub90981-01015

main90981-01031iKE30,35,36..LHD197805-198002

12V 50/40W,*WB,12V 50/40W,TOSHIBA

sub90981-01016

main90981-01033iKE30,35,36,50,TE47,51..LHD..EUG197805-197908

HALOGEN,WHITE,LUCAS 54512777

main90981-01034iKE30,35,36,50,TE47,51..LHD..EUG197805-197908

HALOGEN,YELLOW,LUCAS 54512816

main90981-01035iKE30,35,36,50..SDN197808-197908

12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE

main90981-04001iKE38,55198004-198107

12V 65/55W,*WB,12V 65/55W,*RET,KOITO

sub90981-04H21

sub90981-04H22

main90981-04011iKE38,55198004-198107

12V 60/55W,*HWS,12V 60/55W,*RET,HALOGEN

main90981-13023iKE30,35,36,50,TE51..RHD..EUG197805-197908

HALOGEN,WHITE,LUCAS 54512704

81111RING, SEALED BEAM RETAINING

main81111-10120iKE50,TE47,51197408-198107

KOITO

sub81111-22150

main81111-12021iKE3#197408-197410

TOSHIBA

sub81111-12421

main81111-12021iKE35..SR;KE35..DLX..EUG;KE30,36,TE3#..RHD;KE35..DLX..(ARL,GEN);KE30..LHD..(A20,K50);KE30,36..LHD..K40..EUG;KE30,36..LHD..K40..GEN197410-198107

IKI

sub81111-12421

main81111-12420iKE30,35,36..LHD197805-198107

IKI

sub81111-12421

main81111-16020iKE38,55198004-198107

*RET,KOITO

main81111-22150iTE31197805-198107

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-10050iKE50,TE51197603-197908

KOITO

main81113-12200iKE3#197408-197410

TOSHIBA

main81113-12200iKE30,36,TE37..SA197410-198107

IKI

main81113-12210iKE30,35,36,TE3#..ARL,SA197408-198107

KOITO

main81113-12410iTE31197805-198107

KOITO

main81113-12420iKE35..SR;KE30,36..RHD;KE30..LHD..(A20,K50);KE35..(A20,K40)..DLX;KE30,36..LHD..K40..GEN;KE30,36..LHD..K40..EUG197805-198107

IKI

main81113-16020iKE38,55198004-198107

*RET,KOITO

sub81113-16220

main81114-12220iTE47197408-197902

sub81153-90K00

81121SPRING, HEADLAMP TENSION

main81121-12070iKE30,35,36,TE3#197408-198107

KOITO

main81121-12140iKE35..SR;KE35..DLX..EUG;KE30,36,TE3#..RHD;KE35..DLX..(ARL,GEN);KE30..LHD..(A20,K50);KE30,36..LHD..K40..EUG;KE30,36..LHD..K40..GEN197410-198107

IKI

main81121-12140iKE3#197408-197410

TOSHIBA

main81121-16020iKE38,55198004-198107

KOITO

main81121-62010iKE50,TE47,51197408-197908

KOITO

81131SCREW, HEADLAMP ADJUSTING

main81131-10031iKE38,55198004-198107

KOITO

main81131-10031iKE50,TE47,51197408-197908

main81131-12013iKE30,35,36..SDN197805-197908

HALOGEN,KOITO

sub81131-28050

main81131-12021iKE35..SR;KE35..DLX..EUG;KE30,36,TE3#..RHD;KE35..DLX..(ARL,GEN);KE30..LHD..(A20,K50);KE30,36..LHD..K40..EUG;KE30,36..LHD..K40..GEN197410-198107

IKI

main81131-12021iKE3#197408-197410

TOSHIBA

main81131-12150iKE30,35,36,TE3#197408-198107

KOITO

81132NUT, HEADLAMP SELF LOCKING

main90189-05013iKE3#,5#,TE3#,51197408-198107

81150HEADLAMP ASSY, LH

main81150-12250iKE3#..LHD197408-197508

W/HEADLAMP CLEANER

main81150-19345iKE3#,TE3#..RHD197410-197805

IKI

main81150-19345iKE3#..RHD197408-197410

TOSHIBA

main81150-19346iKE3#,TE3#..ARL,SA197805-198107

IKI

main81150-19355iKE30,36,TE3#..SA197408-198107

KOITO

main81150-19365iTE47..RHD197408-197902

KOITO

main81150-19375iKE3#..LHD197408-197805

KOITO

main81150-19385iKE3#..LHD197410-197805

IKI

main81150-19385iKE3#..LHD197408-197410

TOSHIBA

main81150-19395iKE3#..LHD197408-197805

SEMI-SEALED,WHITE

main81150-19396iKE30,35,36..LHD197805-197908

SEMI-SEALED,WHITE

main81150-19405iKE3#..LHD197408-197805

SEMI-SEALED,YELLOW

main81150-19406iKE30,35,36..LHD197805-197908

SEMI-SEALED,YELLOW

main81150-19415iTE47..LHD197408-197902

SEMI-SEALED,WHITE

main81150-19425iTE47..LHD197408-197902

SEMI-SEALED,YELLOW

main81150-19435iTE47..LHD197408-197902

KOITO

main81150-19445iKE5#,TE51..LB..RHD197603-197908

KOITO

main81150-19455iKE50,TE51..LHD197603-197908

KOITO

main81150-19465iKE50,TE51..LHD197603-197908

SEMI-SEALED,WHITE

main81150-19475iKE50,TE51..LHD197603-197908

SEMI-SEALED,YELLOW

main81150-19635iKE3#..RHD..EUG197707-197805

SEMI-SEALED,WHITE

main81150-19636iKE30,35,36..RHD..EUG197805-197908

SEMI-SEALED,WHITE

main81150-19645iKE50,TE51..RHD..EUG197707-197908

SEMI-SEALED,WHITE

main81150-19885iTE31197805-198107

KOITO

main81150-19895iTE31197805-198107

IKI

main81150-19905iKE30,35,36..LHD..GEN197805-198002

KOITO

main81150-19915iKE30,35,36..LHD..GEN197805-198002

IKI

main81150-19925iKE30,35,36..SDN197805-197908

SEMI-SEALED,WHITE

main81150-19935iKE50..SDN197805-197908

SEMI-SEALED,WHITE

main81150-80001iKE30,35,36..SDN197808-197908

HALOGEN,WHITE

main81150-80002iKE50..SDN197808-197908

main81150-80023iKE38,55198004-198107

*RET,KOITO

sub81150-12500

main81150-80037iKE38,55198004-198107

*RET,HALOGEN,*KOITO

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-10010iKE50,TE51197603-197908

KOITO

main81153-12140iKE30,35,36,TE3#..ARL,SA197410-198107

IKI

main81153-12140iKE3#197408-197410

TOSHIBA

main81153-12150iKE30,35,36,TE3#..ARL,SA197408-198107

KOITO

main81153-12340iTE31197805-198107

KOITO

main81153-12350iKE30,35,36..GEN197805-198107

IKI

main81153-16020iKE38,55198004-198107

*RET,KOITO

sub81153-16220

main81154-12160iTE47197408-197902

KOITO

sub81113-90K00

9321914008

main93219-14008

11 parts on this diagram · 4 diagrams in section
