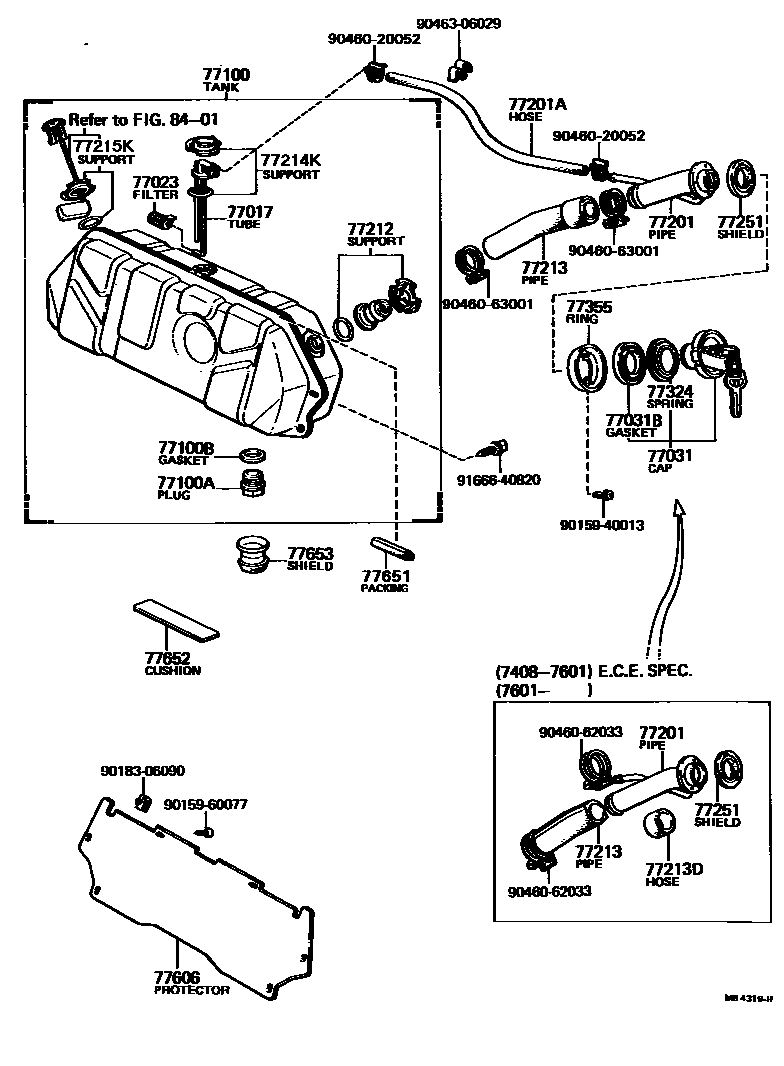

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1AUSTRALIA SPEC 0007 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-12051iKE30,35,TE37,47197707-198107

main77017-12062iTE31..MTM197707-198004

main77017-12070iTE51..A40197603-197707

sub77017-12071

main77017-12071iTE51..A40197707-197908

main77017-12080iKE50,TE51..MTM197603-197707

main77017-12081iKE5#,TE51..LB..MTM197707-197908

main77203-13031iKE36,38197708-198107

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iKE3#,5#,TE3#,47,51197707-198107

77031CAP ASSY, FUEL TANK

main69058-12010iKE30,35,TE3#,47197408-197505

sub69058-12011

main69058-12011iKE30,35,50,TE47,51..EUG197505-197908

sub69058-12030

main69058-12030iKE30,35,5#,TE3#,47,51..ARL,GEN,SA197508-198107

main69058-13010iKE36197408-197508

main69058-13010iKE36..LHD..EUR197701-197908

WEST GERMANY SPEC

main69058-13020iKE36,38197508-198107

77031BGASKET (FOR FUEL TANK CAP)

main77316-12031iKE3#,50,TE3#,47,51197408-198107

main77316-12050iKE30,35,5#,TE3#,47,51197608-198107

77100TANK ASSY, FUEL

main77100-12901iKE30,35..DLX,STD197408-198107

sub77101-12902

sub77017-12051

sub77023-12050

sub83320-19205

main77100-12902iTE47197408-197701

sub77101-12902

sub77017-12051

sub77023-12050

sub83320-19215

main77100-12908iTE31..A40197512-198004

sub77101-12902

sub77017-12062

sub77023-12050

sub83320-19205

main77101-12100iKE5#,TE51..LB197805-197908

sub77101-19045

main77101-12900iKE50,TE51197603-197805

sub77101-12100

main77101-13040iKE36197408-197708

sub77101-13041

main77101-13041iKE36,38197708-197905

sub77101-13042

main77101-13042iKE36,38197905-198107

77100APLUG(FOR FUEL TANK)

main90105-12018iKE3#,5#,TE3#,47,51197408-198107

main90341-24036iKE36,38197905-198107

77100BGASKET(FOR FUEL TANK)

main90430-12038iKE3#,TE3#,47197408-197507

main90430-12245iKE3#,5#,TE3#,47,51197507-198107

main90430-24047iKE36,38197905-198107

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12100iKE30,35,TE3#,47197408-197701

main77201-12120iTE47..GEN197701-197902

sub77201-12100

main77201-12130iKE30,35197408-197601

ECE SPEC

main77201-12131iKE30,35,55,TE3#..HT,SED197601-198107

main77201-12150iKE35197408-197501

ECE SPEC

sub77201-12130

main77201-12170iTE47197408-197701

ECE SPEC

main77201-12170iTE47..EUG197701-197902

main77201-12190iKE5#,TE51..LB197603-197908

main77201-13050iKE36197408-197505

sub77201-13051

main77201-13051iKE36,38197505-198107

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-18002iKE30,35,TE3#,47197408-197902

main90445-18016iKE36197504-197510

sub90445-18028

main90445-18019iKE36197411-197504

sub90445-18016

main90445-18023iKE30,35,TE3#197601-198107

main90445-18028iKE36,38197510-198107

main90445-18868iKE36197408-197908

77212SUPPORT KIT, FUEL TANK INLET

main04772-12020iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

77213HOSE, FUEL TANK SUB INLET

main77213-12050iKE30,35,TE3#197408-197601

main77213-12060iTE47..GEN197408-197902

main77213-12080iKE30,35,55,TE3#..HT,SED197601-198107

main77213-12080iKE30,35197408-197601

ECE SPEC

main77213-12090iTE47..EUG197701-197902

main77213-12090iTE47197408-197701

ECE SPEC

main77213-12120iKE5#,TE51..LB197603-197908

main77213-13030iKE36,38197408-198107

77213DPAD, FUEL TANK FILLER PIPE

main77219-12010iKE30197408-197601

ECE SPEC

main77219-12011iKE30,35,55,TE3#..HT,SED197601-198107

77214KSUPPORT KIT, FUEL TANK TUBE

main04772-12010iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

77215KSUPPORT KIT, FUEL TANK GAGE

main04772-12020iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-12010iKE3#,5#,TE3#,47,51197408-198107

77324SPRING, FUEL TANK CAP

main77317-12030iKE30,35,5#,TE3#,47,51197608-198107

main77324-12011iKE3#,50,TE3#,47,51197408-198107

77355RING, INLET BOX

main77371-12010iKE30,TE31197408-197608

sub77371-12011

main77371-12011iKE30,55,TE31..SED197608-198107

main77371-12030iKE35,TE37197408-197608

sub77371-12031

main77371-12031iKE35,55,TE37..HT197608-198107

main77371-12040iTE47197408-197608

sub77371-12041

main77371-12041iTE47197608-197902

main77371-12100iKE5#,TE51..LB197603-197908

main77371-13010iKE36..LHD..4D..STD..GEN197609-197908

WOODEN GRAIN PANEL

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-12070iKE30,35,55,TE3#..HT,SED197408-198107

main77606-12080iTE47197408-197902

77651PACKING, FUEL TANK BRACKET

main77276-12010iKE30,35,TE3#,47197408-197902

77652CUSHION, FUEL TANK, NO.1

main77651-12030iKE5#,TE51..LB197603-197908

sub77651-12031

main77651-13020iKE36,38197408-198107

main77652-12030iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

77653SHIELD, FUEL TANK DRAIN PLUG

main77292-12010iKE30,35,55,TE3#,47..CP,HT,SED197408-198107

8401

9015940013

main90159-40013

9015960077

main90159-60077

9018306090

main90183-06090

9046020052

main90460-20052

9046062033

main90460-62033

9046063001

main90460-63001

9046306029

main90463-06029

9166640820

main91666-40820

30 parts on this diagram · 7 diagrams in section
