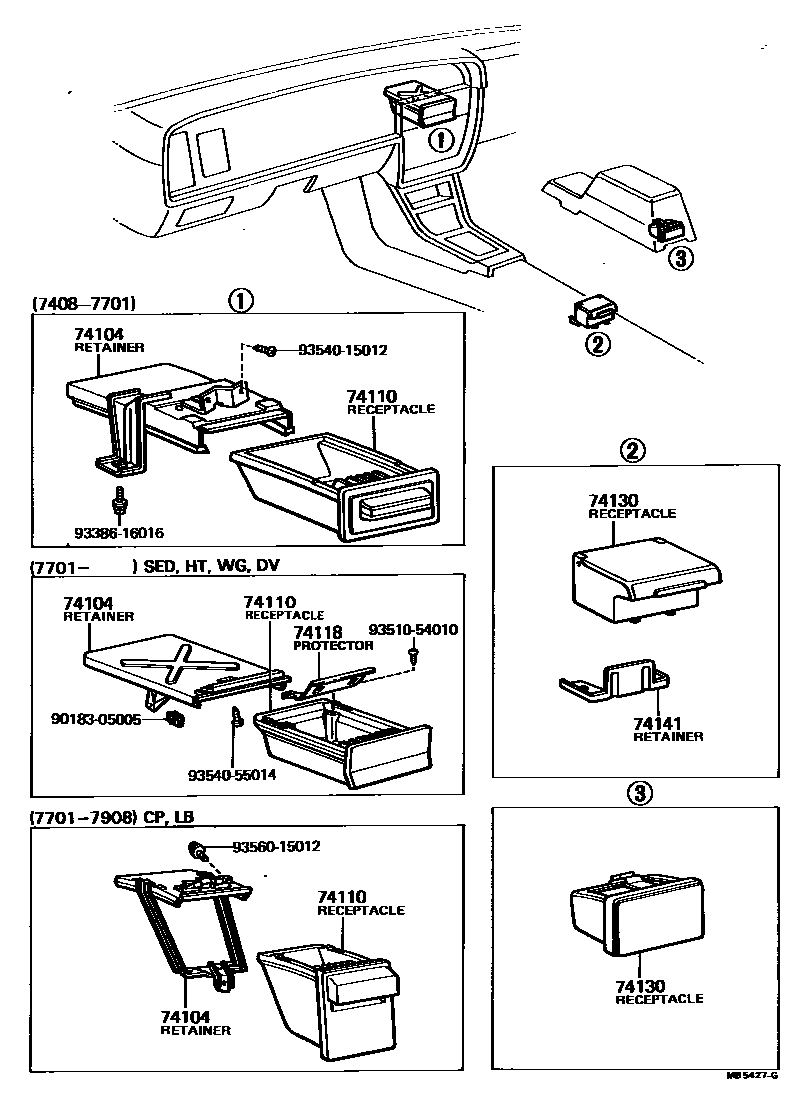

ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-12040iKE3#,TE3#..RHD197408-197701

main74104-12050iKE50,TE47,51..RHD197408-197701

main74104-12070iKE3#..LHD197408-197701

main74104-12080iKE50,TE47,51..LHD197408-197701

main74104-12090iKE3#,55,TE3#..DV,HT,SED,WG197701-198107

ASCO

main74104-12100iKE5#,TE47,51..(CP,LB)..RHD197701-197908

main74104-12110iKE50,TE47,51..LHD197701-197908

main74104-12120iKE3#,55,TE3#..DV,HT,SED,WG197701-198107

KOJIMA PRESS

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-12010iKE3#,50,TE31,51..DLX,STD197408-197701

main74102-12020iTE47197408-197701

sub74102-12010

main74102-12060iKE5#,TE51..LB..DLX197701-197908

main74102-12070iTE47,51..GSL,GT,LT,ST197701-197908

sub74102-12060

main74111-12060iTE31..A40,T40;KE3#,55..DV,HT,SED,WG197701-198107

ASCO,SILVER

main74111-12080iKE3#,TE3#..RHD197701-198107

KOJIMA PRESS,SILVER

main74111-12090iTE37197904-198004

ASCO,BROWN

main74111-12100iTE31..2TB197904-198004

KOJIMA PRESS,BROWN

main74111-12110iKE30,36..LHD..STD197701-197805

ASCO,BLACK

main74111-12120iKE30,36..LHD..STD197701-197805

KOJIMA PRESS,BLACK

sub74111-12080

74118PROTECTOR, FRONT ASH RECEPTACLE

main74119-12010iKE3#,55,TE3#..DV,HT,SED,WG197712-198107

74130RECEPTACLE ASSY, REAR ASH

main74130-12020iKE35,50,TE47,51..DLX,LT197408-197701

sub74130-12030

main74130-12030-01iKE3#,TE31..(HT,SED,WG)..(DLX,STD)197701-197805

BLACK,BLACK,TRIM2#

sub74130-20060

main74130-12030-05iKE50,TE51..DLX197701-197805

BEIGE,BEIGE,TRIM4#

sub74130-20060

main74130-12040-01iTE31..A40,T40197903-198107

W/O FULL CONSOLE,BLACK,BLACK,TRIM2#

sub74109-20080

sub74130-12040

main74130-12040-04iKE3#..DLX,STD197903-198107

W/O FULL CONSOLE,BLUE,BLUE,TRIM8#

sub74109-20080

sub74130-12040

main74130-12040-05iKE3#..DLX,STD197903-198107

W/O FULL CONSOLE,BEIGE,BEIGE,TRIM4#

sub74109-20080

sub74130-12040

main74130-14010-01iKE3#,5#,TE3#,47,51197805-198107

W/FULL CONSOLE,BLACK,BLACK,TRIM2#

sub74130-14010

sub74130-12040

main74130-14010-01iKE35,TE37,47,51..GSL,GT,SR,ST197408-197805

W/FULL CONSOLE,BLACK,BLACK,TRIM0#,2#

sub74130-14010

sub74130-12040

main74130-14010-04iKE5#,TE37,51197805-198107

W/FULL CONSOLE,BLUE,BLUE,TRIM8#

sub74130-14010

sub74130-12040

main74130-14010-05iKE5#,TE37,51197701-198107

W/FULL CONSOLE,BEIGE,BEIGE,TRIM4#

sub74130-14010

sub74130-12040

main74130-14010-06iKE35,TE37,47,51..GSL,GT,SR,ST197408-197701

W/FULL CONSOLE,BROWN,BROWN,TRIM0#,4#

sub74130-14010

sub74130-12040

74141RETAINER, REAR ASH RECEPTACLE, INNER

main58854-12010iKE35,50,TE47,51..DLX,LT197408-197908

9018305005

main90183-05005

9338616016

main93386-16016

9351054010

main93510-54010

9354015012

main93540-15012

9354055014

main93540-55014

9356015012

main93560-15012

11 parts on this diagram · 1 diagram in section
