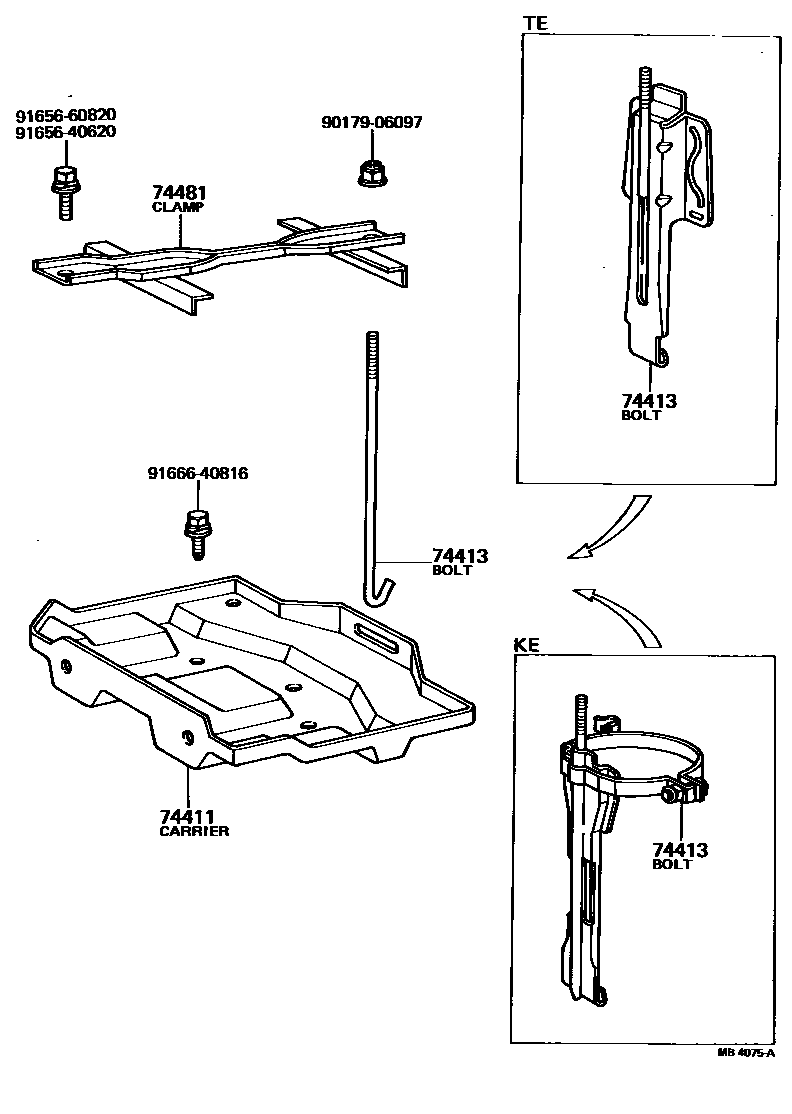

BATTERY CARRIER

74411CARRIER, BATTERY

main74411-12070iKE3#,TE47197408-197602

N40L

main74411-12080iKE3#,TE3#,47,51..EUR,GEN,SA197408-198107

NS40ZL,NS40ZAL

sub74411-12070

main74411-12090iKE30,35,36..LHD..EUR197805-197908

WEST GERMANY SPEC

main74411-12090iKE3#,50,TE47,51..EUR,GEN,SA197408-198107

N50ZL

main74411-12100iKE35..SR;KE35..DLX..EUG;KE50..LHD..K40;KE30,36,50..RHD;KE38,55,TE47,51;KE30..LHD..(A20,K50);KE35..DLX..(ARL,GEN);KE30,36..LHD..K40..GEN;KE30,36..LHD..K40..EUG197602-198107

N40ZL

sub74411-12070

74413BOLT, BATTERY CLAMP

main74407-12020iTE47,51197408-198107

main74407-12041iKE3#,5#..ARL197604-198107

main74407-12041iKE3#..RHD197511-197604

AUSTRALIA SPEC

main74451-30050iKE36..EUR,GEN,SA;KE30,35,50..EUR,GEN197408-198107

74481CLAMP, BATTERY HOLD DOWN

main74404-12050iKE3#,50,TE3#,47,51..EUR,GEN,SA197408-198107

NS40ZL,NS40ZAL

main74404-12060iKE30,35,36,50,TE3#..EUR,SA197408-198107

N50ZL

main74404-12070iKE3#,TE47197408-197602

N40L

sub74404-12090

main74404-12090iKE35..SR;KE35..DLX..EUG;KE50..LHD..K40;KE30,36,50..RHD;KE38,55,TE47,51;KE30..LHD..(A20,K50);KE35..DLX..(ARL,GEN);KE30,36..LHD..K40..GEN;KE30,36..LHD..K40..EUG197602-198107

N40L

main74404-12100iKE30,35,36..LHD..EUR197805-197908

WEST GERMANY SPEC

9017906097

main90179-06097

9165640620

main91656-40620

9165660820

main91656-60820

9166640816

main91666-40816

7 parts on this diagram · 1 diagram in section
