SEAT BELT & CHILD RESTRAINT SEAT

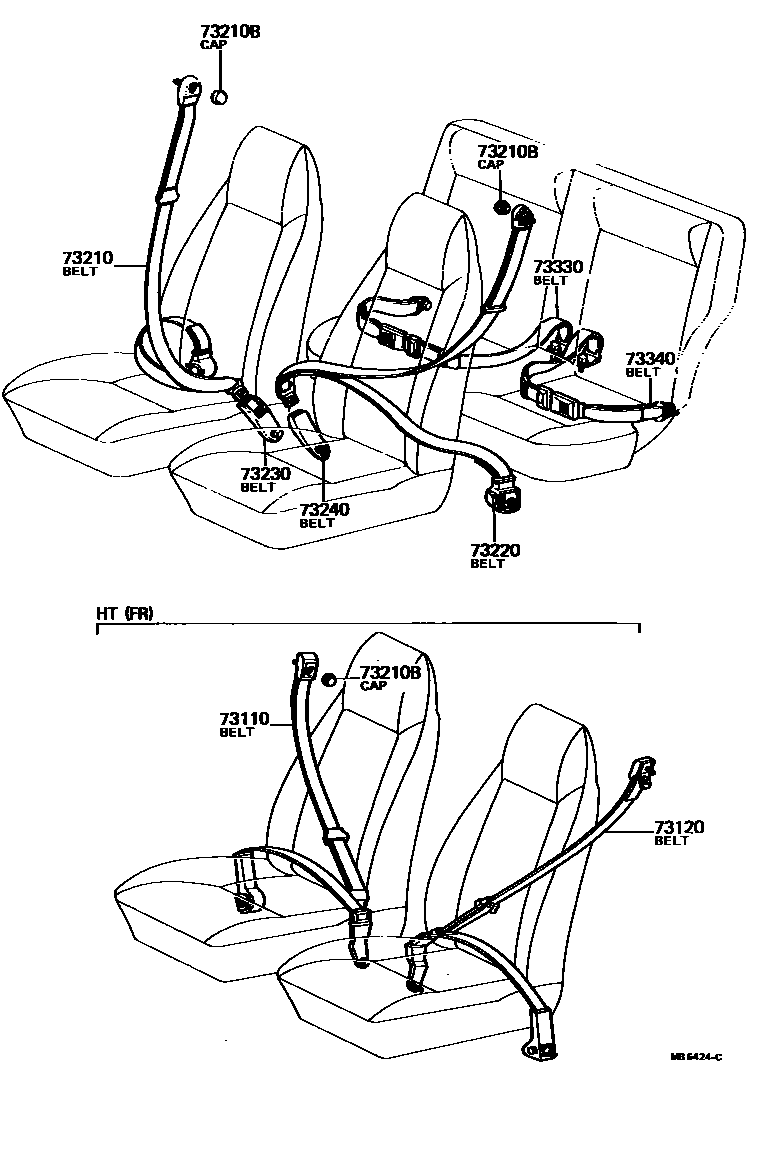

Parts diagram
73110BELT ASSY, FRONT SEAT 3 POINT TYPE, RH
main73110-12030-01i197408-197701
BLACK,BLACK,TRIM0#,2#
sub73110-12030
main73110-12030-06i197408-197508
BROWN,BROWN,TRIM0#,4#
sub73110-12030
main73110-12030-16i197508-197701
BROWN,BROWN,TRIM0#,4#
sub73110-12030
73120BELT ASSY, FRONT SEAT 3 POINT TYPE, LH
main73110-12030-01i197408-197701
BLACK,BLACK,TRIM0#,2#
sub73110-12030
main73110-12030-06i197408-197508
BROWN,BROWN,TRIM0#,4#
sub73110-12030
main73110-12030-16i197508-197701
BROWN,BROWN,TRIM0#,4#
sub73110-12030
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-12010-01i197408-197501
OUTER,BLACK,BLACK,TRIM0#,2#
main73210-12010-01i197501-197701
BLACK,BLACK,TRIM0#,2#
main73210-12010-06i197501-197701
BROWN,BROWN,TRIM0#,4#
main73210-12010-06i197408-197501
OUTER,BROWN,BROWN,TRIM0#,4#
main73210-12011-01i197701-198107
TOKAI RIKA,BLACK,BLACK,TRIM2#,8#
main73210-12011-06i197701-198107
TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#
main73210-12020i197604-197701
OUTER
main73210-12020i197501-197604
OUTER,AUSTRALIA SPEC
main73210-12021-01i197701-198107
BLACK,BLACK,TRIM2#,8#
sub73210-12021
main73210-12021-06i197701-198107
LIGHT BROWN,BROWN,TRIM4#
sub73210-12021
main73210-12030i197501-197604
OUTER,AUSTRALIA SPEC
main73210-12030i197604-197701
OUTER
main73210-12060i197501-197604
OUTER,AUSTRALIA SPEC
main73210-12060i197604-197701
OUTER
main73210-12110-01i197701-198107
TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#
sub73210-12110
main73210-12110-06i197701-198107
TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#
sub73210-12110
main73210-12120-01i197701-198004
BLACK,BLACK,TRIM2#,8#
main73210-12120-06i197701-198004
LIGHT BROWN,BROWN,TRIM4#
main73210-12130-01i197701-198107
TOKAI RIKA,BLACK,BLACK,TRIM2#,8#
sub73210-12130
main73210-12130-06i197701-198107
TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#
sub73210-12130
main73210-12170-01i197701-197908
W/*ELR,BLACK,BLACK,TRIM2#,8#
sub73210-12170
main73210-12170-06i197701-197908
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub73210-12170
main73210-12180-01i197701-198005
W/*ELR,BLACK,BLACK,TRIM2#,8#
sub73210-12180
main73210-12180-06i197701-198005
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub73210-12180
main73210-12190-01i197701-197908
W/*ELR,BLACK,BLACK,TRIM2#,8#
main73210-12190-06i197701-197908
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
main73210-12200-01i197701-198107
TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#
sub73210-12200
main73210-12200-06i197701-198107
TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#
sub73210-12200
main73210-13020i197501-197604
OUTER,AUSTRALIA SPEC
main73210-13020i197604-197701
OUTER
main73210-13040-01i197701-198107
W/*ELR,BLACK,BLACK,TRIM2#,8#
sub73210-13040
main73210-13040-06i197701-198107
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub73210-13040
main73210-13050i197903-197908
KANGOL MADE
73210BCAP (FOR FRONT SEAT OUTER BELT)
main71918-22010-01i197506-197701
AUSTRALIA SPEC,BLACK,BLACK,TRIM0#,2#
main71918-22010-01i197506-197701
BLACK,BLACK,TRIM0#,2#
main71918-22010-05i197508-197701
BEIGE,BEIGE,TRIM0#,4#
main71918-22010-06i197506-197701
AUSTRALIA SPEC,BROWN,BROWN,TRIM0#,4#
main71918-22010-06i197506-197701
BROWN,BROWN,TRIM0#,4#
main73178-12010-01i197506-197701
AUSTRALIA SPEC,BLACK,BLACK,TRIM0#,2#
sub73178-12010
main73178-12010-01i197506-197701
BLACK,BLACK,TRIM0#,2#
sub73178-12010
main73178-12010-05i197508-197701
AUSTRALIA SPEC,BEIGE,BEIGE,TRIM0#,4#
sub73178-12010
main73178-12010-06i197506-197701
BROWN,BROWN,TRIM0#,4#
sub73178-12010
main73178-12010-06i197506-197701
AUSTRALIA SPEC,BROWN,BROWN,TRIM0#,4#
sub73178-12010
main73178-12010-11i197701-198107
BLACK,BLACK,TRIM2#,8#
sub73178-12010
main73178-12010-15i197701-198107
BEIGE,BEIGE,TRIM4#
sub73178-12010
73220BELT ASSY, FRONT SEAT OUTER, LH
main73210-12010-01i197408-197701
OUTER,BLACK,BLACK,TRIM0#,2#
main73210-12010-06i197408-197701
OUTER,BROWN,BROWN,TRIM0#,4#
main73210-12020i197604-197701
OUTER
main73210-12020i197501-197604
OUTER,AUSTRALIA SPEC
main73210-12021-01i197701-198107
BLACK,BLACK,TRIM2#,8#
sub73210-12021
main73210-12021-06i197701-198107
LIGHT BROWN,BROWN,TRIM4#
sub73210-12021
main73210-12030i197501-197604
OUTER,AUSTRALIA SPEC
main73210-12030i197604-197701
OUTER
main73210-12060i197501-197604
OUTER,AUSTRALIA SPEC
main73210-12060i197604-197701
OUTER
main73210-12170-01i197701-198107
W/*ELR,BLACK,BLACK,TRIM2#,8#
sub73210-12170
main73210-12170-06i197701-198107
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub73210-12170
main73210-12180-01i197701-198005
W/*ELR,BLACK,BLACK,TRIM2#,8#
sub73210-12180
main73210-12180-06i197701-198005
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub73210-12180
main73210-12190-01i197701-197908
W/*ELR,BLACK,BLACK,TRIM2#,8#
main73210-12190-06i197701-197908
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
main73210-13020i197501-197604
OUTER,AUSTRALIA SPEC
main73210-13020i197604-197701
OUTER
main73210-13040-01i197701-198107
W/*ELR,BLACK,BLACK,TRIM2#,8#
sub73210-13040
main73210-13040-06i197701-198107
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub73210-13040
main73210-13050i197903-197908
KANGOL MADE
main73220-12050-01i197701-198107
TOKAI RIKA,BLACK,BLACK,TRIM2#,8#
sub73220-12050
main73220-12050-06i197701-198107
TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#
sub73220-12050
main73220-12060-01i197701-198107
TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#
sub73220-12060
main73220-12060-06i197701-198107
TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#
sub73220-12060
main73220-12070-01i197701-198004
BLACK,BLACK,TRIM2#,8#
main73220-12070-06i197701-198004
LIGHT BROWN,BROWN,TRIM4#
main73220-12080-01i197701-198107
TOKAI RIKA,BLACK,BLACK,TRIM2#,8#
sub73220-12080
main73220-12080-06i197701-198107
TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#
sub73220-12080
main73220-12120-01i197701-198107
TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#
sub73220-12120
main73220-12120-06i197701-198107
TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#
sub73220-12120
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-12020i197408-197701
INNER
main73230-12040i197501-197604
INNER,AUSTRALIA SPEC
main73230-12040i197604-197701
INNER
main73230-12041-01i197701-198107
BLACK,BLACK,TRIM2#,8#
sub73230-12041
main73230-12041-06i197701-198107
LIGHT BROWN,BROWN,TRIM4#
sub73230-12041
main73230-12050-01i197701-198107
TOKAI RIKA,BLACK,BLACK,TRIM2#,8#
sub73230-12050
main73230-12050-06i197701-198107
TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#
sub73230-12050
main73230-12060-01i197701-198107
TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#
sub73230-12060
main73230-12060-06i197701-198107
TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#
sub73230-12060
main73230-12070-01i197701-198005
W/*ELR,BLACK,BLACK,TRIM2#,8#
sub73230-12070
main73230-12070-06i197701-198005
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub73230-12070
main73230-12080-01i197701-197908
BLACK,BLACK,TRIM2#,8#
sub73230-12080
main73230-12080-06i197701-197908
LIGHT BROWN,BROWN,TRIM4#
sub73230-12080
main73230-13010i197903-197908
KANGOL MADE
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-12020i197408-197701
INNER
main73230-12040i197501-197604
INNER,AUSTRALIA SPEC
main73230-12040i197604-197701
INNER
main73230-12041-01i197701-198107
BLACK,BLACK,TRIM2#,8#
sub73230-12041
main73230-12041-06i197701-198107
LIGHT BROWN,BROWN,TRIM4#
sub73230-12041
main73230-12050-01i197701-198107
TOKAI RIKA,BLACK,BLACK,TRIM2#,8#
sub73230-12050
main73230-12050-06i197701-198107
TOKAI RIKA,LIGHT BROWN,BROWN,TRIM4#
sub73230-12050
main73230-12060-01i197701-198107
TAKATA KOJYO,BLACK,BLACK,TRIM2#,8#
sub73230-12060
main73230-12060-06i197701-198107
TAKATA KOJYO,LIGHT BROWN,BROWN,TRIM4#
sub73230-12060
main73230-12080-01i197701-197908
BLACK,BLACK,TRIM2#,8#
sub73230-12080
main73230-12080-06i197701-197908
LIGHT BROWN,BROWN,TRIM4#
sub73230-12080
main73230-13010i197903-197908
KANGOL MADE
main73240-12020-01i197701-198005
W/*ELR,BLACK,BLACK,TRIM2#,8#
sub73240-12020
main73240-12020-06i197701-198005
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub73240-12020
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-12010-01i197408-197504
BLACK,BLACK,TRIM0#,2#
sub73330-12011
main73330-12010-06i197408-197504
BROWN,BROWN,TRIM0#,4#
sub73330-12011
main73330-12011-01i197504-197701
BLACK,BLACK,TRIM0#,2#
sub73330-12050
main73330-12011-06i197504-197701
BROWN,BROWN,TRIM0#,4#
sub73330-12050
main73330-12050-01i197603-197701
BLACK,BLACK,TRIM0#,2#
sub73330-12050
main73330-12050-06i197603-197701
BROWN,BROWN,TRIM0#,4#
sub73330-12050
main73330-13010-01i197504-197701
BLACK,BLACK,TRIM0#,2#
sub73330-13010
main73330-13010-06i197504-197701
BROWN,BROWN,TRIM0#,4#
sub73330-13010
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73330-12010-01i197408-197504
BLACK,BLACK,TRIM0#,2#
sub73330-12011
main73330-12010-06i197408-197504
BROWN,BROWN,TRIM0#,4#
sub73330-12011
main73330-12011-01i197504-197701
BLACK,BLACK,TRIM0#,2#
sub73330-12050
main73330-12011-06i197504-197701
BROWN,BROWN,TRIM0#,4#
sub73330-12050
main73330-12050-01i197603-197701
BLACK,BLACK,TRIM0#,2#
sub73330-12050
main73330-12050-06i197603-197701
BROWN,BROWN,TRIM0#,4#
sub73330-12050
main73330-13010-01i197504-197701
BLACK,BLACK,TRIM0#,2#
sub73330-13010
main73330-13010-06i197504-197701
BROWN,BROWN,TRIM0#,4#
sub73330-13010

9 parts on this diagram · 7 diagrams in section
