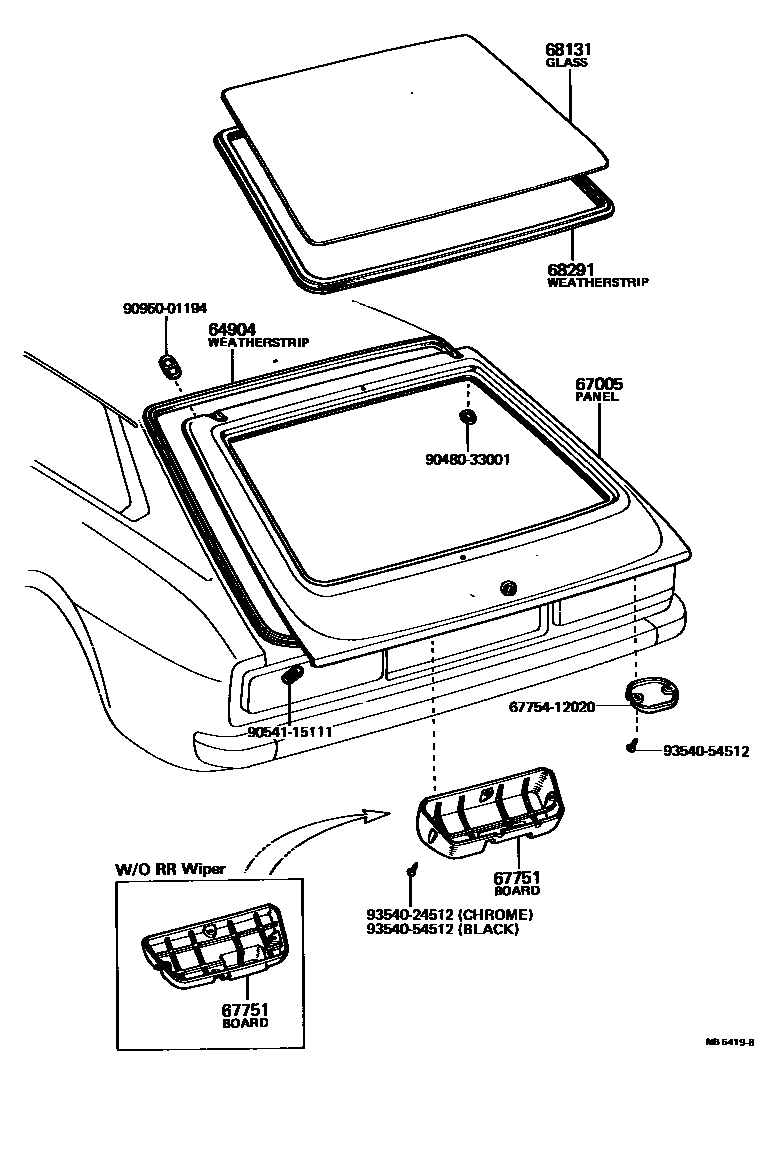

BACK DOOR PANEL & GLASS

0001 1 0002 1

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-12010iKE5#,TE51..LB197603-197908

main67881-13030iKE36,38197408-198107

67005PANEL SUB-ASSY, BACK DOOR

main67005-12010iKE50,TE51197603-197709

sub67005-12060

main67005-12020iTE51197603-197709

W/RR WINDOW WIPER

sub67005-12050

main67005-12050iKE5#,TE51..LB..(ARL,GEN)197709-197908

W/RR WINDOW WIPER

main67005-12060iKE50,TE51..EUR,GEN197709-197908

main67005-13100iKE36..ARL,GEN,SA197408-197609

main67005-13210iKE36..WG197508-198002

W/RR WINDOW WIPER

main67005-13220iKE36,38..RHD;KE36..LHD..GEN;KE36..LHD..EUG197609-198107

main67005-13240iKE36..DLX197609-197808

W/RR WINDOW WIPER

sub67005-13210

67751BOARD, BACK DOOR TRIM

main64780-13010-01iKE36..ARL,GEN,SA197408-197701

BLACK,BLACK,TRIM2#

sub64780-13010

main64780-13010-04iKE36,38..RHD;KE36..LHD..GEN;KE36..LHD..EUG197805-198107

BLUE,BLUE,TRIM8#

sub64780-13010

main64780-13010-06iKE36..ARL,GEN,SA197408-197701

BROWN,BROWN,TRIM4#

sub64780-13010

main64780-13010-08iKE36..ARL,GEN,SA197408-197701

IVORY,IVORY,TRIM0#

sub64780-13010

main64780-13010-11iKE36,38..RHD;KE36..LHD..GEN;KE36..LHD..EUG197701-198107

BLACK,BLACK,TRIM2#

sub64780-13010

main64780-13010-16iKE36,38..RHD;KE36..LHD..GEN;KE36..LHD..EUG197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub64780-13010

main64780-13020-01iKE36..WG..GEN;KE36..DV..LHD;KE36..ARL,EUR,SA197408-197701

W/RR WINDOW WIPER,BLACK,BLACK,TRIM2#

sub64780-13020

main64780-13020-04iKE36197805-198002

W/RR WINDOW WIPER,BLUE,BLUE,TRIM8#

sub64780-13020

main64780-13020-06iKE36..WG..GEN;KE36..DV..LHD;KE36..ARL,EUR,SA197408-197701

W/RR WINDOW WIPER,BROWN,BROWN,TRIM4#

sub64780-13020

main64780-13020-08iKE36..WG..GEN;KE36..DV..LHD;KE36..ARL,EUR,SA197408-197701

W/RR WINDOW WIPER,IVORY,IVORY,TRIM0#

sub64780-13020

main64780-13020-11iKE36..EUR,GEN,SA197701-198002

W/RR WINDOW WIPER,BLACK,BLACK,TRIM2#

sub64780-13020

main64780-13020-16iKE36..EUR,GEN,SA197701-198002

W/RR WINDOW WIPER,LIGHT BROWN,BROWN,TRIM4#

sub64780-13020

main67751-12010-01iKE50,TE51197603-197701

BLACK,BLACK,TRIM2#

sub67751-12010

main67751-12010-04iKE50,TE51197805-197908

BLUE,BLUE,TRIM8#

sub67751-12010

main67751-12010-06iKE50,TE51197603-197701

BROWN,BROWN,TRIM4#

sub67751-12010

main67751-12010-08iKE50,TE51197603-197701

IVORY,IVORY,TRIM0#

sub67751-12010

main67751-12010-11iKE50,TE51..EUR,GEN197701-197908

BLACK,BLACK,TRIM2#

sub67751-12010

main67751-12010-16iKE50,TE51..EUR,GEN197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub67751-12010

main67751-12020-01iTE51197603-197701

W/RR WINDOW WIPER,BLACK,BLACK,TRIM2#

sub67751-12020

main67751-12020-04iKE5#,TE51..LB..(ARL,GEN)197805-197908

W/RR WINDOW WIPER,BLUE,BLUE,TRIM8#

sub67751-12020

main67751-12020-06iTE51197603-197701

W/RR WINDOW WIPER,BROWN,BROWN,TRIM4#

sub67751-12020

main67751-12020-08iTE51197603-197701

W/RR WINDOW WIPER,IVORY,IVORY,TRIM0#

sub67751-12020

main67751-12020-11iKE5#,TE51..LB..(ARL,GEN)197701-197908

W/RR WINDOW WIPER,BLACK,BLACK,TRIM2#

sub67751-12020

main67751-12020-16iKE5#,TE51..LB..(ARL,GEN)197701-197908

W/RR WINDOW WIPER,LIGHT BROWN,BROWN,TRIM4#

sub67751-12020

68131GLASS, BACK DOOR

main68105-12010iKE50,TE51..EUR,GEN197603-197908

*EHTT,T=4.0,66-100W

main68105-12020iKE50,TE51..LHD..EUR197701-197908

*EHTT,T=4.0,200W

main68105-12020iKE50,TE51197603-197701

*EHTT,T=4.0,166-194W

main68105-12030iKE5#..K50..ARL197701-197908

*EHT,T=4.0,200W

sub68105-12010

main68105-13030iKE36..DV..GEN;KE36..WG..(ARL,GEN)197408-198107

*EHT,T=4.0,100W

main68105-13040iKE36..EUR,GEN,SA197408-197908

*EHT,T=4.0,200W

main68131-12030iKE50,TE51..GEN197603-197908

*TT,T=4.0

sub68105-12020

main68131-13090iKE36..EUR,GEN,SA197408-198107

*TEM,T=4.0

sub68105-13030

main68131-13110iKE36..ARL197408-197610

*TEM,T=5.0

sub68131-13090

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-12010iKE5#,TE51..LB197603-197908

main68291-13060iKE36,38197408-198107

6775412020MOULDING, BACK DOOR TRIM

main67754-12020

9048033001

main90480-33001

9054115111

main90541-15111

9095001194

main90950-01194

9354024512

main93540-24512

9354054512

main93540-54512

11 parts on this diagram · 2 diagrams in section
