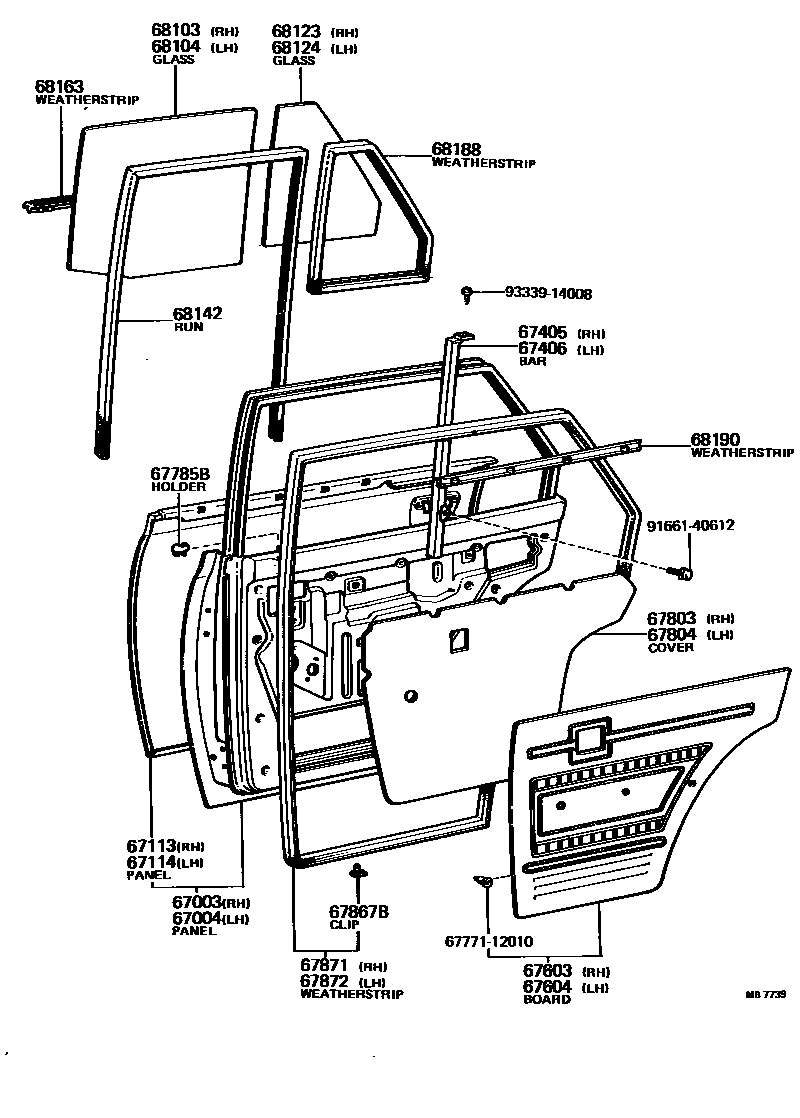

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12090iKE30,TE31..4D¥49,100197408-197512

sub67003-12091¥61,800

sub69751-20050

main67003-12091iKE30,TE31..4D¥61,800197512-197805

sub67003-12H00

main67003-12121iKE30..4D..ARL¥61,800197610-197805

sub67003-12H02

main67003-12130iKE30,TE31..4D197805-198002

main67003-12150iKE55..STD197805-198107

main67003-13030iKE36..4D¥49,100197408-197512

sub67003-13031¥61,800

sub69751-20050

main67003-13031iKE36..4D¥61,800197512-197805

sub67003-13H00

main67003-13051iKE36..4D..ARL¥61,800197610-197805

sub67003-13H01

main67003-13080iKE36..4D¥62,100197805-198107

sub67003-13100

main67003-13100iKE38..4D197805-198107

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12090iKE30,TE31..4D¥49,100197408-197512

sub67004-12091¥61,800

sub69751-20050

main67004-12091iKE30,TE31..4D¥61,800197512-197805

sub67004-12H00

main67004-12121iKE30..4D..ARL¥61,800197610-197805

sub67004-12H02

main67004-12130iKE30,TE31..4D197805-198107

main67004-12150iKE55..STD197805-198107

main67004-13030iKE36..4D¥49,100197408-197512

sub67004-13031¥61,800

sub69751-20050

main67004-13031iKE36..4D¥61,800197512-197805

sub67004-13H00

main67004-13051iKE36..4D..ARL¥61,800197610-197805

sub67004-13H01

main67004-13080iKE36..4D197805-198002

sub67004-13100

main67004-13100iKE38..4D197805-198107

67113PANEL, REAR DOOR, OUTER RH

main67113-12070iKE30,36,38,55,TE31..4D¥25,200197408-198107

67114PANEL, REAR DOOR, OUTER LH

main67114-12070iKE30,36,38,55,TE31..4D¥25,200197408-198107

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12060iKE30,TE31..4D197408-197805

main67407-12061iKE30,55,TE31..4D197805-198107

main67407-13010iKE36..4D197408-197805

main67407-13011iKE36..4D197805-198002

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12060iKE30,TE31..4D197408-197805

main67408-12061iKE30,55,TE31..4D197805-198107

main67408-13010iKE36..4D197408-197805

main67408-13011iKE36..4D197805-198002

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-12102-01iKE30..4D..DLX..EUR197701-198004

FULL TRIM,BLACK,BLACK,TRIM2#

main67630-12102-04iKE30..4D..DLX..EUR197811-197908

FULL TRIM,BLUE,BLUE,TRIM8#

main67630-12102-06iKE30,TE31..4D..SA197701-198004

FULL TRIM,LIGHT BROWN,BROWN,TRIM4#

main67630-12160-01iKE30,36..4D..STD197408-197701

BLACK,BLACK,TRIM2#

main67630-12160-06iKE30,36..4D..STD197408-197701

BROWN,BROWN,TRIM4#

main67630-12160-08iKE30,36..4D..STD197408-197701

IVORY,IVORY,TRIM0#

main67630-12161-01iKE30,36..4D..STD197701-198107

BLACK,BLACK,TRIM2#

main67630-12161-04iKE30,36..4D..STD197805-198107

BLUE,BLUE,TRIM8#

main67630-12161-06iKE30,36..4D..STD197701-198107

LIGHT BROWN,BROWN,TRIM4#

main67630-12170-01iKE30,TE31..4D..DLX197408-197701

BLACK,BLACK,TRIM2#

main67630-12170-06iKE30,TE31..4D..DLX197408-197701

BROWN,BROWN,TRIM4#

main67630-12170-08iKE30,TE31..4D..DLX197408-197701

IVORY,IVORY,TRIM0#

main67630-12171-01iKE30,TE31..4D..DLX197701-198107

BLACK,BLACK,TRIM2#

sub67630-12171¥13,500

main67630-12171-06iKE30,TE31..(2FC,4F,5F)..4D..DLX197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub67630-12171¥13,500

main67630-12171-14iKE30..4D..DLX197805-198107

BLUE,BLUE,TRIM8#

sub67630-12171¥13,500

main67630-13020-01iKE36..4D..DLX197408-197701

BLACK,BLACK,TRIM2#

main67630-13020-06iKE36..4D..DLX197408-197701

BROWN,BROWN,TRIM4#

main67630-13020-08iKE36..4D..DLX197408-197701

IVORY,IVORY,TRIM0#

main67630-13021-01iKE36..4D..DLX197701-198107

BLACK,BLACK,TRIM2#

sub67630-13021¥16,300

main67630-13021-06iKE36..4D..DLX197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub67630-13021¥16,300

main67630-13021-14iKE36..4D..DLX197805-198107

BLUE,BLUE,TRIM8#

sub67630-13021¥16,300

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-12100-01iKE30,36..4D..STD197408-197701

BLACK,BLACK,TRIM2#

main67640-12100-06iKE30,36..4D..STD197408-197701

BROWN,BROWN,TRIM4#

main67640-12100-08iKE30,36..4D..STD197408-197701

IVORY,IVORY,TRIM0#

main67640-12101-01iKE30,36..4D..STD197701-198107

BLACK,BLACK,TRIM2#

main67640-12101-04iKE30,36..4D..STD197805-198107

BLUE,BLUE,TRIM8#

main67640-12101-06iKE30,36..4D..STD197701-198107

LIGHT BROWN,BROWN,TRIM4#

main67640-12110-01iKE30,TE31..4D..DLX197408-197701

BLACK,BLACK,TRIM2#

main67640-12110-06iKE30,TE31..4D..DLX197408-197701

BROWN,BROWN,TRIM4#

main67640-12110-08iKE30,TE31..4D..DLX197408-197701

IVORY,IVORY,TRIM0#

main67640-12111-01iKE30,TE31..4D..DLX197701-198107

BLACK,BLACK,TRIM2#

main67640-12111-06iKE55..STD197701-198107

LIGHT BROWN,BROWN,TRIM4#

main67640-12111-14iKE55..STD197805-198107

BLUE,BLUE,TRIM8#

main67640-12122-01iKE30,TE31..4D..SA197701-198004

FULL TRIM,BLACK,BLACK,TRIM2#

main67640-12122-04iKE30..4D..DLX..EUR197811-197908

FULL TRIM,BLUE,BLUE,TRIM8#

main67640-12122-06iKE30..4D..DLX..EUR197701-198004

FULL TRIM,LIGHT BROWN,BROWN,TRIM4#

main67640-13020-01iKE36..4D..DLX197408-197701

BLACK,BLACK,TRIM2#

main67640-13020-06iKE36..4D..DLX197408-197701

BROWN,BROWN,TRIM4#

main67640-13020-08iKE36..4D..DLX197408-197701

IVORY,IVORY,TRIM0#

main67640-13021-01iKE36..4D..DLX197701-198107

BLACK,BLACK,TRIM2#

sub67640-13021¥16,300

main67640-13021-06iKE36..4D..DLX197701-198107

LIGHT BROWN,BROWN,TRIM4#

sub67640-13021¥16,300

main67640-13021-14iKE36..4D..DLX197805-198107

BLUE,BLUE,TRIM8#

sub67640-13021¥16,300

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-20010iKE30,36,TE31..4D¥400197408-197512

main69751-20030iKE30,36,38,55,TE31..4D¥320197512-198101

sub69751-20031¥330

main69751-20031-01iKE30,38,55..4D198101-198107

BLACK

sub69751-20031¥330

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-12030iKE30,36,38,55,TE31..4D197408-198107

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-12030iKE30,36,38,55,TE31..4D197408-198107

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12020iKE30,36,TE31..4D¥220197408-197702

main67868-30040iKE30,36,38,55,TE31..4D¥110197702-198107

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12060iKE30,TE31..4D¥4,210197408-197702

sub67871-12081¥4,380

main67871-12082iKE30,55,TE31..4D¥5,400197702-198107

main67871-13060iKE36..4D¥4,420197408-197702

sub67871-13061

main67871-13061iKE36,38..4D197702-198107

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12060iKE30,TE31..4D¥4,210197408-197702

sub67872-12081¥4,380

main67872-12082iKE30,55,TE31..4D¥5,400197702-198107

main67872-13050iKE36..4D¥4,420197408-197702

sub67872-13051

main67872-13051iKE36,38..4D197702-198107

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12060iKE30,55..4D..STD¥6,000197408-198107

*TEM,T=4.0

sub68113-12070¥6,700

main68113-12070iKE30..4D..DLX¥6,700197408-198107

*TT,T=4.0

main68113-13040iKE36,38..4D..STD¥6,000197408-198107

*TEM,T=4.0

sub68113-13050¥6,700

main68113-13050iKE36..4D..DLX¥6,700197502-198002

*TT,T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12060iKE30,55..4D..STD¥6,000197408-198107

*TEM,T=4.0

sub68114-12070¥6,700

main68114-12070iKE30..4D..DLX¥6,700197408-198107

*TT,T=4.0

main68114-13040iKE36,38..4D..STD¥6,000197408-198107

*TEM,T=4.0

sub68114-13050¥6,700

main68114-13050iKE36..4D..DLX¥6,700197502-198002

*TT,T=4.0

68123GLASS, REAR DOOR WINDOW, RH

main68123-12070iTE31..4D¥2,840197408-198107

*TEM,T=4.0

sub68123-12080¥3,170

main68123-12080iKE30..4D..DLX¥3,170197408-198107

*TT,T=4.0

main68123-13040iKE36..4D¥2,940197408-198107

*TEM,T=4.0

sub68123-13050¥3,310

main68123-13050iKE36..4D..DLX¥3,310197502-198002

*TT,T=4.0

68124GLASS, REAR DOOR WINDOW, LH

main68124-12070iKE30,55..4D..STD¥2,840197408-198107

*TEM,T=4.0

sub68124-12080¥3,170

main68124-12080iKE30..4D..DLX¥3,170197408-198107

*TT,T=4.0

main68124-13040iKE36..4D¥2,940197408-198107

*TEM,T=4.0

sub68124-13050¥3,310

main68124-13050iKE36..4D..DLX¥3,310197502-198002

*TT,T=4.0

68142RUN, REAR DOOR GLASS

main68142-12030iKE30,36,38,55,TE31..4D¥3,450197408-198107

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-12030iKE36,38..4D¥2,360197408-198107

RH

main68230-12010iTE31..4D¥2,350197408-198107

LH

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12050iKE30,55,TE31..4D¥2,190197408-198107

RH

main68188-13030iKE36,38..4D197408-198107

RH

main68189-12050iKE30,55,TE31..4D¥2,190197408-198107

LH

main68189-13030iKE36,38..4D197408-198107

LH

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-12050iKE30,36,38,55,TE31..4D¥3,420197408-198107

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010¥170

9166140612

main91661-40612¥130

9333914008

main93339-14008¥140

25 parts on this diagram · 1 diagram in section
