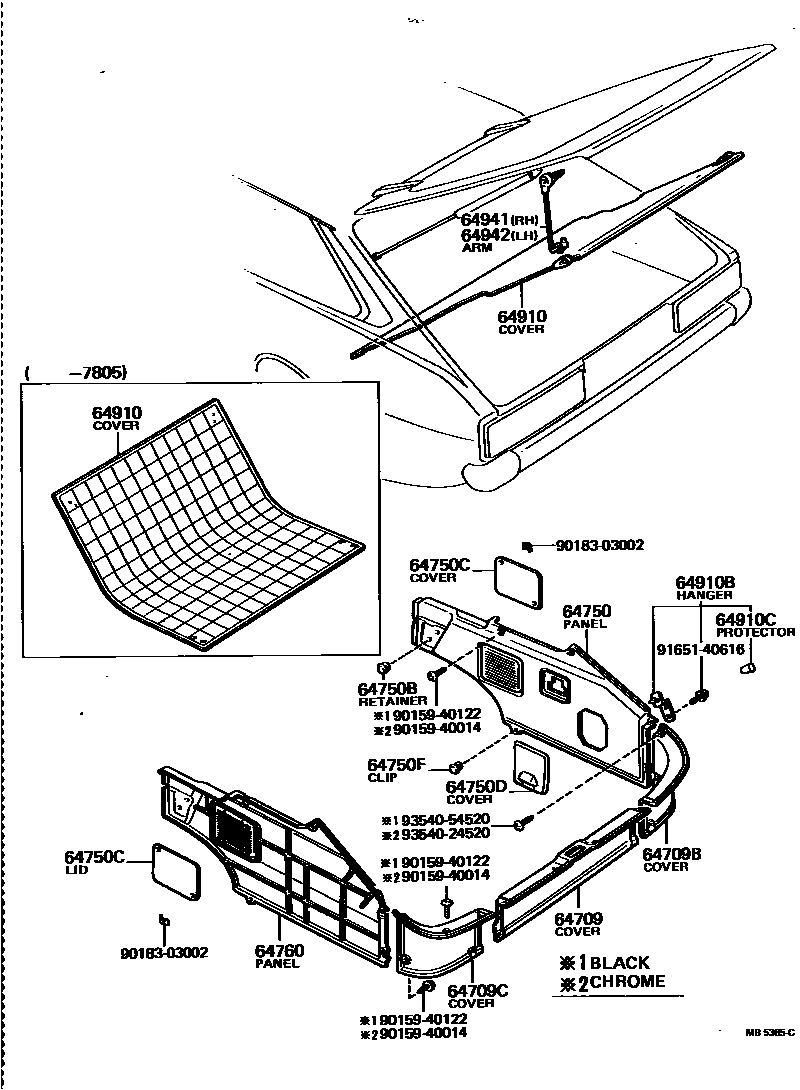

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1 0004 1

64709COVER SUB-ASSY, LOWER BACK PANEL

main62671-12010-01iKE5#,TE51..LB197603-197908

BLACK,BLACK,TRIM2#

main62671-12010-04iKE5#,TE51..LB197805-197908

BLUE,BLUE,TRIM8#

main62671-12010-06iKE50,TE51197603-197605

BROWN,BROWN,TRIM4#

main62671-12010-08iKE50,TE51197603-197701

IVORY,IVORY,TRIM0#

main62671-12010-16iKE50,TE51197605-197701

BROWN,BROWN,TRIM4#

main62671-12010-26iKE5#,TE51..LB197701-197908

LIGHT BROWN,BROWN,TRIM4#

64709BCOVER, SERVICE HOLE, NO.1(FOR LOWER BACK PANEL COVER)

main64745-12010-01iKE50,TE51197603-197701

BLACK,BLACK,TRIM2#

sub64745-12010

main64745-12010-04iKE5#,TE51..LB197805-197908

BLUE,BLUE,TRIM8#

sub64745-12010

main64745-12010-06iKE50,TE51197603-197701

BROWN,BROWN,TRIM4#

sub64745-12010

main64745-12010-08iKE50,TE51197603-197701

IVORY,IVORY,TRIM0#

sub64745-12010

main64745-12010-11iKE5#,TE51..LB197701-197908

BLACK,BLACK,TRIM2#

sub64745-12010

main64745-12010-16iKE5#,TE51..LB197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub64745-12010

64709CCOVER, SERVICE HOLE, NO.2(FOR LOWER BACK PANEL COVER)

main64746-12010-01iKE50,TE51197603-197701

BLACK,BLACK,TRIM2#

sub64746-12010

main64746-12010-04iKE5#,TE51..LB197805-197908

BLUE,BLUE,TRIM8#

sub64746-12010

main64746-12010-06iKE50,TE51197603-197701

BROWN,BROWN,TRIM4#

sub64746-12010

main64746-12010-08iKE50,TE51197603-197701

IVORY,IVORY,TRIM0#

sub64746-12010

main64746-12010-11iKE5#,TE51..LB197701-197908

BLACK,BLACK,TRIM2#

sub64746-12010

main64746-12010-16iKE5#,TE51..LB197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub64746-12010

64750PANEL ASSY, DECK SIDE TRIM, RH

main64714-12010-01iKE50197603-197701

BLACK,BLACK,TRIM2#

sub64714-12010

main64714-12010-04iKE50..GEN197805-197908

BLUE,BLUE,TRIM8#

sub64714-12010

main64714-12010-06iKE50197603-197701

BROWN,BROWN,TRIM4#

sub64714-12010

main64714-12010-08iKE50197603-197701

IVORY,IVORY,TRIM0#

sub64714-12010

main64714-12010-11iKE50197701-197908

BLACK,BLACK,TRIM2#

sub64714-12010

main64714-12010-16iKE50197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub64714-12010

main64714-12020-01iTE51197603-197701

W/O WASHER,RR ROOM LAMP,BLACK,BLACK,TRIM2#

sub64714-12020

main64714-12020-04iTE51197805-197908

W/O WASHER,RR ROOM LAMP,BLUE,BLUE,TRIM8#

sub64714-12020

main64714-12020-06iTE51197603-197701

W/O WASHER,RR ROOM LAMP,BROWN,BROWN,TRIM4#

sub64714-12020

main64714-12020-08iTE51197603-197701

W/O WASHER,RR ROOM LAMP,IVORY,IVORY,TRIM0#

sub64714-12020

main64714-12020-11iTE51197701-197908

W/O WASHER,RR ROOM LAMP,BLACK,BLACK,TRIM2#

sub64714-12020

main64714-12020-16iTE51197701-197908

W/O WASHER,RR ROOMLAMP,L-BROWN,BROWN,TRIM4#

sub64714-12020

main64714-12030-01iTE51197603-197605

W/WASHER,W/O RR ROOMLAMP,BLACK,BLACK,TRIM2#

sub64714-12030

main64714-12030-06iTE51197603-197605

W/WASHER,W/O RR ROOMLAMP,BROWN,BROWN,TRIM4#

sub64714-12030

main64714-12030-08iTE51197603-197605

W/WASHER,W/O RR ROOMLAMP,IVORY,IVORY,TRIM0#

sub64714-12030

main64714-12050-01iTE51197603-197701

W/WASHER,RR ROOM LAMP,BLACK,BLACK,TRIM2#

sub64714-12050

main64714-12050-04iTE51197805-197908

W/WASHER,RR ROOM LAMP,BLUE,BLUE,TRIM8#

sub64714-12050

main64714-12050-06iTE51197603-197701

W/WASHER,RR ROOM LAMP,BROWN,BROWN,TRIM4#

sub64714-12050

main64714-12050-08iTE51197603-197701

W/WASHER,RR ROOM LAMP,IVORY,IVORY,TRIM0#

sub64714-12050

main64714-12050-11iTE51197701-197908

W/WASHER,RR ROOM LAMP,BLACK,BLACK,TRIM2#

sub64714-12050

main64714-12050-16iTE51197701-197908

W/WASHER,RR ROOM LAMP,L-BROWN,BROWN,TRIM4#

sub64714-12050

main64714-12060-01iTE51197605-197701

W/O WASHER,W/RR ROOMLAMP,BLACK,BLACK,TRIM2#

sub64714-12060

main64714-12060-04iTE51197805-197908

W/O WASHER,W/RR ROOMLAMP,BLUE,BLUE,TRIM8#

sub64714-12060

main64714-12060-06iTE51197605-197701

W/O WASHER,W/RR ROOMLAMP,BROWN,BROWN,TRIM4#

sub64714-12060

main64714-12060-08iTE51197605-197701

W/O WASHER,W/RR ROOMLAMP,IVORY,IVORY,TRIM0#

sub64714-12060

main64714-12060-11iTE51197701-197908

W/O WASHER,W/RR ROOMLAMP,BLACK,BLACK,TRIM2#

sub64714-12060

main64714-12060-16iTE51197701-197908

W/O WASHER,W/RR LAMP,L-BROWN,BROWN,TRIM4#

sub64714-12060

main64714-12070-04iKE5#..LB..(ARL,GEN)197805-197908

W/WASHER,BLUE,BLUE,TRIM8#

sub64714-12070

main64714-12070-11iKE50..EUR,GEN197701-197908

W/WASHER,BLACK,BLACK,TRIM2#

sub64714-12070

main64714-12070-16iKE50..EUR,GEN197701-197908

W/WASHER,LIGHT BROWN,BROWN,TRIM4#

sub64714-12070

main64714-12080-01iKE50..SDN197805-197908

BLACK,BLACK,TRIM2#

main64714-12080-04iKE50..SDN197805-197908

BLUE,BLUE,TRIM8#

main64714-12080-06iKE50..SDN197805-197908

LIGHT BROWN,BROWN,TRIM4#

64750BRETAINER(FOR DECK SIDE TRIM PANEL)

main90467-06143-01iKE50197603-197701

BLACK,BLACK,TRIM2#

sub90467-06143

main90467-06143-04iKE50197805-197908

BLUE,BLUE,TRIM8#

sub90467-06143

main90467-06143-06iKE50197603-197701

BROWN,BROWN,TRIM4#

sub90467-06143

main90467-06143-08iKE50197603-197701

IVORY,IVORY,TRIM0#

sub90467-06143

main90467-06143-11iKE50197701-197908

BLACK,BLACK,TRIM2#

sub90467-06143

main90467-06143-16iKE50197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub90467-06143

64750CLID, DECK SIDE TRIM, SPEAKER GRILLE

main64795-12010iKE5#,TE51..LB197603-197908

64750DCOVER, DECK SIDE TRIM, WASHER

main64739-12010-01iTE51197603-197701

BLACK,BLACK,TRIM2#

sub64739-12010

main64739-12010-04iKE5#,TE51..LB..(ARL,GEN)197805-197908

BLUE,BLUE,TRIM8#

sub64739-12010

main64739-12010-06iTE51197603-197701

BROWN,BROWN,TRIM4#

sub64739-12010

main64739-12010-08iTE51197603-197701

IVORY,IVORY,TRIM0#

sub64739-12010

main64739-12010-11iKE5#,TE51..LB..(ARL,GEN)197701-197908

BLACK,BLACK,TRIM2#

sub64739-12010

main64739-12010-16iKE5#,TE51..LB..(ARL,GEN)197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub64739-12010

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-09069-01iKE50,TE51197603-197908

BLACK,BLACK,TRIM2#

sub90467-09069

main90467-09069-08iKE50,TE51197603-197701

IVORY,IVORY,TRIM0#

sub90467-09069

main90467-09069-16iKE50,TE51197603-197701

BROWN,BROWN,TRIM4#

sub90467-09069

main90467-09069-24iKE50,TE51197805-197908

BLUE,BLUE,TRIM8#

sub90467-09069

main90467-09069-26iKE50,TE51197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub90467-09069

64760PANEL ASSY, DECK SIDE TRIM, LH

main64715-12010-01iKE50197603-197701

BLACK,BLACK,TRIM2#

sub64715-12010

main64715-12010-04iKE5#..LB..(ARL,GEN)197805-197908

BLUE,BLUE,TRIM8#

sub64715-12010

main64715-12010-06iKE50197603-197701

BROWN,BROWN,TRIM4#

sub64715-12010

main64715-12010-08iKE50197603-197701

IVORY,IVORY,TRIM0#

sub64715-12010

main64715-12010-11iKE5#..LB..(ARL,GEN)197701-197908

BLACK,BLACK,TRIM2#

sub64715-12010

main64715-12010-16iKE5#..LB..(ARL,GEN)197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub64715-12010

main64715-12020-01iTE51197603-197701

BLACK,BLACK,TRIM2#

sub64715-12020

main64715-12020-04iTE51197805-197908

BLUE,BLUE,TRIM8#

sub64715-12020

main64715-12020-06iTE51197603-197701

BROWN,BROWN,TRIM4#

sub64715-12020

main64715-12020-08iTE51197608-197701

IVORY,IVORY,TRIM0#

sub64715-12020

main64715-12020-11iTE51197701-197908

BLACK,BLACK,TRIM2#

sub64715-12020

main64715-12020-16iTE51197701-197908

LIGHT BROWN,BROWN,TRIM4#

sub64715-12020

main64715-12030-01iKE50..SDN197805-197908

BLACK,BLACK,TRIM2#

sub64715-12030

main64715-12030-04iKE50..SDN197805-197908

BLUE,BLUE,TRIM8#

sub64715-12030

main64715-12030-06iKE50..SDN197805-197908

LIGHT BROWN,BROWN,TRIM4#

sub64715-12030

64910COVER ASSY, PARCEL

main64902-12010iKE50,TE51197603-197701

sub64902-12030

main64902-12030-01iKE50,TE51197701-197805

BLACK,BLACK,TRIM2#

main64902-12030-06iKE50,TE51197701-197805

LIGHT BROWN,BROWN,TRIM4#

main64902-12040-01iKE5#,TE51..LB197805-197908

BLACK,BLACK,TRIM2#

main64902-12040-04iKE5#,TE51..LB197805-197908

BLUE,BLUE,TRIM8#

main64902-12040-06iKE5#,TE51..LB197805-197908

LIGHT BROWN,BROWN,TRIM4#

64910BHANGER, PARCEL COVER

main64903-12010iKE50,TE51197603-197805

RH

main64904-12010iKE50,TE51197603-197805

LH

64910CPROTECTOR, PARCEL COVER HANGER

main64934-12010iKE50,TE51197603-197805

64941ARM SUB-ASSY, TONNEAU COVER LIFT, RH

main64905-12010iKE5#,TE51..LB197805-197908

64942ARM SUB-ASSY, TONNEAU COVER LIFT, LH

main64906-12010iKE5#,TE51..LB197805-197908

9015940014

main90159-40014

9015940122

main90159-40122

9018303002

main90183-03002

9165140616

main91651-40616

9354024520

main93540-24520

9354054520

main93540-54520

20 parts on this diagram · 4 diagrams in section
