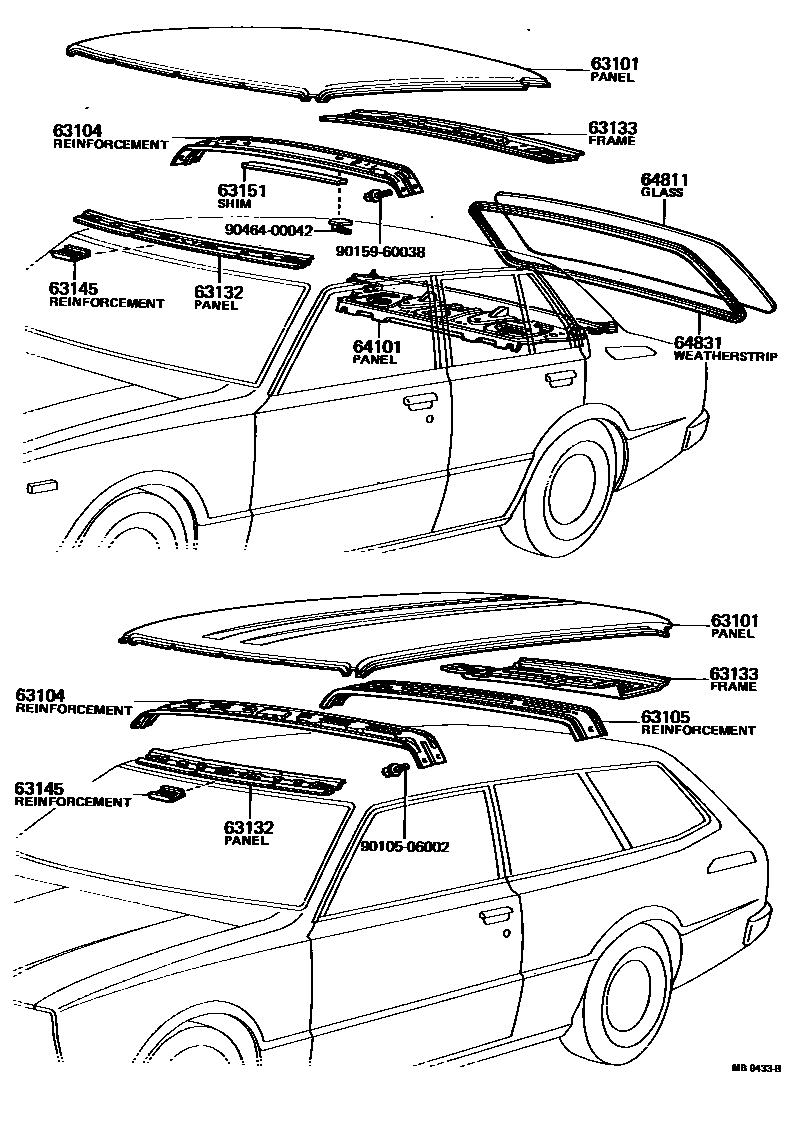

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63101PANEL SUB-ASSY, ROOF

main63111-12070iKE30,55,TE31..SED197408-198107

main63111-12080iKE35,55,TE37..HT197408-198107

main63111-12090iTE47197408-197902

main63111-12110iKE5#,TE51..LB197603-197908

main63111-13040iKE36,38197408-198107

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-12040iTE47197408-197902

main63103-12050iKE50,TE51197603-197604

main63141-12010iKE30,55,TE31..SED197408-198107

main63141-12020iKE35,55,TE37..HT197408-198107

main63141-12050iKE5#,TE51..LB197604-197908

main63141-13010iKE36197408-197508

sub63141-13020

main63141-13020iKE36,38197508-198107

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63142-13010iKE36197408-197508

sub63142-13020

main63142-13020iKE36,38197508-198107

63132PANEL, WINDSHIELD HEADER, INNER

main63132-12050iKE30,36,55,TE31..DV,HT,SED,WG197408-198107

main63132-12060iKE5#,TE47,51..CP,LB197408-197908

main63132-12070iKE35,55,TE37..HT197408-198107

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-12050iKE30,55,TE31..SED197408-198107

main63133-12060iKE35,55,TE37..HT197408-198107

main63133-12070iTE47197408-197902

main63133-12090iKE5#,TE51..LB197603-197908

main63134-13010iKE36,38197408-198107

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-12010iKE3#,5#,TE3#,47,51197408-198107

63151SHIM, ROOF REINFORCEMENT

main63153-12010iKE30,36,50,TE3#,47,51197408-198107

64101PANEL SUB-ASSY, UPPER BACK

main64101-12090iKE30,TE31197408-197604

main64101-12100iKE35,TE37197408-197604

sub64101-12140

main64101-12110iTE47197408-197609

sub64101-12111

sub64531-12101

sub64532-12101

main64101-12111iTE47197609-197805

main64101-12112iTE47197805-197902

main64101-12130iKE30,TE31197604-197608

sub64101-12131

sub64531-12071

sub64532-12071

main64101-12131iKE30,55,TE31..SED197608-198107

main64101-12140iKE35,TE37197604-197608

sub64101-12141

sub64531-12061

sub64532-12061

main64101-12141iKE35,55,TE37..HT197608-198107

64811GLASS, BACK WINDOW

main64801-12060iKE30..4D..DLX;KE30..RHD..2D..DLX;KE30..LHD..2D..DLX..GEN;KE30..LHD..2D..DLX..EUG197408-198107

*EHTT,T=4.0,100W

main64801-12070iKE35..EUR,GEN197408-197908

*EHTT,T=4.0,100W

sub64801-12150

main64801-12080iTE47197408-197902

*EHTT,T=4.0,100W

main64801-12090iKE35,55..HT..ARL197610-198107

*EHT,T=4.0

sub64801-12150

main64801-12120iTE3#197408-198107

*EHT,T=4.0,100W

sub64801-12060

main64801-12130iKE30..STD..EUR197408-197908

*EHT,T=4.0,200W

sub64801-12140

main64801-12140iKE30..LHD..DLX197408-197908

*EHTT,T=4.0,200W

main64801-12150iKE35..LHD..EUR197408-197908

*EHTT,T=4.0,200W

main64801-12160iTE47..LHD197408-197902

*EHTT,T=4.0,200W

main64811-12200iKE30..STD..EUG;KE30..STD..(ARL,GEN)197408-198107

*TEM,T=4.0

sub64811-12210

main64811-12210iKE30..ARL,GEN197408-198107

*TT,T=4.0

sub64801-12060

main64811-12230iKE35..GEN197408-197908

*TT,T=4.0

sub64801-12150

main64811-12250iTE47..GEN197603-197902

*TT,T=4.0

sub64801-12080

main64811-12270iTE37197503-198004

*TEM,T=4.0

sub64801-12150

main64811-12350iKE30..ARL197408-197608

*TEM,T=5.0

sub64811-12200

main64811-12360iKE35..RHD197408-197604

*TEM,T=5.0,AUSTRALIA SPEC

sub64811-12270

main64811-12360iKE35..ARL197604-197610

*TEM,T=5.0

sub64811-12270

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-12100iKE30..EUR,GEN197408-197701

W/O MOULDING

main64812-12110iKE30,55,TE31..SED197408-198107

main64812-12120iKE35,55,TE37..HT197408-198107

main64812-12140iTE47197408-197902

9010506002

main90105-06002

9015960038

main90159-60038

9046400042

main90464-00042

13 parts on this diagram · 2 diagrams in section
